REAR CALIPER (GSF1250SAL1 E24)

REAR BRAKE MASTER CYLINDER (GSF1250SL1 E21) FOR SUZUKI BANDIT 1250 2012

REAR BRAKE MASTER CYLINDER (GSF1250SL1 E24)

Item numbers

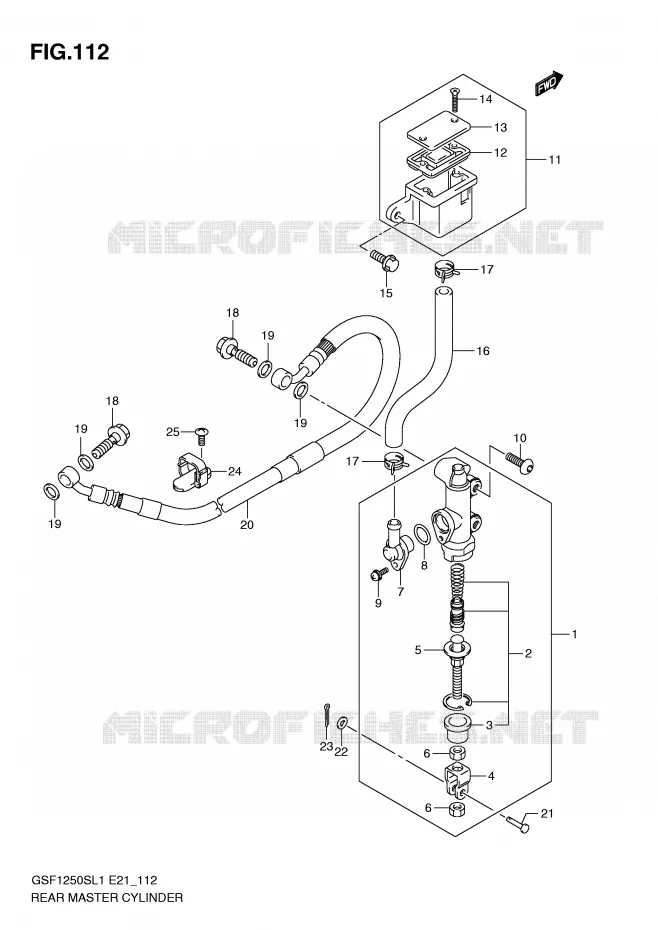

REAR BRAKE MASTER CYLINDER (GSF1250SL1 E21) Suzuki MOTO 1250 BANDIT 2012 GSF1250SAL1(E21)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
19
19
20
21
22
23
24
25
1
CYLINDER ASSY, RR MASTER
CYLINDER ASSY, REAR MASTER

69600-17C20-000   6960017C20000

6960017C20000

Unit Price

2
PISTON/CUP SET

69600-34820-000  

69600-34821-000
 6960034820000

Unit Price

3
BOOT
BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
YOKE

69692-44H00-000   6969244H00000

6969244H00000

Unit Price

5
ROD, PUSH
ROD, PUSH

69670-48B00-000   6967048B00000

6967048B00000

Unit Price

6
NUT
NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

7
CONNECTOR
CONNECTOR

69672-05A00-000   6967205A00000

6967205A00000

Unit Price

8
O RING CONECTOR<br />O RING
O RING CONECTOR
O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
SCREW
SCREW

02112-7412A-000  

02112-0412A-000
 021127412A000

Unit Price

10
BOLT, FR FOOTREST BRK
BOLT (8X20)

09106-08167-000   0910608167000

0910608167000

Unit Price

11
TANK ASSY,RESERVOIR<br />TANK ASSY, REAR RESERVOIR
TANK ASSY, RESERVOIR
TANK ASSY, REAR RESERVOIR

69740-38B21-000   6974038B21000

6974038B21000

Unit Price

12
DIAPHRAGM
DIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

13
CAP
CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

14
SCREW
SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

15
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

16
HOSE, REAR RESERVOIR
HOSE, RESERVOIR TANK

69731-31F00-000   6973131F00000

6973131F00000

Unit Price

17
CLIP
CLIP

09401-13417-000   0940113417000

0940113417000

Unit Price

18
BOLT, BRAKE FLUID<br />UNION
BOLT, BRAKE FLUID
UNION

09360-10062-000   0936010062000

0936010062000

Unit Price

19
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

20
HOSE, RR BRAKE

69480-18H00-000  

69480-18H01-000
 6948018H00000

Unit Price

21
PIN
PIN

09200-06068-000   0920006068000

0920006068000

Unit Price

22
WASHER
WASHER

08322-0106A-000   083220106A000

083220106A000

Unit Price

23
PIN<br />COTTER PIN
PIN
COTTER PIN

04111-2015A-000   041112015A000

041112015A000

Unit Price

24
GUIDE, RR BRAKE HOSE

61196-44H00-000   6119644H00000

6119644H00000

Unit Price

25
SCREW
SCREW

02142-0616A-000   021420616A000

021420616A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER (GSF1250SL1 E21) of your Suzuki of BANDIT. Let us know if you have any questions.
