ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI BANDIT 1250 2015

TRANSMISSION

Item numbers

GEAR ASSY, PRIMARY DRIVEN (NT:83)

21200-18820-000 2120018820000

Not available

SPACER, OIL PUMP DRIVE SPROCKET
SPACER, OIL PUMP DRIVE

21253-01H10-000 2125301H10000

$40,97

Unit Price

WASHER (25X54X2.4)

09160-25073-000 0916025073000

$20,97

Unit Price

WASHER (25X30X3)

09160-25036-000 0916025036000

$8,97

Unit Price

BEARING
BEARING (35X40X26.8)

09263-35015-000 0926335015000

$23,97

Unit Price

BEARING (35X40X12)

09263-35045-000 0926335045000

$22,97

Unit Price

HUB, CLUTCH SLEEVE

21410-18H00-000 2141018H00000

$145,97

Unit Price

BOLT, CLUTCH SPRING

21412-18H00-000 2141218H00000

$5,97

Unit Price

SPRING, CLUTCH

21413-18H00-000 2141318H00000

$18,97

Unit Price

WASHER
WASHER, CLUTCH SPRING

21414-29F00-000 2141429F00000

$9,97

Unit Price

PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE NO.1 (T:3.8)

21441-24F40-000 2144124F40000

$39,97

Unit Price

PLATE, CLUTCH DRIVE NO.3
PLATE, CLUTCH DRIVE NO.2 (T:3.8)

21442-24F00-000 2144224F00000

$40,97

Unit Price

PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE NO.3 (T:3.8)

21441-24F10-000 2144124F10000

$32,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1 (T:2.0)

21451-24F00-000 2145124F00000

$16,97

Unit Price

PLATE, CLUTCH DRIVEN NO.4(T:2.3
PLATE, CLUTCH DRIVEN NO.2 (T:2.3)

21451-24F10-000 2145124F10000

$18,97

Unit Price

DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-18H00-000 2146218H00000

$80,97

Unit Price

SEAT, WAVE WASHER

21471-24F00-000 2147124F00000

$17,97

Unit Price

WASHER, CLUTCH PLATE WAVE

21472-24F00-000 2147224F00000

$17,97

Unit Price

WASHER SLEEVE HUB
WASHER (25X50X2.5)

09160-25056-000 0916025056000

$20,97

Unit Price

NUT

09159-24010-000 0915924010000

$22,97

Unit Price

SHIM, 25X38X1.0
SHIM (25X38X1)

09181-25223-000 0918125223000

$5,97

Unit Price

WASHER

09164-24008-000 0916424008000

$6,97

Unit Price

ROD, CLUTCH PUSH RH

23110-18H00-000 2311018H00000

Not available

ROD, CLUTCH PUSH, L(L:138)
ROD, CLUTCH PUSH LH

23111-42F00-000 2311142F00000

$24,97

Unit Price

PIECE, CLUTCH PUSH

23121-31E20-000 2312131E20000

$51,97

Unit Price

WASHER
WASHER (15.5X28X1)

09160-15045-000 0916015045000

$6,97

Unit Price

BEARING (15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

SEAL, OIL, 6X52X1
OIL SEAL (6X52X10)

09283-06011-000 0928306011000

$35,97

Unit Price

CYLINDER, CLUTCH RELEASE

23160-18H11-000 2316018H11000

$156,97

Unit Price

CUP, CLUTCH CYLINDER
.CUP

23163-05A00-000 2316305A00000

$14,97

Unit Price

SPRING, CLUTCH CYLINDER
.SPRING

23164-05A00-000 2316405A00000

$6,97

Unit Price

.BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

.CAP, BLEEDER

59122-01A00-000 5912201A00000

$6,97

Unit Price

9 X 12 DOWEL PIN
PIN

04211-09129-000 0421109129000

$2,97

Unit Price

BOLT, CL COVER
BOLT (6X30)

09103-06251-000 0910306251000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

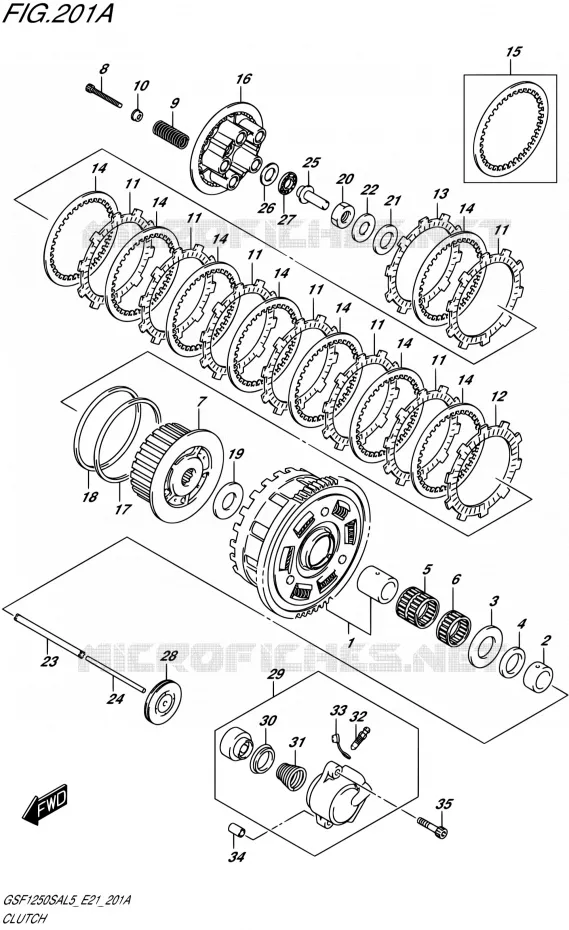

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki GSF 1250 BANDIT S ABS of BANDIT. Let us know if you have any questions.
