Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

FRONT FORK FOR SUZUKI BANDIT 1250 2015

STEERING COLUMN

Item numbers

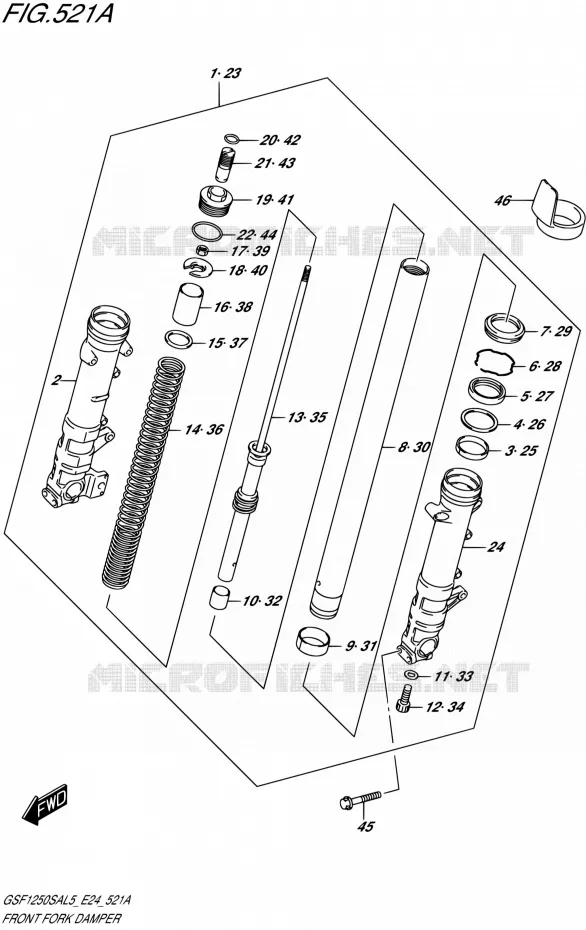

FRONT FORK Suzuki MOTO 1250 BANDIT 2015 GSF1250SA L5 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
DAMPER ASSY, FRONT FORK RH

51103-07J30-000   5110307J30000

5110307J30000
Not available
2
TUBE, OUTER, R
.TUBE, OUTER

51131-07J00-000   5113107J00000

5113107J00000

Unit Price

3
.BUSH, GUIDE

51152-03F00-000   5115203F00000

5115203F00000

Unit Price

4
.SPACER, SEAL
.SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

5
SEAL, OIL
.OIL SEAL

51153-27G00-000   5115327G00000

5115327G00000

Unit Price

6
CIRCLIP,FORK OIL SEAL<br />.RING, STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

7
.SEAL, DUST

51173-27G00-000   5117327G00000

5117327G00000

Unit Price

8
.TUBE, INNER

51110-49G00-000   5111049G00000

5111049G00000

Unit Price

9
.BUSH, SLIDE
.BUSH, SLIDE

51121-13E00-000   5112113E00000

5112113E00000

Unit Price

10
.PIECE, OIL LOCK
.PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

11
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

12
BOLT(8X27)<br />.BOLT
BOLT(8X27)
.BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

13
ROD, FR DAMPER
.ROD, DAMPER

52110-49G80-000   5211049G80000

5211049G80000

Unit Price

14
SPRING, FR
.SPRING, FRONT

51171-49G70-000   5117149G70000

5117149G70000

Unit Price

15
SEAT,SPRING LWR<br />.SEAT, SPRING LOWER
SEAT, SPRING LWR
.SEAT, SPRING LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

16
COLLAR,SPRING(32.9X34X50)<br />.COLLAR, SPRING
COLLAR, SPRING(32.9X34X50)
.COLLAR, SPRING

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

17
.NUT
.NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

18
SEAT,SPRING UPR<br />.SEAT, SPRING UPPER
SEAT, SPRING UPR
.SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

19
.BOLT, FORK
.BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

20
O RING, 02.5, ID:13.8

51834-17C00-000  

09280-14011-000
 5183417C00000

Unit Price

21
.ADJUSTER, SPRING
.ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

22
.O RING
.O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

23
DAMPER ASSY, FRONT FORK LH

51104-07J30-000   5110407J30000

5110407J30000
Not available
24
TUBE, OUTER, L
.TUBE, OUTER

51141-07J00-000   5114107J00000

5114107J00000

Unit Price

25
.BUSH, GUIDE

51152-03F00-000   5115203F00000

5115203F00000

Unit Price

26
.SPACER, SEAL
.SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

27
SEAL, OIL
.OIL SEAL

51153-27G00-000   5115327G00000

5115327G00000

Unit Price

28
CIRCLIP,FORK OIL SEAL<br />.RING, STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

29
.SEAL, DUST

51173-27G00-000   5117327G00000

5117327G00000

Unit Price

30
.TUBE, INNER

51110-49G00-000   5111049G00000

5111049G00000

Unit Price

31
.BUSH, SLIDE
.BUSH, SLIDE

51121-13E00-000   5112113E00000

5112113E00000

Unit Price

32
.PIECE, OIL LOCK
.PIECE, OIL LOCK

51195-31E00-000   5119531E00000

5119531E00000

Unit Price

33
GASKET

51148-31030-000  

51148-36011-000
 5114831030000

Unit Price

34
BOLT(8X27)<br />.BOLT
BOLT(8X27)
.BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

35
ROD, FR DAMPER
.ROD, DAMPER

52110-49G80-000   5211049G80000

5211049G80000

Unit Price

36
SPRING, FR
.SPRING, FRONT

51171-49G70-000   5117149G70000

5117149G70000

Unit Price

37
SEAT,SPRING LWR<br />.SEAT, SPRING LOWER
SEAT, SPRING LWR
.SEAT, SPRING LOWER

51186-17C00-000   5118617C00000

5118617C00000

Unit Price

38
COLLAR,SPRING(32.9X34X50)<br />.COLLAR, SPRING
COLLAR, SPRING(32.9X34X50)
.COLLAR, SPRING

51176-12C10-000   5117612C10000

5117612C10000

Unit Price

39
.NUT
.NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

40
SEAT,SPRING UPR<br />.SEAT, SPRING UPPER
SEAT, SPRING UPR
.SEAT, SPRING UPPER

51172-17C00-000   5117217C00000

5117217C00000

Unit Price

41
.BOLT, FORK
.BOLT, FORK

51189-14D00-000   5118914D00000

5118914D00000

Unit Price

42
O RING, 02.5, ID:13.8

51834-17C00-000  

09280-14011-000
 5183417C00000

Unit Price

43
.ADJUSTER, SPRING
.ADJUSTER, SPRING

51185-31E00-000   5118531E00000

5118531E00000

Unit Price

44
.O RING
.O RING

51117-17C00-000   5111717C00000

5111717C00000

Unit Price

45
BOLT, OUTER TUBE
BOLT

51166-27E30-000   5116627E30000

5116627E30000

Unit Price

46
PROTECTOR

51201-32F00-000   5120132F00000

5120132F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of BANDIT. Let us know if you have any questions.
