HANDGRIPS - LEVERS

SWINGARM FOR SUZUKI GSX-F 1250 2015

FRONT FORK

Item numbers

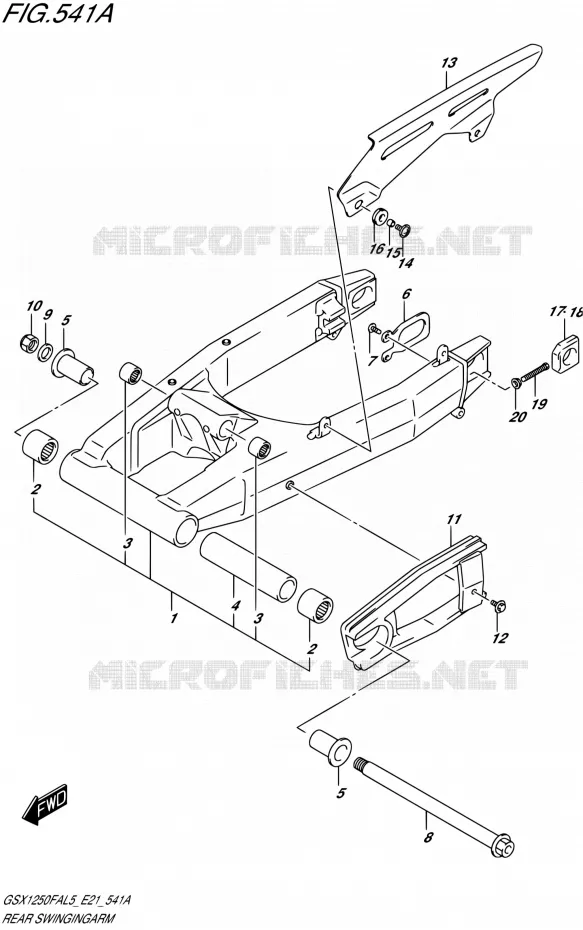

SWINGARM Suzuki MOTO 1250 GSX-F 2015 GSX1250FA L5 (E21)
1
2
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
DISCONTINUE
SWINGING ARM ASSY, REAR

61000-49G00-000   6100049G00000

6100049G00000
Not available
2
BEARING
BEARING

09263-25059-000  

09263-25073-000
 0926325059000

Unit Price

3
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

4
SPACER,RR SWGARM PIVOT CTR<br />.SPACER
SPACER, RR SWGARM PIVOT CTR
.SPACER

61282-31E00-000   6128231E00000

6128231E00000

Unit Price

5
SPACER,PIVOT BEARING<br />SPACER, BEARING
SPACER, PIVOT BEARING
SPACER, BEARING

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

6
PLATE,RR SWING ARM BRKT<br />PLATE, RR SWGARM BRACKET
PLATE, RR SWING ARM BRKT
PLATE, RR SWGARM BRACKET

61124-33E00-000   6112433E00000

6112433E00000

Unit Price

7
SCREW

02142-0616B-000   021420616B000

021420616B000

Unit Price

8
SHAFT,RR SWINGINGARM PIVOT<br />SHAFT, PIVOT
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-31E00-000   6121131E00000

6121131E00000

Unit Price

9
WASHER (18.5X28X2.6)
WASHER (18.5X28X2.6)

09160-18030-000   0916018030000

0916018030000

Unit Price

10
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

11
BUFFER, CHAIN TOUCH D

61273-49G10-000  

61273-49G11-000
 6127349G10000

Unit Price

12
BOLT
BOLT (6X17.8)

09111-06072-000   0911106072000

0911106072000

Unit Price

13
CASE, CHAIN

61311-27E20-000   6131127E20000

6131127E20000

Unit Price

14
SCREW (6X16)
SCREW (6X16)

09136-06017-000   0913606017000

0913606017000

Unit Price

15
SPACER (6.2X8.3X6.1)
SPACER (6.2X8.3X6.1)

09180-06092-000   0918006092000

0918006092000

Unit Price

16
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

17
ADJUSTER,CHAIN LH<br />ADJUSTER, CHAIN RH
ADJUSTER, CHAIN LH
ADJUSTER, CHAIN RH

61445-40F00-000   6144540F00000

6144540F00000

Unit Price

18
ADJUSTER,CHAIN RH<br />ADJUSTER, CHAIN LH
ADJUSTER, CHAIN RH
ADJUSTER, CHAIN LH

61446-40F00-000   6144640F00000

6144640F00000

Unit Price

19
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

20
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
