CAMSHAFT / VALVE

TIMING FOR SUZUKI B-KING 1300 2010

THROTTLE BODY

Item numbers

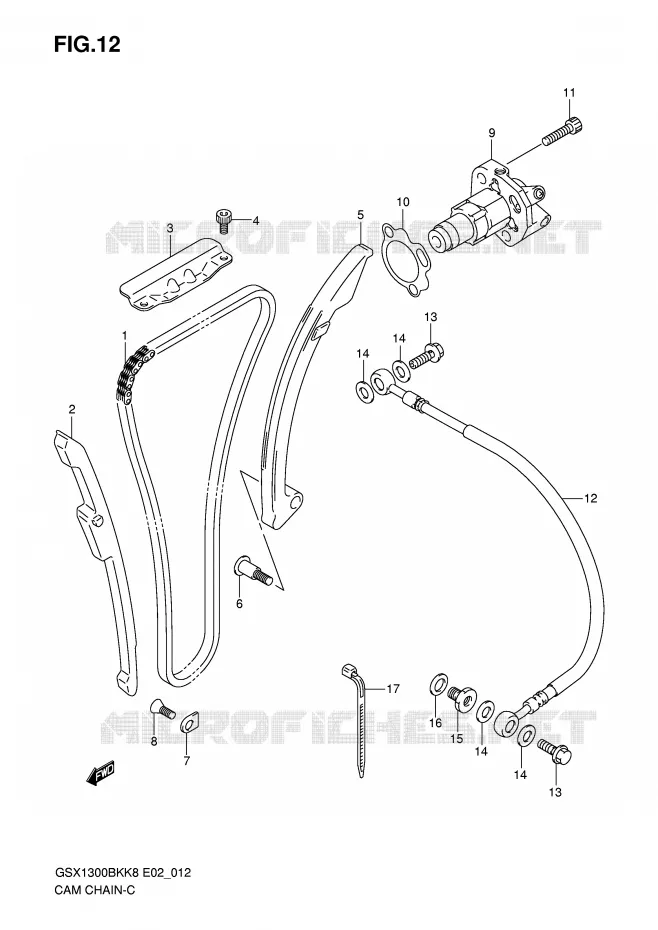

TIMING Suzuki MOTO 1300 B-KING 2010 GSX1300BKL0(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
16
17
1
CHAIN, CAMSHAFT DRIVE
CHAIN, CAM SHAFT DRIVE (128LE)

12760-24F01-000   1276024F01000

1276024F01000

Unit Price

2
GUIDE, CAM CHAIN NO.1

12771-15H00-000  

12771-15H01-000
 1277115H00000

Unit Price

3
GUIDE, CAM CHAIN NO.2

12782-24F01-000  

12782-24F02-000
 1278224F01000

Unit Price

4
BOLT
SCREW

07130-0612A-000   071300612A000

071300612A000

Unit Price

5
TENSIONER, CAM CHAIN

12811-15H00-000  

12811-15H01-000
 1281115H00000

Unit Price

6
BOLT, CAM CHAIN TENSIONER
BOLT

12812-31G00-000  

1281231G00000
Not available
7
RETAINER, CAM CHAIN GUIDE NO.1

12773-24F00-000   1277324F00000

1277324F00000

Unit Price

8
SCREW
SCREW

02122-0612A-000  

02122-0612B-000
 021220612A000

Unit Price

9
ADJUSTER ASSY, TENSIONER

12830-15H00-000  

12830-15H01-000
 1283015H00000

Unit Price

10
GASKET, TENSIONER ADJUSTER
GASKET, TNSN ADJUSTER

12837-02H00-000   1283702H00000

1283702H00000

Unit Price

11
BOLT

07130-0625A-000   071300625A000

071300625A000

Unit Price

12
HOSE, CAM CHAIN TNSN ADJ OIL
HOSE, CAM CHAIN TENSIONER

12835-15H00-000   1283515H00000

1283515H00000

Unit Price

13
BOLT, ADJ OIL HOSE UNION
BOLT

12838-15H00-000   1283815H00000

1283815H00000

Unit Price

14
GASKET, 7.8X13.5X1.2
GASKET

09168-08034-000   0916808034000

0916808034000

Unit Price

15
PLUG, ADJ OIL HOSE UNION

12839-15H00-000  

12839-15H01-000
 1283915H00000

Unit Price

16
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

17
CLAMP,WIRING HARNESS<br />CLAMP
CLAMP, WIRING HARNESS
CLAMP

09407-18402-000   0940718402000

0940718402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki B-KING 1300 of B-KING. Let us know if you have any questions.
