SEAT (MODEL K1) REFER TO FIG.49B(J- 9) FOR MODEL K2

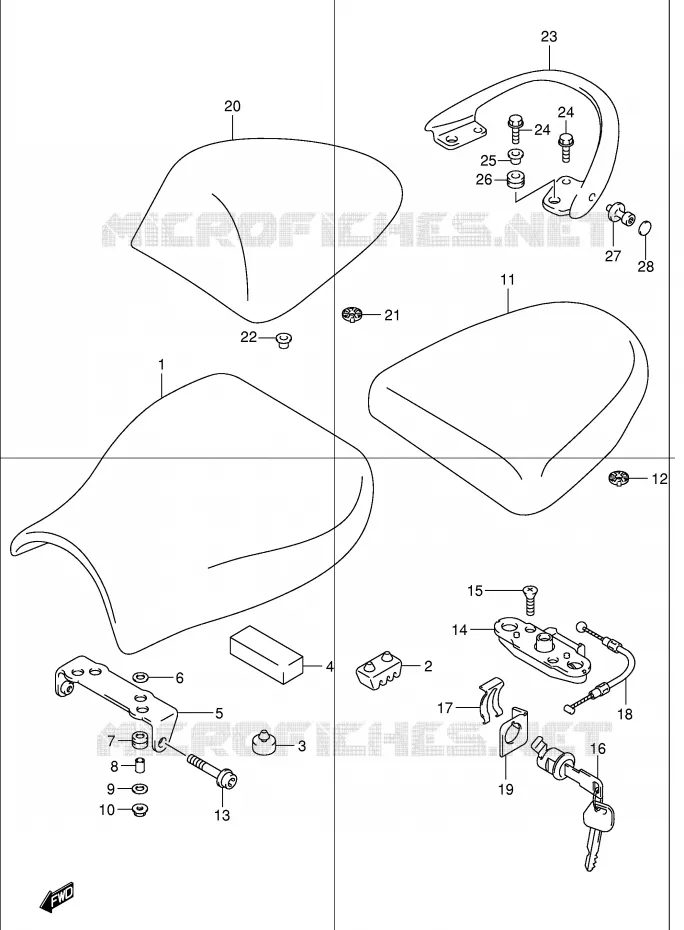

SEAT (MODEL K2) FOR SUZUKI HAYABUSA 1300 2002

SEAT (MODEL K3) REFER TO FIG.49C(J-10) FOR MODEL K3

Item numbers

45100-24F12-W05

45100-24F10-W05

Not available

CUSHION, SUPPORT(50X25X32)
CUSHION

45149-45330-000 4514945330000

$6,97

Unit Price

CUSHION

09321-10011-000 0932110011000

$4,97

Unit Price

DISCONTINUE
CUSHION

45117-47D00-000 4511747D00000

Not available

BRACKET, SEAT

45116-24F10-000 4511624F10000

$32,97

Unit Price

WASHER(6.5X20X1.6)
WASHER

09160-06066-000 0916006066000

$3,97

Unit Price

CUSHION, SEAT
CUSHION (10X20X10)

45149-24F01-000

Not available

SPACER
SPACER (6.5X10X10)

09180-06310-000 0918006310000

$3,97

Unit Price

WASHER, SEAT BRACKET
WASHER

45117-24F00-000 4511724F00000

$8,97

Unit Price

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

SEAT ASSY, PILLION(BLACK)

45300-24F10-W05

45300-24F11-W05

$481,97

Unit Price

CUSHION

45213-31300-000 4521331300000

$5,97

Unit Price

BOLT, SEAT FR
BOLT, SEAT FRONT (6X40)

45191-24F00-000 4519124F00000

$11,97

Unit Price

BRACKET, SEAT SUPPORT

45220-20A01-000

45220-47H00-000

$125,97

Unit Price

SCREW

02122-06303-000

02122-0630B-000

$3,97

Unit Price

LOCK SET, SEAT
LOCK ASSY, SEAT

95700-14810-000 9570014810000

$171,97

Unit Price

PLATE, SEAT LOCK ASSY
PLATE, SEAT LOCK

45289-11F00-000 4528911F00000

$9,97

Unit Price

CABLE, SEAT LOCK

45280-24F00-000 4528024F00000

$24,97

Unit Price

GUIDE, SEAT LOCK CABLE
GUIDE, CABLE

45288-14F00-000 4528814F00000

$8,97

Unit Price

DISCONTINUE
BOX, SEAT TAIL (BLUE)

45550-24F10-1LF 4555024F101LF

Not available

DISCONTINUE

45550-24F10-33J

Not available

DISCONTINUE
B0X, SEAT TAIL (SILVER)

45550-24F10-YM6 4555024F10YM6

Not available

CUSHION

45213-31300-000 4521331300000

$5,97

Unit Price

WASHER, FRAME COVER

47190-24F00-000

47190-24F01-000

$13,97

Unit Price

DISCONTINUE
HANDLE, PILLION RIDER (BLACK)

46211-24F01-Y7L 4621124F01Y7L

Not available

BOLT(8X35)
BOLT

09103-08373-000 0910308373000

$5,97

Unit Price

WASHER, PILLION

47190-24F10-000

47190-24F11-000

$15,97

Unit Price

CUSHION, PILLION RIDER HANDLE
CUSHION, PILLION RIDER HDL

46217-24F00-000 4621724F00000

$8,97

Unit Price

HOOK, PILLION RIDER HANDLE
HOOK, HANDLE

46212-24F11-000 4621224F11000

$46,97

Unit Price

CAP

09250-05009-000 0925005009000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (MODEL K2) of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
