Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LABEL (MODEL K1 / K2 / K3)

SEAT (MODEL X / Y) FOR SUZUKI HAYABUSA 1300 2003

SEAT (MODEL K1) REFER TO FIG.49B(J- 9) FOR MODEL K2

Item numbers

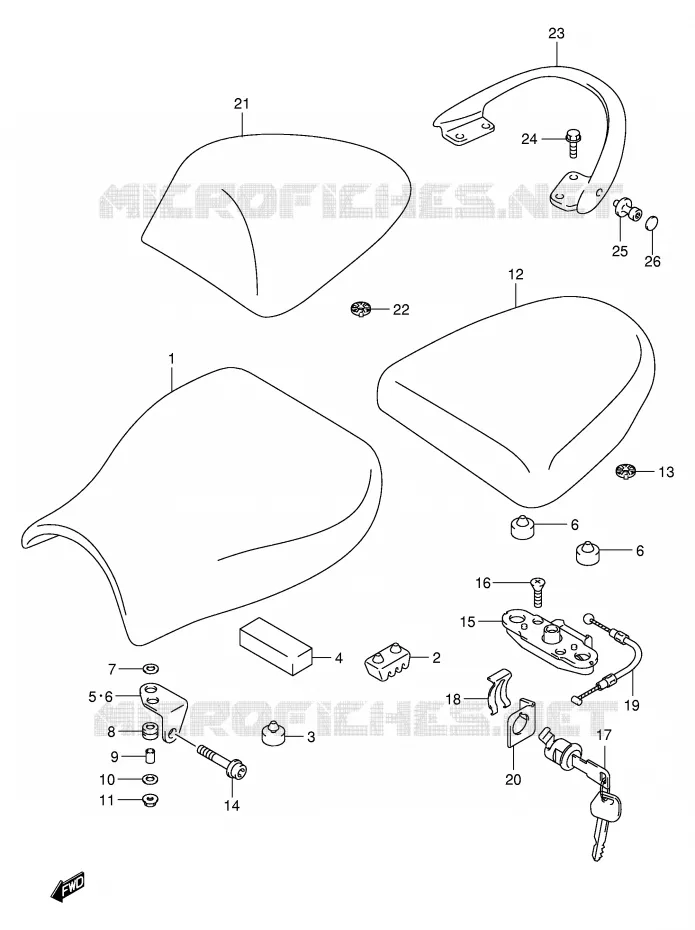

SEAT (MODEL X/Y) Suzuki MOTO 1300 HAYABUSA 2003 GSX1300RZK3(E2)
1
1
2
3
4
5
6
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
21
21
22
23
24
25
25
26
1
45100-24F12-W05

45100-24F00-W05  

4510024F00W05
Not available
2
CUSHION,SUPPORT(50X25X32)<br />CUSHION
CUSHION, SUPPORT(50X25X32)
CUSHION

45149-45330-000   4514945330000

4514945330000

Unit Price

3
CUSHION
CUSHION

09321-10011-000   0932110011000

0932110011000

Unit Price

4
DISCONTINUE
CUSHION

45117-47D00-000   4511747D00000

4511747D00000
Not available
5
DISCONTINUE
BRACKET, SEAT FRONT RH

45115-24F00-000   4511524F00000

4511524F00000
Not available
6
DISCONTINUE
BRACKET, SEAT FRONT LH

45116-24F00-000   4511624F00000

4511624F00000
Not available
7
WASHER(6.5X20X1.6)<br />WASHER
WASHER(6.5X20X1.6)
WASHER

09160-06066-000   0916006066000

0916006066000

Unit Price

8
45149-24F01
CUSHION (10X20X10)

45149-24F00-000  

4514924F00000
Not available
9
SPACER<br />SPACER (6.5X10X10)
SPACER
SPACER (6.5X10X10)

09180-06310-000   0918006310000

0918006310000

Unit Price

10
WASHER(6.5X20X1.6)<br />WASHER
WASHER(6.5X20X1.6)
WASHER

09160-06066-000   0916006066000

0916006066000

Unit Price

10
WASHER, SEAT BRACKET
WASHER

45117-24F00-000   4511724F00000

4511724F00000

Unit Price

11
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

12
SEAT ASSY, PILLION(BLACK)

45300-24F00-W05  

45300-24F10-W05
 4530024F00W05

Unit Price

13
CUSHION
CUSHION

45213-31300-000   4521331300000

4521331300000

Unit Price

14
BOLT, SEAT FR
BOLT, SEAT FRONT (6X40)

45191-24F00-000   4519124F00000

4519124F00000

Unit Price

15
BRACKET, SEAT SUPPORT

45220-20A01-000  

45220-47H00-000
 4522020A01000

Unit Price

16
SCREW

02122-06303-000  

02122-0630B-000
 0212206303000

Unit Price

17
LOCK SET,SEAT<br />LOCK ASSY, SEAT
LOCK SET, SEAT
LOCK ASSY, SEAT

95700-14810-000   9570014810000

9570014810000

Unit Price

18
PLATE,SEAT LOCK ASSY<br />PLATE, SEAT LOCK
PLATE, SEAT LOCK ASSY
PLATE, SEAT LOCK

45289-11F00-000   4528911F00000

4528911F00000

Unit Price

19
CABLE, SEAT LOCK

45280-24F00-000   4528024F00000

4528024F00000

Unit Price

20
GUIDE,SEAT LOCK CABLE<br />GUIDE, CABLE
GUIDE, SEAT LOCK CABLE
GUIDE, CABLE

45288-14F00-000   4528814F00000

4528814F00000

Unit Price

21
BOX, SEAT TAIL (RED)

45550-24F00-19A   4555024F0019A

4555024F0019A
Not available
21
DISCONTINUE

45550-24F00-1LF  

4555024F001LF
Not available
21
DISCONTINUE
BOX, SEAT TAIL (BLACK)

45550-24F00-Y7L   4555024F00Y7L

4555024F00Y7L
Not available
21
DISCONTINUE
BOX, SEAT TAIL (BROWN)

45550-24F00-Y9K   4555024F00Y9K

4555024F00Y9K
Not available
21
DISCONTINUE
B0X, SEAT TAIL (RED)

45550-24F00-YC6   4555024F00YC6

4555024F00YC6
Not available
22
CUSHION
CUSHION

45213-31300-000   4521331300000

4521331300000

Unit Price

23
46211-24F01-35W
HANDLE, PILLION RIDER (GRAY)

46211-24F00-35W  

4621124F0035W
Not available
24
BOLT

01550-08303-000  

01550-0830B-000
 0155008303000

Unit Price

25
HOOK, PILLION RIDER HANDLE
HOOK, HANDLE

46212-24F11-000   4621224F11000

4621224F11000

Unit Price

25
HOOK, HANDLE

46212-24F10-000   4621224F10000

4621224F10000
Not available
26
CAP
CAP

09250-05009-000   0925005009000

0925005009000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (MODEL X/Y) of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.

Genuine parts for Suzuki 1300 HAYABUSA 2003
