Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT BRAKE HOSE

SWINGARM FOR SUZUKI HAYABUSA 1300 2005

SHOCK ABSORBER LINKAGE

Item numbers

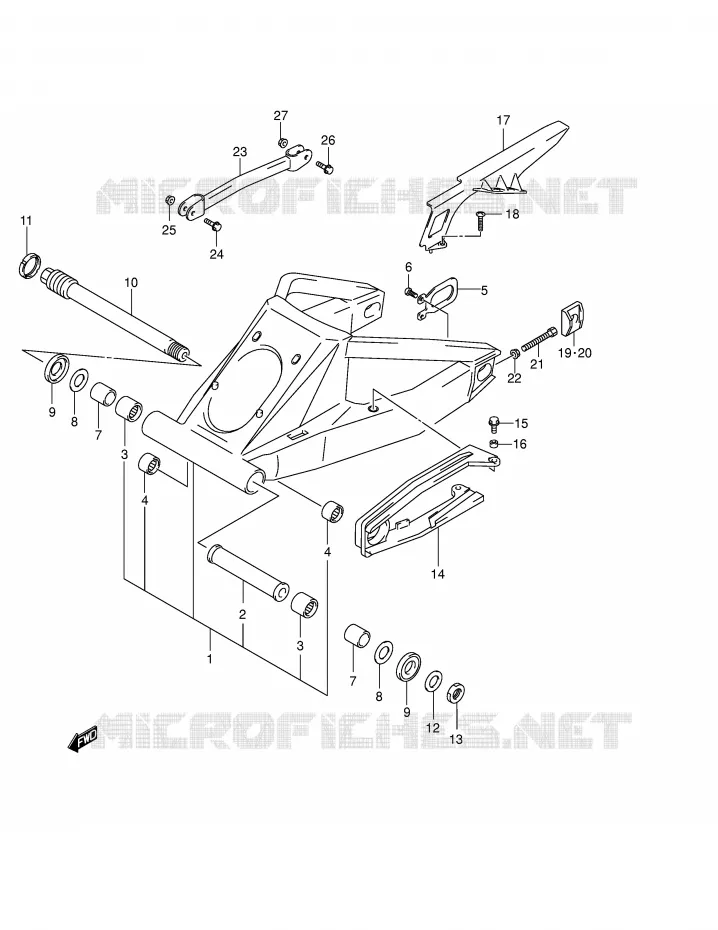

SWINGARM Suzuki MOTO 1300 HAYABUSA 2005 GSX1300RU2K5(E2)
1
1
2
3
3
4
4
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
DISCONTINUE
SWINGINGARM ASSY, REAR

61000-24F20-YAP   6100024F20YAP

6100024F20YAP
Not available
1
DISCONTINUE
SWINGINGARM ASSY, REAR

61000-24F30-000   6100024F30000

6100024F30000
Not available
2
SPACER, RR SWGARM PIVOT CTR

61281-33E10-000  

61281-33E20-000
 6128133E10000

Unit Price

3
BEARING,PROP SHAFT<br />BEARING, PIVOT (30X40X25)
BEARING, PROP SHAFT
BEARING, PIVOT (30X40X25)

09263-30040-000   0926330040000

0926330040000

Unit Price

4
ROLLER BEARING<br />BEARING, ROD (20X27X23.5)
ROLLER BEARING
BEARING, ROD (20X27X23.5)

09263-20071-000   0926320071000

0926320071000

Unit Price

5
PLATE,RR SWING ARM BRKT<br />PLATE, BRACKET
PLATE, RR SWING ARM BRKT
PLATE, BRACKET

61124-33E00-000   6112433E00000

6112433E00000

Unit Price

6
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

6
SCREW 6X16<br />SCREW
SCREW 6X16
SCREW

09125-06073-000   0912506073000

0912506073000

Unit Price

7
SPACER, RR SWGARM PIVOT BEARING

61251-17E10-000  

61251-17E20-000
 6125117E10000

Unit Price

8
WASHER
WASHER

08211-25481-000   0821125481000

0821125481000

Unit Price

9
SEAL,DUST
SEAL, DUST

61262-17E10-000  

61262-17E11-000
 6126217E10000

Unit Price

10
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-16G00-000   6121116G00000

6121116G00000

Unit Price

11
NUT,RR SWGARM PIVOT BOLT<br />NUT, PIVOT SHAFT
NUT, RR SWGARM PIVOT BOLT
NUT, PIVOT SHAFT

61214-40C31-000   6121440C31000

6121440C31000

Unit Price

12
WASHER
WASHER

09160-25070-000  

09160-25070-A05
 0916025070000
13
NUT

09159-25001-000  

09159-25003-000
 0915925001000

Unit Price

14
BUFFER

61273-24F00-000  

61273-24F01-000
 6127324F00000

Unit Price

15
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06152-000   0911606152000

0911606152000

Unit Price

16
SPACER (6.5X9X5)
SPACER (6.5X9X5)

09180-06306-000   0918006306000

0918006306000

Unit Price

17
CASE, CHAIN
CASE, CHAIN

61311-33E01-000   6131133E01000

6131133E01000

Unit Price

18
SCREW<br />SCREW (6X16)
SCREW
SCREW (6X16)

09139-06083-000   0913906083000

0913906083000

Unit Price

19
ADJUSTER,CHAIN<br />ADJUSTER, CHAIN RH
ADJUSTER, CHAIN
ADJUSTER, CHAIN RH

61446-33E10-000   6144633E10000

6144633E10000

Unit Price

20
ADJUSTER,CHAIN<br />ADJUSTER, CHAIN LH
ADJUSTER, CHAIN
ADJUSTER, CHAIN LH

61445-33E00-000   6144533E00000

6144533E00000

Unit Price

21
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

22
NUT
NUT

08316-1008B-000   083161008B000

083161008B000

Unit Price

23
DISCONTINUE
TORQUELINK, REAR

64310-24F00-000   6431024F00000

6431024F00000
Not available
24
BOLT<br />BOLT, FRONT (8X35.5)
BOLT
BOLT, FRONT (8X35.5)

09111-08085-000   0911108085000

0911108085000

Unit Price

25
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

26
BOLT CALIPER<br />BOLT, REAR (10X37)
BOLT CALIPER
BOLT, REAR (10X37)

09103-10019-000   0910310019000

0910310019000

Unit Price

27
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.

Genuine parts for Suzuki 1300 HAYABUSA 2005
