LEVERS - HANDGRIPS

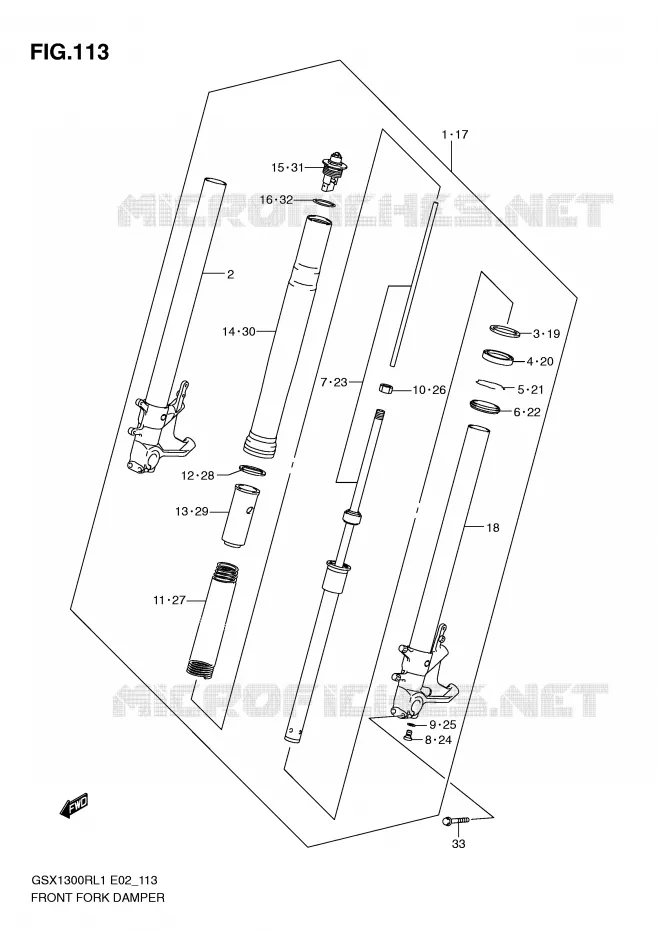

FRONT FORK FOR SUZUKI HAYABUSA 1300 2011

BRACKET - STEERING DAMPER

Item numbers

DISCONTINUE
DAMPER ASSY, FRONT FORK RH

51103-24F50-000

Not available

DISCONTINUE
TUBE, INNER RH

51110-24F50-000

51110-24F51-000

WASHER

51158-14200-000 5115814200000

$7,97

Unit Price

SEAL, OIL

51153-41G00-000 5115341G00000

$23,97

Unit Price

RING, STOPPER

51156-14200-000 5115614200000

$7,97

Unit Price

SEAL, DUST

51173-41G00-000 5117341G00000

$25,97

Unit Price

DISCONTINUE
CYLINDER

51146-24F50-000

Not available

BOLT

51147-24F50-000 5114724F50000

$15,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

NUT, ROD
NUT

51352-13A60-000 5135213A60000

$3,97

Unit Price

SPRING, FR
SPRING, FRONT

51171-24F50-000 5117124F50000

$117,97

Unit Price

WASHER
GUIDE, SPRING

51158-40F30-000 5115840F30000

$12,97

Unit Price

SPACER, SPRING

51176-40F30-000 5117640F30000

$18,97

Unit Price

TUBE, OUTER
TUBE, OUTER (BRONZE)

51130-24F50-000 5113024F50000

$1 019,97

Unit Price

CAP, FR FORK
CAP, FRONT FORK

51351-24F50-000 5135124F50000

$258,97

Unit Price

O RING

62278-14100-000 6227814100000

$6,97

Unit Price

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-24F50-000

Not available

DISCONTINUE
TUBE, INNER LH

51120-24F50-000

Not available

WASHER

51158-14200-000 5115814200000

$7,97

Unit Price

SEAL, OIL

51153-41G00-000 5115341G00000

$23,97

Unit Price

RING, STOPPER

51156-14200-000 5115614200000

$7,97

Unit Price

SEAL, DUST

51173-41G00-000 5117341G00000

$25,97

Unit Price

DISCONTINUE
CYLINDER

51146-24F50-000

Not available

BOLT

51147-24F50-000 5114724F50000

$15,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

NUT, ROD
NUT

51352-13A60-000 5135213A60000

$3,97

Unit Price

SPRING, FR
SPRING, FRONT

51171-24F50-000 5117124F50000

$117,97

Unit Price

WASHER
GUIDE, SPRING

51158-40F30-000 5115840F30000

$12,97

Unit Price

SPACER, SPRING

51176-40F30-000 5117640F30000

$18,97

Unit Price

TUBE, OUTER
TUBE, OUTER (BRONZE)

51130-24F50-000 5113024F50000

$1 019,97

Unit Price

CAP, FR FORK
CAP, FRONT FORK

51351-24F50-000 5135124F50000

$258,97

Unit Price

O RING

62278-14100-000 6227814100000

$6,97

Unit Price

BOLT

51166-24F50-000 5116624F50000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
