INDICATORS

TAIL LIGHT FOR SUZUKI HAYABUSA 1300 2011

WIRING HARNESS

LAMP ASSY, RR COMBINATION

35710-15H01-000 3571015H01000

Not available

BRACKET, RR COMBINATION LAMP
BRACKET, RR COMBINATION

35726-15H00-000 3572615H00000

$49,97

Unit Price

BRACKET, RR COMBINATION LAMP
BRACKET, RR COMBINATION

35726-15H10-000 3572615H10000

$19,97

Unit Price

BOLT (5X12)

09106-05031-000 0910605031000

$5,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$4,97

Unit Price

SCREW

03541-0516A-000 035410516A000

$2,97

Unit Price

LAMP ASSY, LICENSE

35910-41G01-000

35910-41G02-000

$86,97

Unit Price

LENS, LICENSE LAMP
LENS, LICENSE

35912-41G01-000 3591241G01000

$34,97

Unit Price

GASKET

35913-41G00-000 3591341G00000

$26,97

Unit Price

COVER, LICENSE LAMP

35917-41G00-000 3591741G00000

$47,97

Unit Price

BULB(12V10W)
BULB (12V5W, BF150-40160A)

09471-12140-000

Not available

WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000 0916006077000

$2,97

Unit Price

SPACER (6.5X9X10.5)

09180-06264-000 0918006264000

$3,97

Unit Price

CUSHION

09321-06032-000 0932106032000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

REFLEX REFLECTOR ASSY, FR SIDE
REFLEX REFLECTOR ASSY, RR SIDE

35950-14A11-000 3595014A11000

$19,97

Unit Price

BRACKET, RR SIDE RR, R
BRACKET, REAR SIDE REAR RH

35975-15H00-000 3597515H00000

$10,97

Unit Price

BRACKET, RR SIDE RR, L
BRACKET, REAR SIDE REAR LH

35976-15H00-000 3597615H00000

$10,97

Unit Price

WASHER, 6.5X14X2.0
WASHER (6.5X14X2)

09160-06126-000 0916006126000

$3,97

Unit Price

SCREW

02142-0612A-000

02142-0612B-000

$2,97

Unit Price

NUT

08316-1005A-000 083161005A000

$3,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

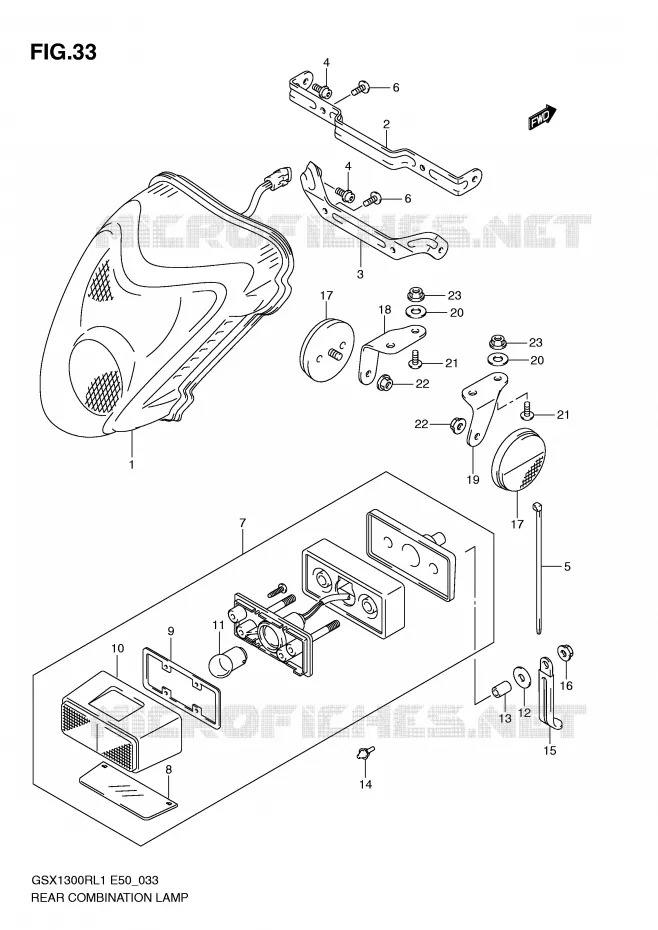

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki HAYABUSA 1300 of HAYABUSA. Let us know if you have any questions.
