FRAME FOR SUZUKI HAYABUSA 1300 2013

FOOTREST

Item numbers

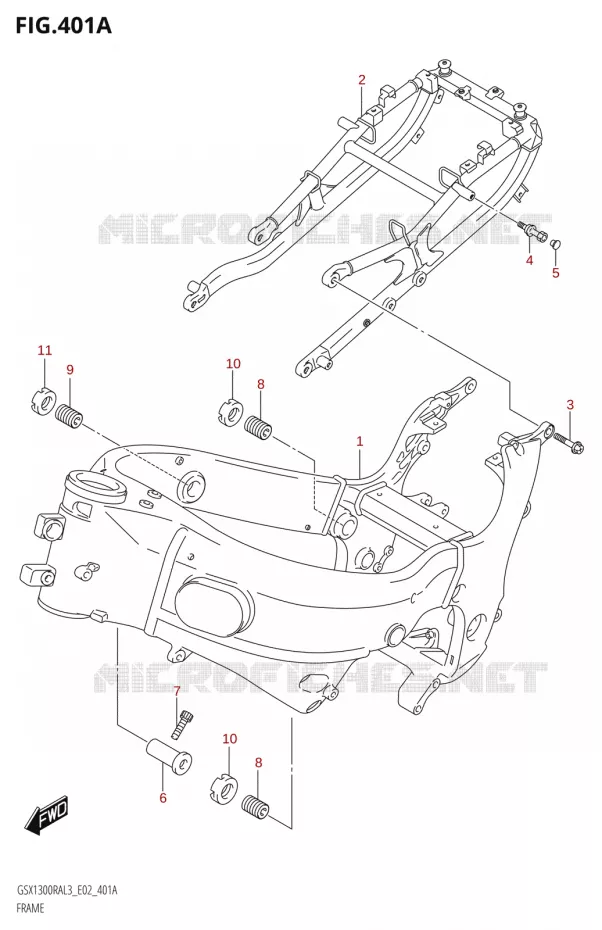

FRAME Suzuki MOTO 1300 HAYABUSA 2013 GSX1300RA L3 (E19)
1
2
3
4
5
6
7
8
8
9
10
10
11
1
FRAME(BLACK)

41100-15H10-YAP  

41100-15H12-YAP
 4110015H10YAP

Unit Price

2
41200-15H11
RAIL, SEAT

41200-15H10-000  

4120015H10000
Not available
3
BOLT<br />BOLT(10X30)
BOLT
BOLT(10X30)

09103-10296-000   0910310296000

0910310296000

Unit Price

4
HOOK, SEAT RAIL

46315-24F01-000   4631524F01000

4631524F01000

Unit Price

5
CAP<br />CAP(OD:10)
CAP
CAP(OD:10)

09250-05009-000   0925005009000

0925005009000

Unit Price

6
SPACER, ENGINE MTG

41911-33E10-000   4191133E10000

4191133E10000

Unit Price

7
BOLT
BOLT(8X30)

09106-08105-000   0910608105000

0910608105000

Unit Price

8
BOLT, CRANK CASE ADJUST

41921-15H00-000  

41921-15H20-000
 4192115H00000

Unit Price

9
BOLT, CRANK CASE ADJUST

41921-15H10-000  

41921-15H30-000
 4192115H10000

Unit Price

10
NUT, CRANK CASE ADJUST

41922-19F11-000  

41922-19F12-000
 4192219F11000

Unit Price

11
NUT, CRANK CASE ADJUST
NUT, CRANK CASE ADJUST

41922-33E30-000   4192233E30000

4192233E30000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki HAYABUSA 1300 ABS of HAYABUSA. Let us know if you have any questions.
