Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI HAYABUSA 1300 2014

TRANSMISSION

Item numbers

GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN(NT:83)

21200-24810-000 2120024810000

$484,97

Unit Price

WASHER(25X54X2.4)

09160-25073-000 0916025073000

$20,97

Unit Price

BEARING, PRI DRVN GR
BEARING(35X40X39.8)

09263-35013-000 0926335013000

$50,97

Unit Price

HUB, CLUTCH SLEEVE

21410-24F00-000 2141024F00000

$161,97

Unit Price

SPRING, CLUTCH

21413-24F30-000 2141324F30000

$11,97

Unit Price

PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE, NO.2(T:3.8)

21441-24F10-000 2144124F10000

$34,97

Unit Price

PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE NO.1(T:3.0)

21441-24F30-000 2144124F30000

$34,97

Unit Price

PLATE, CLUTCH DRIVE NO.3
PLATE, CLUTCH DRIVE, NO.3(T:3.8)

21442-24F00-000 2144224F00000

$41,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1(T:2.0
PLATE, CLUTCH DRIVEN(T:2.0)

21451-24F00-000 2145124F00000

$16,97

Unit Price

PLATE, CLUTCH DRIVEN NO.4(T:2.3
PLATE, CLUTCH DRIVEN(T:2.3)

21451-24F10-000 2145124F10000

$18,97

Unit Price

DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-24F00-000 2146224F00000

$91,97

Unit Price

SEAT, WAVE WASHER

21471-24F00-000 2147124F00000

$18,97

Unit Price

WASHER, CLUTCH PLATE WAVE

21472-06G00-000 2147206G00000

$19,97

Unit Price

BOLT, CLUTCH SPRING SUPPORT

21481-24F32-000 2148124F32000

$17,97

Unit Price

BOLT, CLUTCH SPRING

21482-24F30-000 2148224F30000

$6,97

Unit Price

CAM SET, CLUTCH

21610-02F12-000 2161002F12000

$260,97

Unit Price

WASHER SLEEVE HUB
WASHER(25X50X2.5)

09160-25056-000 0916025056000

$19,97

Unit Price

NUT

09159-24010-000 0915924010000

$22,97

Unit Price

WASHER CL SLEEVE HUB
WASHER(24.2X35X2)

09164-24006-000 0916424006000

$6,97

Unit Price

ROD, CLUTCH
ROD, CLUTCH(L:195.5)

23110-24F00-000 2311024F00000

$27,97

Unit Price

ROD, CLUTCH PUSH LH
ROD, CLUTCH PUSH LH(L:132.5)

23111-26D00-000 2311126D00000

$18,97

Unit Price

COVER, CLUTCH RELEASE CYLINDER

23117-46E00-000 2311746E00000

$13,97

Unit Price

PIECE, CLUTCH PUSH

23121-31E00-000 2312131E00000

$29,97

Unit Price

CYLINDER, CLUTCH RELEASE

23160-15H10-000

23160-15H11-000

$160,97

Unit Price

.CUP

23163-10F00-000 2316310F00000

$11,97

Unit Price

.SPRING

23164-10F00-000 2316410F00000

$6,97

Unit Price

.BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

.CAP, BLEEDER

59122-01A00-000 5912201A00000

$6,97

Unit Price

WASHER
WASHER(15.5X28X1)

09160-15045-000 0916015045000

$6,97

Unit Price

BEARING(15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

SEAL, OIL 6X34X5.5
OIL SEAL(6X34X5.5)

09285-06015-000 0928506015000

$15,97

Unit Price

BOLT

07130-0625A-000 071300625A000

$4,97

Unit Price

SCREW

02112-0610A-000 021120610A000

$2,97

Unit Price

9 X 12 DOWEL PIN
PIN

04211-09129-000 0421109129000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

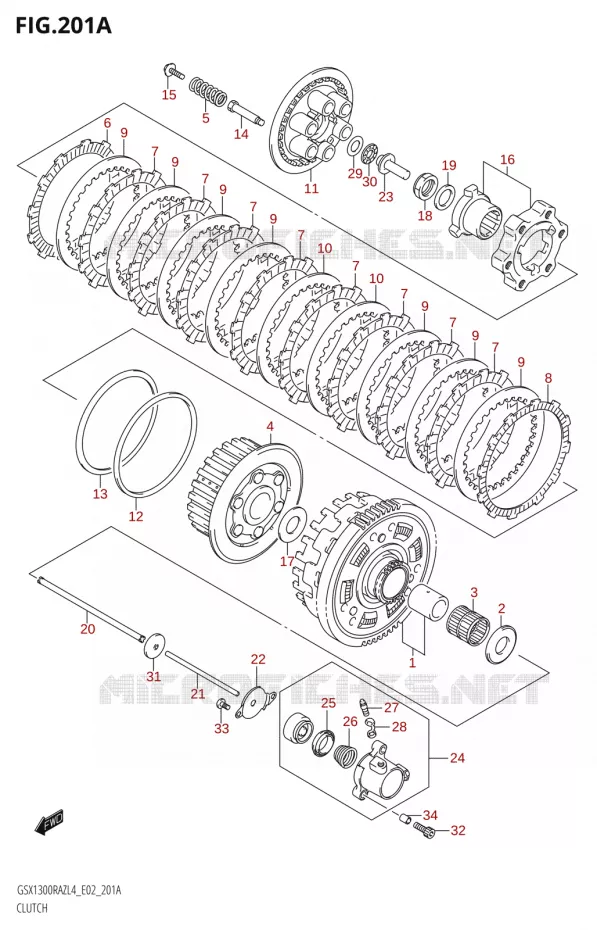

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki HAYABUSA 1300 ABS of HAYABUSA. Let us know if you have any questions.
