SIDE BAG (MODEL H) REFER TO FIG79A(2-A-6) FOR MODEL J

SIDE BAG (MODEL J) FOR SUZUKI CAVALCADE 1400 1986

CORNER LAMP COVER (GV1400GCJ)

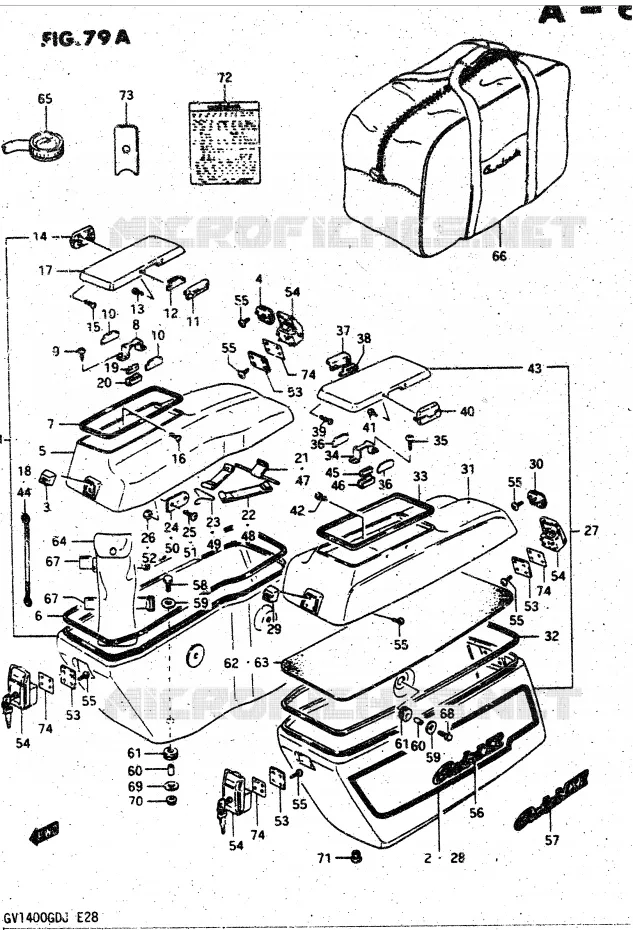

SIDE BAG (MODEL J) Suzuki MOTO 1400 CAVALCADE 1986 GV1400GDG(DG-DJ/CJ)
1
SIDE BAG ASSY, RH (BLACK)

95400-24A61-13Z   9540024A6113Z

9540024A6113Z
Not available
1
SIDE BAG ASSY, RH (MAROON)

95400-24A61-24D   9540024A6124D

9540024A6124D
Not available
1
SIDE BAG ASSY, RH (SILVER)

95400-24A70-20H   9540024A7020H

9540024A7020H
Not available
1
SIDE BAG ASSY, RH (MAROON)

95400-24A70-38G   9540024A7038G

9540024A7038G
Not available
2
.TAPE SET SIDEBAG STR, RH

68260-24A30-9EA   6826024A309EA

6826024A309EA
Not available
2
TAPE SET, SIDE BAG RH

68260-24A30-9EB   6826024A309EB

6826024A309EB
Not available
2
.TAPE SET, SIDE BAG, RH

68260-24A40-9VJ   6826024A409VJ

6826024A409VJ
Not available
2
TAPE SET, SIDE BAG RH

68260-24A40-9VK   6826024A409VK

6826024A409VK
Not available
3
LOCK PLATE, FRONT

93316-24A02-000   9331624A02000

9331624A02000
Not available
4
LOCK PLATE, REAR

93316-24A13-000   9331624A13000

9331624A13000
Not available
5
.LID, SIDE BAG R (BLACK)

95440-24A10-13Z   9544024A1013Z

9544024A1013Z
Not available
5
LID (MAROON)

95440-24A10-24D   9544024A1024D

9544024A1024D
Not available
5
.LID, SIDE BAG R (SILVER)

95440-24A20-20H   9544024A2020H

9544024A2020H
Not available
5
DISCONTINUED

95440-24A20-38G   9544024A2038G

9544024A2038G
Not available
6
DISCONTINUE
SEAL

95422-24A01-000   9542224A01000

9542224A01000
Not available
7
SEAL

95446-24A02-000   9544624A02000

9544624A02000
Not available
8
HOLDER

95516-24A00-000   9551624A00000

9551624A00000
Not available
9
SCREW

03511-03125-000   0351103125000

0351103125000
Not available
10
PLATE, LID ROCK

95423-24A10-000   9542324A10000

9542324A10000
Not available
11
..LEVER, POCKET OPENER

95447-24A00-000   9544724A00000

9544724A00000
Not available
12
DISCONTINUE
PLATE

95424-24A00-000   9542424A00000

9542424A00000
Not available
13
02142-04063
..SCREW 4X6

02142-04065-000  

0214204065000
Not available
14
HINGE

95443-24A00-000   9544324A00000

9544324A00000
Not available
15
02142-04063
..SCREW 4X6

02142-04065-000  

0214204065000
Not available
16
..SCREW 4X12

02142-04125-000   0214204125000

0214204125000
Not available
17
DISCONTINUE
LID, POCKET

95448-24A00-000   9544824A00000

9544824A00000
Not available
18
BAND

93191-24A00-000   9319124A00000

9319124A00000
Not available
19
MAGNET

95449-24A00-000   9544924A00000

9544924A00000
Not available
20
BOX, HOLDER

95517-24A00-000   9551724A00000

9551724A00000
Not available
21
PLATE, REAR

95470-24A00-000   9547024A00000

9547024A00000
Not available
22
BAND

95474-24A00-000   9547424A00000

9547424A00000
Not available
23
HOOK

95475-24A00-000   9547524A00000

9547524A00000
Not available
24
PLATE, FRONT

95473-24A00-000   9547324A00000

9547324A00000
Not available
25
SCREW

02142-05124-000  

02142-0512A-000
 0214205124000

Unit Price

26
NUT

08313-21055-000  

08313-2005A-000
 0831321055000

Unit Price

27
SIDE BAG ASSY, L (BLACK)

95500-24A61-13Z   9550024A6113Z

9550024A6113Z
Not available
27
SIDE BAG ASSY, LH (MAROON)

95500-24A61-24D   9550024A6124D

9550024A6124D
Not available
27
SIDE BAG ASSY, LH (SILVER)

95500-24A70-20H   9550024A7020H

9550024A7020H
Not available
27
SIDE BAG ASSY, LH (MAROON)

95500-24A70-38G   9550024A7038G

9550024A7038G
Not available
28
TAPE SET, SIDE BAG LH

68290-24A30-9EA   6829024A309EA

6829024A309EA
Not available
28
TAPE SET, SIDE BAG LH

68290-24A30-9EB   6829024A309EB

6829024A309EB
Not available
28
TAPE SET, SIDE BAG LH

68290-24A40-9VJ   6829024A409VJ

6829024A409VJ
Not available
28
DISCONTINUED

68290-24A40-9VK   6829024A409VK

6829024A409VK
Not available
29
LOCK PLATE, FRONT

93316-24A02-000   9331624A02000

9331624A02000
Not available
30
LOCK PLATE, REAR

93316-24A13-000   9331624A13000

9331624A13000
Not available
31
.LID, SIDE BAG L (BLACK)

95540-24A10-13Z   9554024A1013Z

9554024A1013Z
Not available
31
.LID, SIDE BAG L (MAROON)

95540-24A10-24D   9554024A1024D

9554024A1024D
Not available
31
.LID, SIDE BAG L (SILVER)

95540-24A20-20H   9554024A2020H

9554024A2020H
Not available
31
.LID, SIDE BAG, L(MAROON)

95540-24A20-38G   9554024A2038G

9554024A2038G
Not available
32
DISCONTINUE
SEAL

95422-24A01-000   9542224A01000

9542224A01000
Not available
33
SEAL

95446-24A02-000   9544624A02000

9544624A02000
Not available
34
HOLDER

95516-24A00-000   9551624A00000

9551624A00000
Not available
35
SCREW

03511-03125-000   0351103125000

0351103125000
Not available
36
PLATE, LID LOCK

95423-24A10-000   9542324A10000

9542324A10000
Not available
37
..LEVER, POCKET OPENER

95447-24A00-000   9544724A00000

9544724A00000
Not available
38
DISCONTINUE
PLATE

95424-24A00-000   9542424A00000

9542424A00000
Not available
39
02142-04063
..SCREW 4X6

02142-04065-000  

0214204065000
Not available
40
HINGE

95443-24A00-000   9544324A00000

9544324A00000
Not available
41
02142-04063
..SCREW 4X6

02142-04065-000  

0214204065000
Not available
42
..SCREW 4X12

02142-04125-000   0214204125000

0214204125000
Not available
43
DISCONTINUE
LID, POCKET

95448-24A00-000   9544824A00000

9544824A00000
Not available
44
BAND

93191-24A00-000   9319124A00000

9319124A00000
Not available
45
MAGNET

95449-24A00-000   9544924A00000

9544924A00000
Not available
46
BOX, HOLDER

95517-24A00-000   9551724A00000

9551724A00000
Not available
47
PLATE, REAR

95470-24A00-000   9547024A00000

9547024A00000
Not available
48
BAND

95474-24A00-000   9547424A00000

9547424A00000
Not available
49
HOOK

95475-24A00-000   9547524A00000

9547524A00000
Not available
50
PLATE, FRONT

95473-24A00-000   9547324A00000

9547324A00000
Not available
51
SCREW

02142-05124-000  

02142-0512A-000
 0214205124000

Unit Price

52
NUT

08313-21055-000  

08313-2005A-000
 0831321055000

Unit Price

53
SET PLATE, SIDE BAG LOCK

93124-24A00-000   9312424A00000

9312424A00000
Not available
54
DISCONTINUE

93310-24A01-KEY  

9331024A01KEY
Not available
55
SCREW

02142-05085-000   0214205085000

0214205085000
Not available
56
EMBLEM

68261-24A10-000   6826124A10000

6826124A10000
Not available
57
EMBLEM, SIDE BAG

68261-24A20-000   6826124A20000

6826124A20000
Not available
58
BOLT

01107-06307-000  

01500-06307-000
 0110706307000

Unit Price

59
WASHER

09160-06030-000  

09160-06136-000
 0916006030000

Unit Price

60
SPACER

09180-06055-000   0918006055000

0918006055000
Not available
61
CUSHION

09320-09017-000   0932009017000

0932009017000

Unit Price

62
SEAT, BOTTOM RH

95416-24A00-000   9541624A00000

9541624A00000
Not available
63
SEAT, SIDE BAG BOTTOM, LH

95417-24A00-000   9541724A00000

9541724A00000
Not available
64
TOOL ASSY

09800-00293-000   0980000293000

0980000293000
Not available
65
DISCONTINUE<br />REORDER ROBINSONS
DISCONTINUE
REORDER ROBINSONS

96200-41330-000   9620041330000

9620041330000
Not available
66
LUGGAGE BAG

95450-24A01-000   9545024A01000

9545024A01000
Not available
67
TOP BAND BOW -SAMURA
BAND

09462-00040-000   0946200040000

0946200040000

Unit Price

68
BOLT(6X30)
BOLT, UPPER

09104-06004-000   0910406004000

0910406004000

Unit Price

69
WASHER(6.5X18X2)

09160-06013-000  

09160-06121-000
 0916006013000

Unit Price

70
NUT 6MM<br />NUT
NUT 6MM
NUT

08319-31067-000   0831931067000

0831931067000

Unit Price

71
CAP(OD:12)<br />PLUG
CAP(OD:12)
PLUG

09250-08013-000   0925008013000

0925008013000

Unit Price

72
LABEL, WARNING

68613-24A20-000   6861324A20000

6861324A20000
Not available
72
LABEL, WARNING (FRENCH)

68613-24A30-000   6861324A30000

6861324A30000
Not available
73
SPANNER

09813-00038-000   0981300038000

0981300038000
Not available
74
PACKING SEAT

93314-24A01-000   9331424A01000

9331424A01000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE BAG (MODEL J) of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.

Genuine parts for Suzuki 1400 CAVALCADE 1986

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME for Suzuki CAVALCADE 1400 1986

FRAME
for Suzuki CAVALCADE 1400 1986

FRONT FOOTREST for Suzuki CAVALCADE 1400 1986

FRONT FOOTREST
for Suzuki CAVALCADE 1400 1986

FUEL TANK for Suzuki CAVALCADE 1400 1986

FUEL TANK
for Suzuki CAVALCADE 1400 1986

SEAT for Suzuki CAVALCADE 1400 1986

SEAT
for Suzuki CAVALCADE 1400 1986

BACKREST SPEAKERS (GV1400GDG/GDH/GDJ) for Suzuki CAVALCADE 1400 1986

BACKREST - SPEAKERS (GV1400GDG / GDH / GDJ)
for Suzuki CAVALCADE 1400 1986

BACKREST SPEAKERS (GV1400GCJ) for Suzuki CAVALCADE 1400 1986

BACKREST - SPEAKERS (GV1400GCJ)
for Suzuki CAVALCADE 1400 1986

FAIRING (MODEL G) for Suzuki CAVALCADE 1400 1986

FAIRING (MODEL G)
for Suzuki CAVALCADE 1400 1986

FAIRING (MODEL H/J) for Suzuki CAVALCADE 1400 1986

FAIRING (MODEL H / J)
for Suzuki CAVALCADE 1400 1986

FAIRING (GV1400GCJ) for Suzuki CAVALCADE 1400 1986

FAIRING (GV1400GCJ)
for Suzuki CAVALCADE 1400 1986

FRONT FENDER for Suzuki CAVALCADE 1400 1986

FRONT FENDER
for Suzuki CAVALCADE 1400 1986

REAR FENDER for Suzuki CAVALCADE 1400 1986

REAR FENDER
for Suzuki CAVALCADE 1400 1986

UPPER FAIRING (MODEL G/H) for Suzuki CAVALCADE 1400 1986

UPPER FAIRING (MODEL G / H)
for Suzuki CAVALCADE 1400 1986

UPPER FAIRING (MODEL J) for Suzuki CAVALCADE 1400 1986

UPPER FAIRING (MODEL J)
for Suzuki CAVALCADE 1400 1986

FRONT FAIRING (MODEL G ~F.NO.104470) for Suzuki CAVALCADE 1400 1986

FRONT FAIRING (MODEL G ~F.NO.104470)
for Suzuki CAVALCADE 1400 1986

FRONT FAIRING (MODEL G F.NO.104471~/MODEL H) for Suzuki CAVALCADE 1400 1986

FRONT FAIRING (MODEL G F.NO.104471~ / MODEL H)
for Suzuki CAVALCADE 1400 1986

FRONT FAIRING (MODEL J) for Suzuki CAVALCADE 1400 1986

FRONT FAIRING (MODEL J)
for Suzuki CAVALCADE 1400 1986

INNER FAIRING (MODEL G/H/GV1400GDJ) for Suzuki CAVALCADE 1400 1986

INNER FAIRING (MODEL G / H / GV1400GDJ)
for Suzuki CAVALCADE 1400 1986

INNER FAIRING (GV1400GCJ) for Suzuki CAVALCADE 1400 1986

INNER FAIRING (GV1400GCJ)
for Suzuki CAVALCADE 1400 1986

FRONT FAIRING STAY for Suzuki CAVALCADE 1400 1986

FRONT FAIRING STAY
for Suzuki CAVALCADE 1400 1986

BUMPER (NO.1) for Suzuki CAVALCADE 1400 1986

BUMPER (NO.1)
for Suzuki CAVALCADE 1400 1986

BUMPER (NO.2) for Suzuki CAVALCADE 1400 1986

BUMPER (NO.2)
for Suzuki CAVALCADE 1400 1986

TRUNK (MODEL G) for Suzuki CAVALCADE 1400 1986

TRUNK (MODEL G)
for Suzuki CAVALCADE 1400 1986

TRUNK (MODEL H) for Suzuki CAVALCADE 1400 1986

TRUNK (MODEL H)
for Suzuki CAVALCADE 1400 1986

TRUNK (MODEL J) for Suzuki CAVALCADE 1400 1986

TRUNK (MODEL J)
for Suzuki CAVALCADE 1400 1986

SIDE BAG (MODEL G) for Suzuki CAVALCADE 1400 1986

SIDE BAG (MODEL G)
for Suzuki CAVALCADE 1400 1986

SIDE BAG (MODEL H) for Suzuki CAVALCADE 1400 1986

SIDE BAG (MODEL H)
for Suzuki CAVALCADE 1400 1986

SIDE BAG (MODEL J) for Suzuki CAVALCADE 1400 1986

SIDE BAG (MODEL J)
for Suzuki CAVALCADE 1400 1986

CORNER LAMP COVER (GV1400GCJ) for Suzuki CAVALCADE 1400 1986

CORNER LAMP COVER (GV1400GCJ)
for Suzuki CAVALCADE 1400 1986

SADDLEBAG TRIM SET (OPTIONAL) for Suzuki CAVALCADE 1400 1986

SADDLEBAG TRIM SET (OPTIONAL)
for Suzuki CAVALCADE 1400 1986

TRAVEL TRUNK RACK TRIM SET (OPTIONAL) for Suzuki CAVALCADE 1400 1986

TRAVEL TRUNK RACK - TRIM SET (OPTIONAL)
for Suzuki CAVALCADE 1400 1986

AIR VENT FAIRING SET (OPTIONAL) for Suzuki CAVALCADE 1400 1986

AIR VENT FAIRING SET (OPTIONAL)
for Suzuki CAVALCADE 1400 1986

GLOVE BOX (OPTIONAL) for Suzuki CAVALCADE 1400 1986

GLOVE BOX (OPTIONAL)
for Suzuki CAVALCADE 1400 1986

Suzuki 1400 CAVALCADE 1986

Select your Suzuki 1986 model

1400 CAVALCADE 1986 GV1400GDG(DG-DJ/CJ)

CAVALCADE 1400

Suzuki CAVALCADE

Displacement: 1400 cc
Year: 1986
Model code GV1400GDG(DG-DJ / CJ)

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
