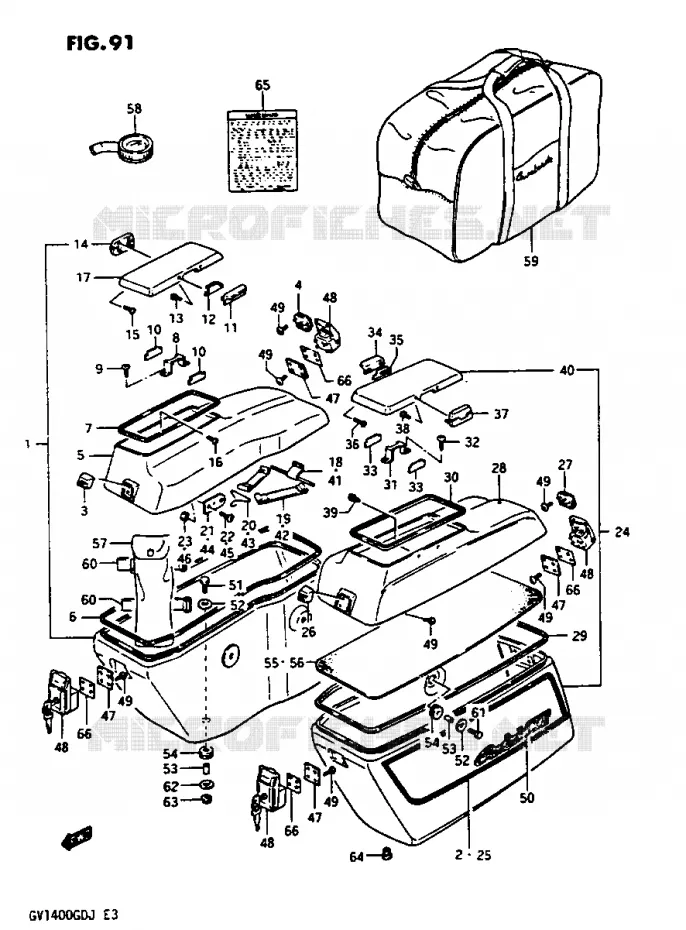

SIDE BAG GV1400GDG / GTG REFER TO FIG.91 2-A-5

SIDE BAG GV1400GCG FOR SUZUKI CAVALCADE 1400 1987

SIDE BAG MODEL H REFER TO FIG.92A 2-A-11

SIDE BAG ASSY, RH

95400-24A41-8RB 9540024A418RB

Not available

SIDE BAG ASSY, RH

95400-24A41-8VA 9540024A418VA

Not available

TAPE SET, SIDE BAG ST, RH

68260-24A20-8JB 6826024A208JB

Not available

.TAPE SET, SIDE BAG ST, RH

68260-24A20-8UZ 6826024A208UZ

Not available

LOCK PLATE, TRUNK LID, FRONT

93316-24A02-000 9331624A02000

Not available

LOCK PLATE, SIDEBAG L, REAR

93316-24A13-000 9331624A13000

Not available

.LID, SIDE BAG R (BLUE)

95440-24A10-24V 9544024A1024V

Not available

.LID, SIDE BAG R (BROWN)

95440-24A10-27U 9544024A1027U

Not available

DISCONTINUE
SEAL, SIDE BAG

95422-24A01-000 9542224A01000

Not available

SEAL SIDE BAG

95446-24A02-000 9544624A02000

Not available

HOLDER LID LOCK

95516-24A00-000 9551624A00000

Not available

SCREW, HOLDER

03511-03125-000 0351103125000

Not available

PLATE LID LOCK

95423-24A10-000 9542324A10000

Not available

..LEVER, POCKET OPENER

95447-24A00-000 9544724A00000

Not available

DISCONTINUE
PLATE, LID LOCK NO.1

95424-24A00-000 9542424A00000

Not available

02142-04063
..SCREW 4X6

02142-04065-000

Not available

HINGE POCKET

95443-24A00-000 9544324A00000

Not available

02142-04063
..SCREW 4X6

02142-04065-000

Not available

..SCREW 4X12

02142-04125-000 0214204125000

Not available

DISCONTINUE
LID SIDE BAG POCKET

95448-24A00-000 9544824A00000

Not available

PLATE, LUGGAGE BAND

95470-24A00-000 9547024A00000

Not available

BAND, LUGGAGE LID

95474-24A00-000 9547424A00000

Not available

HOOK, LUGGAGE LID

95475-24A00-000 9547524A00000

Not available

PLATE, LUGGAGE LID

95473-24A00-000 9547324A00000

Not available

SCREW

02142-05124-000

02142-0512A-000

$2,97

Unit Price

NUT

08313-21055-000

08313-2005A-000

$3,97

Unit Price

SIDE BAG ASSY, LH

95500-24A41-8RB 9550024A418RB

Not available

SIDE BAG ASSY, LH

95500-24A41-8VA 9550024A418VA

Not available

.TAPE SET, SIDE BAG ST, LH

68290-24A20-8JB 6829024A208JB

Not available

TAPE SET, SIDE BAG ST, LH

68290-24A20-8UZ 6829024A208UZ

Not available

LOCK PLATE, TRUNK LID

93316-24A02-000 9331624A02000

Not available

LOCK PLATE, SIDEBAG L

93316-24A13-000 9331624A13000

Not available

.LID (BLUE)

95540-24A10-24V 9554024A1024V

Not available

.LID (BROWN)

95540-24A10-27U 9554024A1027U

Not available

DISCONTINUE
SEAL, SIDE BAG

95422-24A01-000 9542224A01000

Not available

SEAL SIDE BAG

95446-24A02-000 9544624A02000

Not available

HOLDER LID LOCK

95516-24A00-000 9551624A00000

Not available

SCREW, HOLDER

03511-03125-000 0351103125000

Not available

PLATE LID LOCK

95423-24A10-000 9542324A10000

Not available

..LEVER, POCKET OPENER

95447-24A00-000 9544724A00000

Not available

DISCONTINUE
PLATE, LID LOCK NO.1

95424-24A00-000 9542424A00000

Not available

02142-04063
..SCREW 4X6

02142-04065-000

Not available

HINGE POCKET

95443-24A00-000 9544324A00000

Not available

02142-04063
..SCREW 4X6

02142-04065-000

Not available

..SCREW 4X12

02142-04125-000 0214204125000

Not available

DISCONTINUE
LID SIDE BAG POCKET

95448-24A00-000 9544824A00000

Not available

PLATE, LUGGAGE BAND

95470-24A00-000 9547024A00000

Not available

BAND, LUGGAGE LID

95474-24A00-000 9547424A00000

Not available

HOOK, LUGGAGE LID

95475-24A00-000 9547524A00000

Not available

PLATE, LUGGAGE LID

95473-24A00-000 9547324A00000

Not available

SCREW

02142-05124-000

02142-0512A-000

$2,97

Unit Price

NUT

08313-21055-000

08313-2005A-000

$3,97

Unit Price

SET PLATE LOCK SIDE

93124-24A00-000 9312424A00000

Not available

DISCONTINUE
LOCK SET, SIDE BAG

93300-24820-000 9330024820000

Not available

SCREW

02142-05084-000

02142-05083-000

$2,97

Unit Price

EMBLEM, SIDE BAG

68261-24A20-000 6826124A20000

Not available

BOLT

01500-06307-000 0150006307000

$4,97

Unit Price

WASHER

09160-06030-000

09160-06136-000

$3,97

Unit Price

SPACER

09180-06055-000 0918006055000

Not available

CUSHION

09320-09017-000 0932009017000

$7,97

Unit Price

SEAT, SIDE BAG BOTTOM, RH

95416-24A00-000 9541624A00000

Not available

SEAT, SIDE BAG BOTTOM, LH

95417-24A00-000 9541724A00000

Not available

TOOL ASSY

09800-00293-000 0980000293000

Not available

DISCONTINUE
REORDER ROBINSONS

96200-41330-000 9620041330000

Not available

BAG, SIDE LUGGAGE

95450-24A01-000 9545024A01000

Not available

TOP BAND BOW -SAMURA
OIL TANK BAND

09462-00040-000 0946200040000

$13,97

Unit Price

BOLT 6X30

01204-06307-000 0120406307000

Not available

WASHER(6.5X18X2)

09160-06013-000

09160-06121-000

$22,97

Unit Price

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

CAP(OD:12)
PLUG

09250-08013-000 0925008013000

$3,97

Unit Price

LABEL, TRUNK WARNING

68613-24A20-000 6861324A20000

Not available

PACKING SEAT, SIDEBAG

93314-24A01-000 9331424A01000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SIDE BAG GV1400GCG of your Suzuki CAVALCADE 1400 of CAVALCADE. Let us know if you have any questions.
