HEADLIGHT (GSX1400K2 / UK2 / K3 / UK3 E2,E19) REFER TO FIG.30A(E-11) FOR GSX1400K4/K5/UK4/UK5 E2,E19

HEADLIGHT (GSX1400K2 / K3 E24) FOR SUZUKI GSX 1400 2002

INDICATORS (E2,E19) REFER TO FIG.33 (F- 3) FOR E24,%F.NO.100196

Item numbers

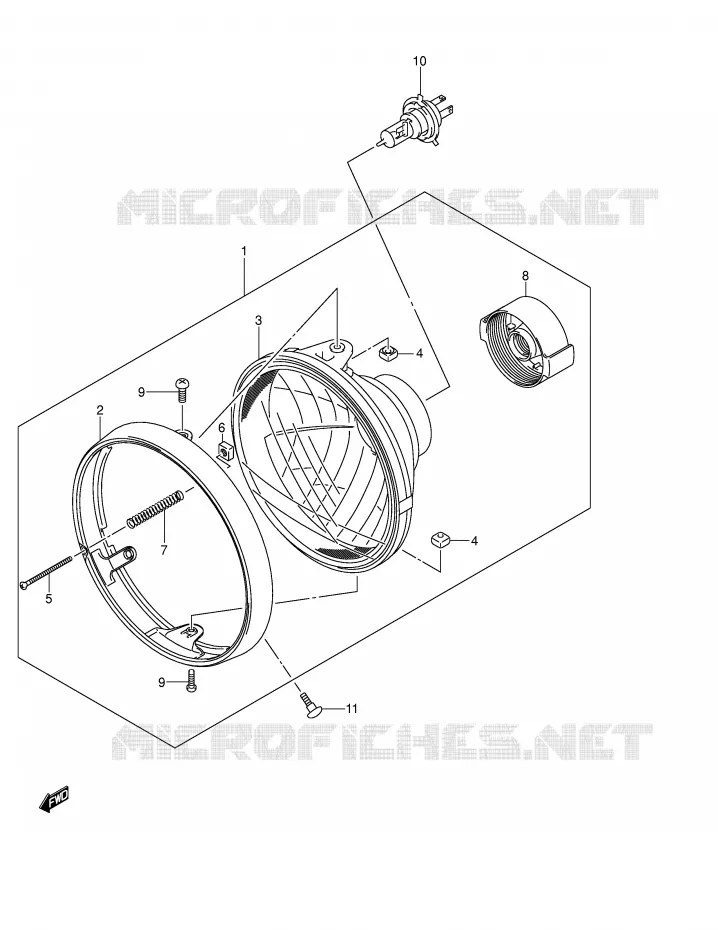

HEADLIGHT (GSX1400K2/K3 E24) Suzuki MOTO 1400 GSX 2002 GSX1400K2(E2)
1
2
3
4
4
5
6
7
8
9
9
10
11
1
35100-19F01-999<br />HEAD LAMP ASSY
35100-19F01-999
HEAD LAMP ASSY

35100-19F00-999   3510019F00999

3510019F00999
Not available
2
RIM
RIM

35111-19F00-000   3511119F00000

3511119F00000

Unit Price

3
LAMP UNIT

35121-19F00-000   3512119F00000

3512119F00000

Unit Price

4
NUT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

5
SCREW, ADJUSTING
SCREW, ADJUSTING

35151-19F00-000   3515119F00000

3515119F00000

Unit Price

6
NUT

35152-45600-000  

35135-45600-000
 3515245600000

Unit Price

7
SPRING
SPRING

35154-13F00-000   3515413F00000

3515413F00000

Unit Price

8
COVER, SOCKET
COVER, SOCKET

35174-19F00-000   3517419F00000

3517419F00000

Unit Price

9
SCREW (5X16)
SCREW (5X16)

35181-19F00-000   3518119F00000

3518119F00000

Unit Price

10
BULB(12V8W, TOKAI DENSO)
BULB (12V, 60/55W)

09471-12185-000  

0947112185000
Not available
11
SCREW
SCREW

09139-05038-000   0913905038000

0913905038000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (GSX1400K2/K3 E24) of your Suzuki GSX 1400 of GSX. Let us know if you have any questions.
