OIL COOLER

FUEL PUMP FOR SUZUKI GSX 1400 2005

FUEL EVAP SYSTEM

Item numbers

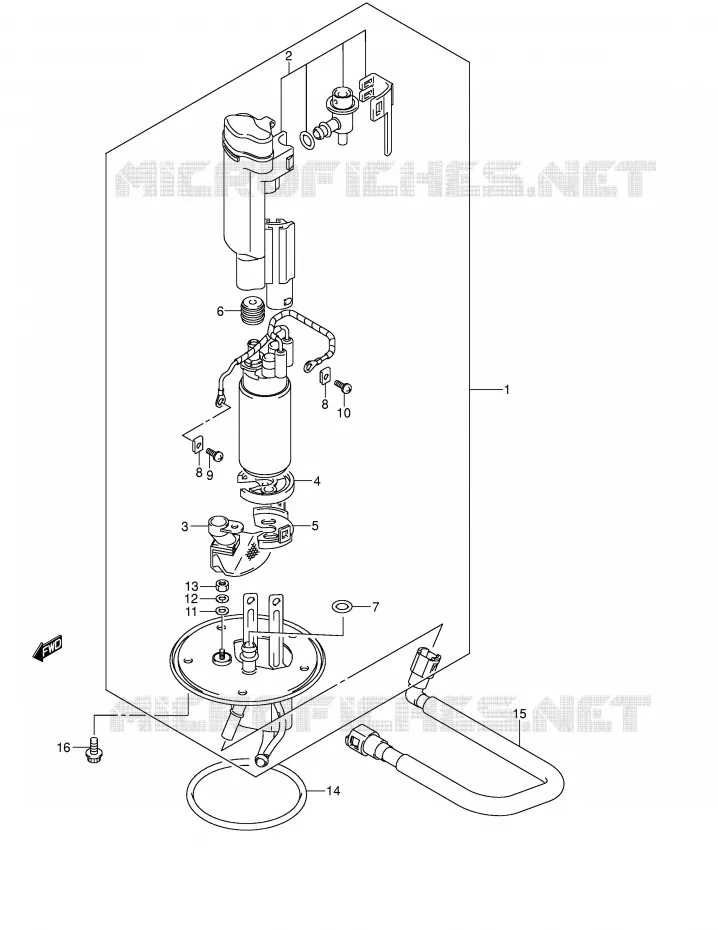

FUEL PUMP Suzuki MOTO 1400 GSX 2005 GSX1400K5(E2)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
1
PUMP ASSY, FUEL

15100-42F01-000   1510042F01000

1510042F01000
Not available
2
FILTER ASSY FUEL

15410-42F00-000   1541042F00000

1541042F00000

Unit Price

3
STRAINER,FUEL PUMP
STRAINER, FUEL PUMP

15420-35F01-000  

15420-24FB0-000
 1542035F01000

Unit Price

4
CUSHION<br />CUSHION, FUEL PUMP
CUSHION
CUSHION, FUEL PUMP

15111-35F00-000   1511135F00000

1511135F00000

Unit Price

5
HOLDER, FUEL PUMP

15112-42F00-000   1511242F00000

1511242F00000

Unit Price

6
BUSH, FUEL PUMP
BUSH, FUEL PUMP

15114-35F00-000   1511435F00000

1511435F00000

Unit Price

7
O RING
O RING

15113-35F00-000   1511335F00000

1511335F00000

Unit Price

8
NUT

15115-35F00-000   1511535F00000

1511535F00000

Unit Price

9
SCREW

15116-35F10-000   1511635F10000

1511635F10000

Unit Price

10
SCREW
SCREW, FUEL GAUGE

15116-35F10-000   1511635F10000

1511635F10000

Unit Price

11
WASHER

15171-35F00-000   1517135F00000

1517135F00000

Unit Price

12
WASHER, SPRING
SPRING WASHER

15172-35F00-000   1517235F00000

1517235F00000

Unit Price

13
NUT

15173-35F00-000   1517335F00000

1517335F00000

Unit Price

14
O RING, FUEL PUMP
O RING, FUEL PUMP

15201-35F00-000   1520135F00000

1520135F00000

Unit Price

15
HOSE, FUEL

15810-42F00-000   1581042F00000

1581042F00000

Unit Price

16
BOLT

07120-06123-000  

07120-0612B-000
 0712006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL PUMP of your Suzuki INTRUDER 1400 of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 1400 GSX 2005
