FRAME FOR SUZUKI GSX 1400 2006

FOOTREST

Item numbers

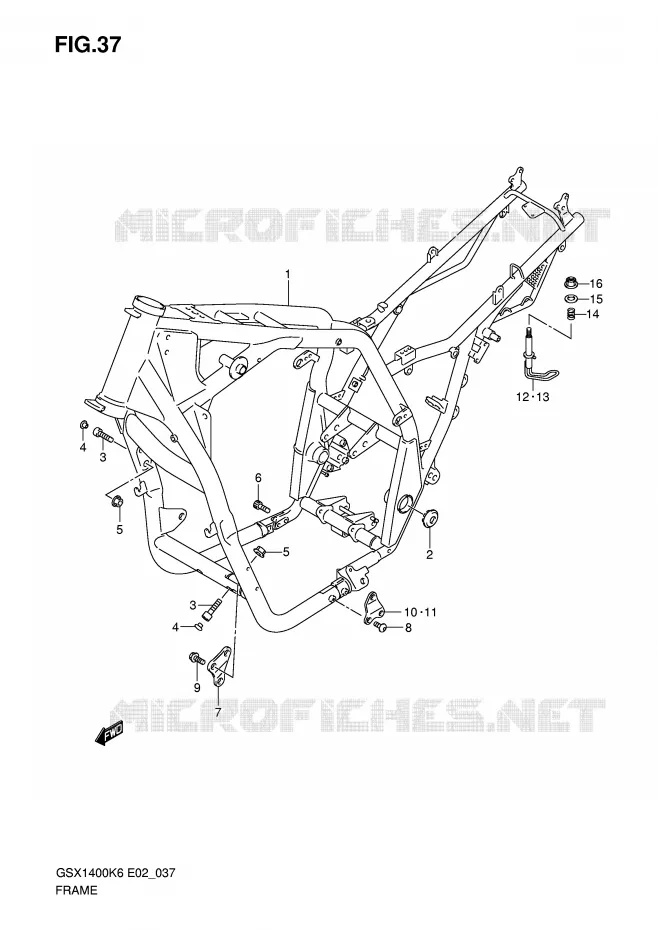

FRAME Suzuki MOTO 1400 GSX 2006 GSX1400U1K6(E2)
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
1
FRAME (BLACK)

41100-42F20-019   4110042F20019

4110042F20019
Not available
2
CAP, FRAME PIVOT
CAP, PIVOT

41899-42F10-000   4189942F10000

4189942F10000

Unit Price

3
BOLT

07130-1035B-000   071301035B000

071301035B000

Unit Price

4
CAP(OD:12)<br />CAP
CAP(OD:12)
CAP

09250-08012-000   0925008012000

0925008012000

Unit Price

5
NUT
NUT

08319-3110B-000   083193110B000

083193110B000

Unit Price

6
BOLT

07130-1025B-000   071301025B000

071301025B000

Unit Price

7
PLATE, MOUNT LH

41921-42F00-000   4192142F00000

4192142F00000
Not available
8
BOLT, FR FOOTREST BRK
BOLT

09106-08167-000   0910608167000

0910608167000

Unit Price

9
BOLT<br />BOLT, FRONT
BOLT
BOLT, FRONT

01550-0816B-000   015500816B000

015500816B000

Unit Price

10
PLATE, MOUNT RH

41931-42F00-000   4193142F00000

4193142F00000
Not available
11
PLATE, MOUNT LH

42941-42F00-000   4294142F00000

4294142F00000
Not available
12
HOOK, RH

46110-42F00-000   4611042F00000

4611042F00000
Not available
13
HOOK, LH

46120-42F00-000   4612042F00000

4612042F00000
Not available
14
SPRING

09440-12018-000   0944012018000

0944012018000

Unit Price

15
WASHER
WASHER

08322-0106B-000   083220106B000

083220106B000

Unit Price

16
NUT
NUT

08319-3106B-000   083193106B000

083193106B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki GSX 1400 of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 1400 GSX 2006

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1400 GSX 2006

Select your Suzuki 2006 model

1400 GSX 2006 GSX1400U1K6(E2)
1400 GSX 2006 GSX1400U1K6(E2)

GSX 1400

Suzuki GSX

Displacement: 1400 cc
Year: 2006
Model code GSX1400U1K6(E2)
