REAR BRAKE MASTER CYLINDER (MODEL H / J / K / L / M / N / P / R) REFER TO FIG.60A(K-6) FOR MODEL S

REAR BRAKE MASTER CYLINDER (MODEL S) FOR SUZUKI INTRUDER 1400 1987

OPTIONS

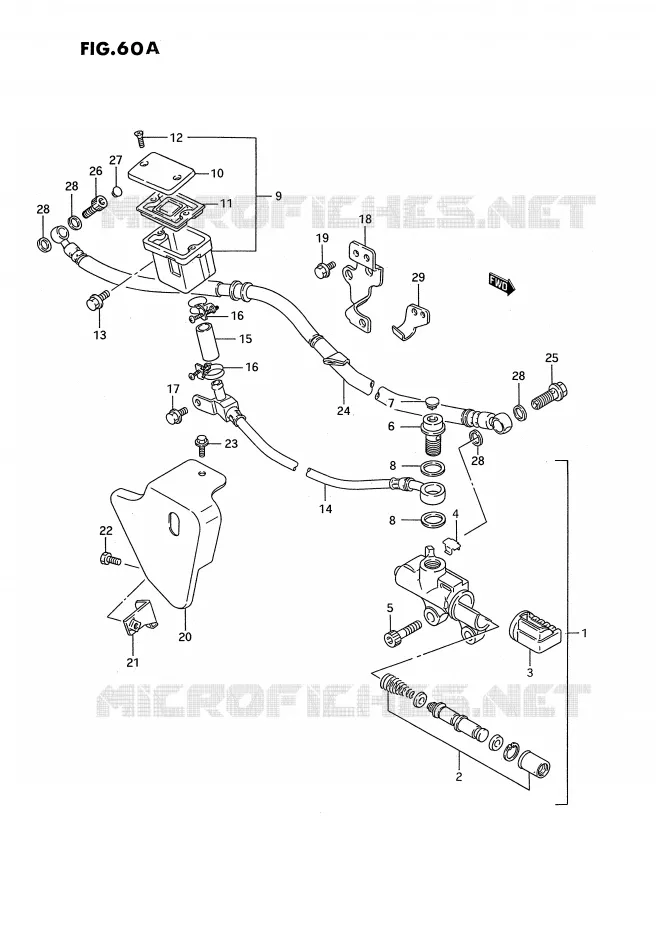

REAR BRAKE MASTER CYLINDER (MODEL S) Suzuki MOTO 1400 INTRUDER 1987 VS1400GLPH(E2)
1
CYLINDER ASSY, RR MASTER
CYLINDER ASSY, REAR MASTER

69600-38B01-000   6960038B01000

6960038B01000

Unit Price

2
PISTON & CUP SET

69600-38810-000   6960038810000

6960038810000

Unit Price

3
BOOT

69691-38B00-000   6969138B00000

6969138B00000

Unit Price

4
PLATE, STOP

69696-38B00-000   6969638B00000

6969638B00000

Unit Price

5
BOLT (8X23)

09106-08081-000   0910608081000

0910608081000
Not available
6
BOLT

69661-38B00-000  

09360-14013-000
 6966138B00000

Unit Price

7
CAP

09250-08014-000   0925008014000

0925008014000

Unit Price

8
WASHER, BRAKE FLUID
WASHER

69662-38B00-000   6966238B00000

6966238B00000

Unit Price

9
TANK ASSY, RESERVOIR
TANK ASSY, RESERVOIR

69740-38B21-000   6974038B21000

6974038B21000

Unit Price

10
CAP
CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

11
DIAPHRAGM<br />PIAPHRAGM
DIAPHRAGM
PIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

12
SCREW
SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

13
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
14
HOSE, RESERVOIR TANK
HOSE, TANK

69730-38B00-000   6973038B00000

6973038B00000

Unit Price

15
DISCONTINUE
HOSE, TANK

69731-38B00-000   6973138B00000

6973138B00000
Not available
16
CLAMP

09400-16302-000  

09400-16304-000
 0940016302000

Unit Price

17
01550-0616A
BOLT, HOSE

01550-06163-000  

0155006163000
Not available
18
DISCONTINUE
BRACKET, TANK

69750-38B00-000   6975038B00000

6975038B00000
Not available
19
BOLT

01580-08163-000  

01580-0816A-000
 0158008163000

Unit Price

20
COVER, RESERVOIR TANK
COVER, TANK

69795-38B10-000   6979538B10000

6979538B10000

Unit Price

21
BRACKET, COVER

69790-38B00-000   6979038B00000

6979038B00000
Not available
22
SCREWM6X1X10

09128-06004-000  

09128-06044-000
 0912806004000

Unit Price

23
BOLT, 6X10
BOLT, UPPER

01547-06107-000   0154706107000

0154706107000

Unit Price

24
HOSE, RR BRAKE

69480-38B01-000  

69480-38B03-000
 6948038B01000

Unit Price

25
UNION

09360-10017-000  

09360-10061-000
 0936010017000

Unit Price

26
BOLT (10X1.00X24)

09360-10028-000   0936010028000

0936010028000
Not available
27
CAP(OD:12)<br />CAP
CAP(OD:12)
CAP

09250-08012-000   0925008012000

0925008012000

Unit Price

28
WASHER
WASHER

09161-10009-000   0916110009000

0916110009000

Unit Price

29
DISCONTINUE
CLAMP, HOSE

69244-38B00-000   6924438B00000

6924438B00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
