Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MUFFLER (MODELE H / J / K / L / M / N / P / R)

OIL PUMP - FUEL PUMP FOR SUZUKI INTRUDER 1400 1990

OIL COOLER

Item numbers

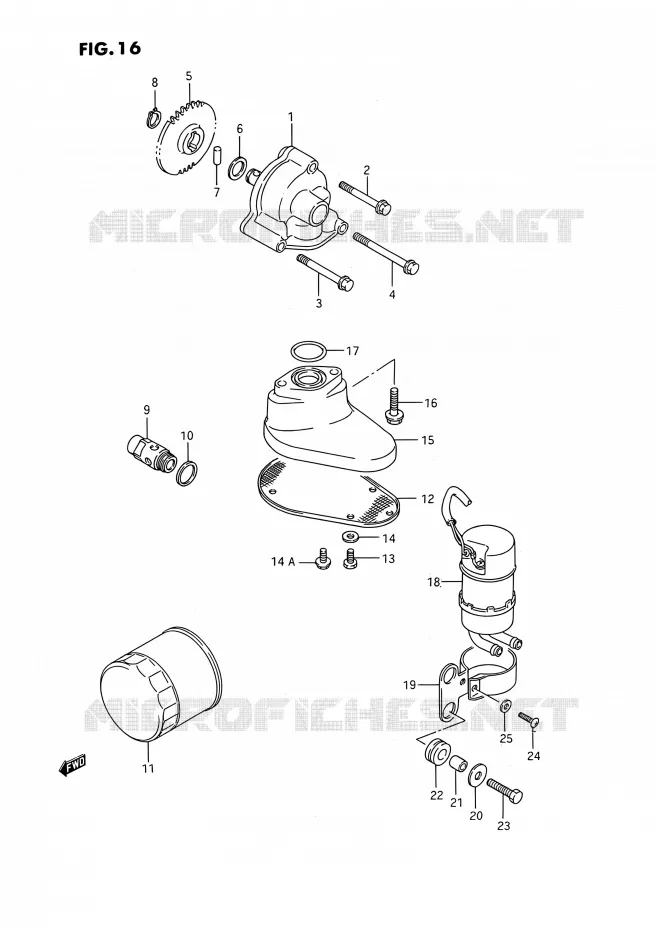

OIL PUMP - FUEL PUMP Suzuki MOTO 1400 INTRUDER 1990 VS1400GLP R/VS1400GLF R (E01,E04,E17,E21,E22,E24,E34)
1
2
3
4
5
6
7
8
9
10
11
12
14
14
15
16
17
18
19
20
21
22
23
24
1
PUMP ASSY, ENGINE OIL
PUMP ASSY, OIL

16400-38B00-000   1640038B00000

1640038B00000

Unit Price

2
BOLT

01547-06453-000  

01547-0645B-000
 0154706453000

Unit Price

3
BOLT

01547-06553-000  

01547-0655B-000
 0154706553000

Unit Price

4
BOLT

01547-06653-000  

01547-0665B-000
 0154706653000

Unit Price

5
DISCONTINUE

16331-38B00-000  

1633138B00000
Not available
6
WASHER
WASHER

08221-12205-000   0822112205000

0822112205000
Not available
7
PIN
PIN

09261-05006-000   0926105006000

0926105006000

Unit Price

8
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

9
DISCONTINUE
VALVE ASSY, OIL RELIEF

16440-24A01-000   1644024A01000

1644024A01000
Not available
10
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

11
FILTER ASSY, ENGINE OIL

16510-06B01-000  

16510-07J10-000
 1651006B01000

Unit Price

12
DISCONTINUE
STRAINER, OIL

16520-38B10-000   1652038B10000

1652038B10000
Not available
14
DISCONTINUE
BOLT

01550-05103-000  

0155005103000
Not available
15
DISCONTINUE
HOLDER, OIL STRAINER

16525-38B10-000   1652538B10000

1652538B10000
Not available
16
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

17
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

18
PUMP ASSY, FUEL

15100-38A00-000  

15100-38A01-000
 1510038A00000

Unit Price

19
DISCONTINUE
BRACKET, FUEL PUMP

15110-38B01-000   1511038B01000

1511038B01000
Not available
20
WASHER 6.5X20X1.6

09160-06102-000  

09160-06088-000
 0916006102000

Unit Price

21
SPACER, 6.5X10X9.4

09180-06167-000  

09180-06286-000
 0918006167000

Unit Price

22
CUSHION
CUSHION

09320-10015-000   0932010015000

0932010015000

Unit Price

23
BOLT
BOLT

01500-06257-000   0150006257000

0150006257000

Unit Price

24
SCREW

02142-04167-000   0214204167000

0214204167000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1400 INTRUDER 1990
