Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT (E1) REFER TO FIG.30B(F-7) FOR MODEL S

TAIL LIGHT (MODEL S) FOR SUZUKI INTRUDER 1400 1991

WIRING HARNESS (MODEL H / J / K / L / M / N / P / R) REFER TO FIG.31A(F-10) FOR MODEL S

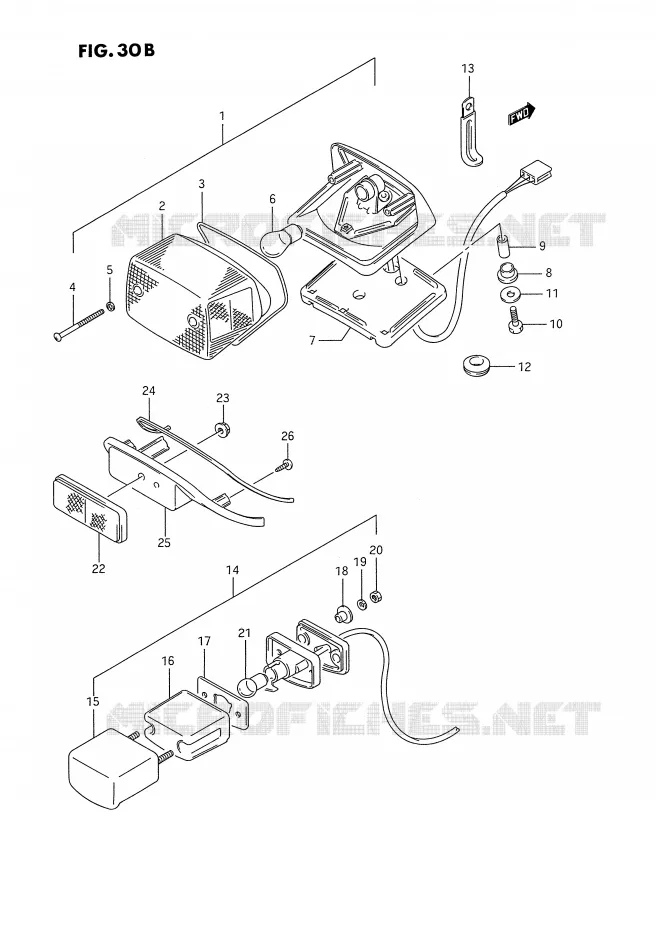

TAIL LIGHT (MODEL S) Suzuki MOTO 1400 INTRUDER 1991 VS1400GLFM(E2)
1
LAMP ASSY, REAR COMBINATION

35710-38B20-000   3571038B20000

3571038B20000
Not available
2
LENS

35712-38A20-000   3571238A20000

3571238A20000
Not available
3
GASKET

35713-38A00-000  

35713-31D00-000
 3571338A00000

Unit Price

4
SCREW

35723-44130-000   3572344130000

3572344130000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V 21/5W)
BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
CUSHION

35765-38B20-000   3576538B20000

3576538B20000
Not available
8
CUSHION

35764-26470-000   3576426470000

3576426470000

Unit Price

9
SPACER

35766-44720-000   3576644720000

3576644720000
Not available
10
BOLT

01500-06303-000  

01500-0630A-000
 0150006303000

Unit Price

11
WASHER

09160-06057-000  

09160-06109-000
 0916006057000

Unit Price

12
GROMMET

09308-12009-000   0930812009000

0930812009000

Unit Price

13
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

14
LAMP ASSY, LICENCE

35910-38A21-000   3591038A21000

3591038A21000
Not available
15
DISCONTINUE
COVER, LICENSE LAMP

35917-38A20-000   3591738A20000

3591738A20000
Not available
16
LENS
LENS

35912-38A20-000   3591238A20000

3591238A20000
Not available
17
GASKET,LICENSE LAMP<br />GASKET
GASKET, LICENSE LAMP
GASKET

35913-38A30-000   3591338A30000

3591338A30000

Unit Price

18
DISCONTINUE
SPACER

35766-38A30-000   3576638A30000

3576638A30000
Not available
19
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

20
NUT
NUT

08310-00047-000   0831000047000

0831000047000

Unit Price

21
BULB(12V10W)
BULB

09471-12140-000  

0947112140000
Not available
22
REFLECTOR ASSY,RR<br />REFLEX REFLECTOR, REAR
REFLECTOR ASSY, RR
REFLEX REFLECTOR, REAR

35970-24D60-000   3597024D60000

3597024D60000

Unit Price

23
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

24
CUSHION

35983-38B20-000   3598338B20000

3598338B20000
Not available
25
SPACER

35977-38B20-000   3597738B20000

3597738B20000
Not available
26
SCREW

03511-04163-000  

03511-0416A-000
 0351104163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
