TRANSMISSION

DRIVESHAFT FOR SUZUKI INTRUDER 1400 1998

GEAR SHIFTING ASSY

Item numbers

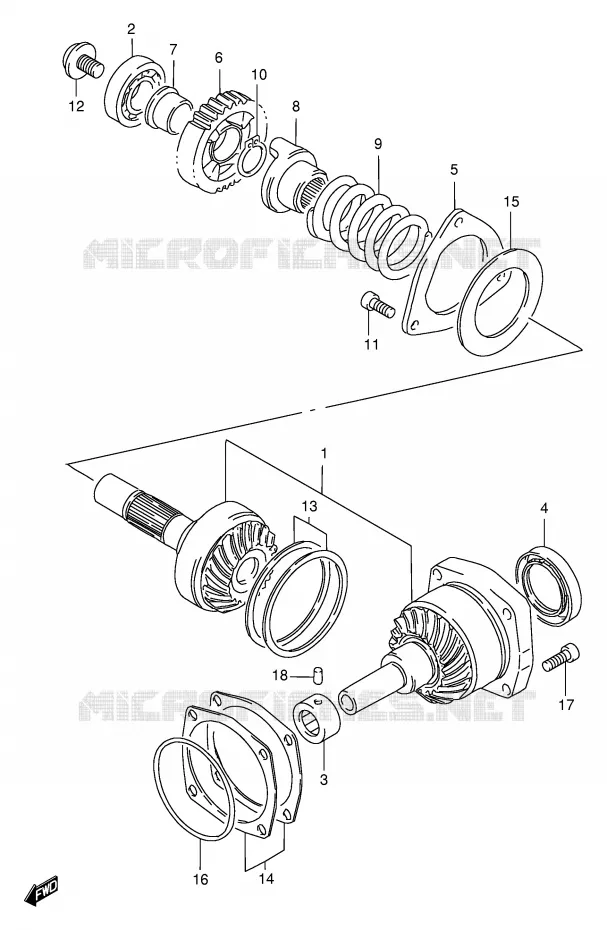

DRIVESHAFT Suzuki MOTO 1400 INTRUDER 1998 VS1400GLPW(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
GEAR & HOUSING SET, SECONDARY

24900-38830-000   2490038830000

2490038830000
Not available
2
BEARING (25X62X17)

09262-25080-000   0926225080000

0926225080000

Unit Price

3
BEARING (20X34X16)

09263-20038-000   0926320038000

0926320038000

Unit Price

4
SEAL, OIL
OIL SEAL (44X68X8)

09283-44010-000   0928344010000

0928344010000

Unit Price

5
DISCONTINUE
STOPPER, BEARING

24931-38B00-000   2493138B00000

2493138B00000
Not available
6
GEAR, OVER DRIVING DRIVEN

24631-38B00-000   2463138B00000

2463138B00000

Unit Price

7
DISCONTINUE
BUSH

24632-38B01-000   2463238B01000

2463238B01000
Not available
8
DISCONTINUE
DOG, OUTPUT CAM

24922-38B01-000   2492238B01000

2492238B01000
Not available
9
SPRING

09440-57001-000   0944057001000

0944057001000
Not available
10
DISCONTINUE
CIRCLIP

08331-31266-000  

0833131266000
Not available
11
BOLT

07130-08203-000  

07130-0820B-000
 0713008203000

Unit Price

12
BOLT (14X21)
BOLT (14X21)

09103-14005-000   0910314005000

0910314005000

Unit Price

13
SHIM SET, SEC DRIVE

24935-38820-000   2493538820000

2493538820000

Unit Price

14
SHIM SET, SEC DRIVEN
SHIM SET, SEC DRIVE

24945-38810-000   2494538810000

2494538810000

Unit Price

15
WASHER (57X90X3)

09160-57001-000   0916057001000

0916057001000
Not available
16
O RING
O RING (D:3.7, ID:76.5)

09280-78003-000   0928078003000

0928078003000

Unit Price

17
BOLT

07130-08253-000  

07130-0825B-000
 0713008253000

Unit Price

18
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
