BATTERY

ELECTRICAL FOR SUZUKI INTRUDER 1400 2003

SPEEDOMETER

Item numbers

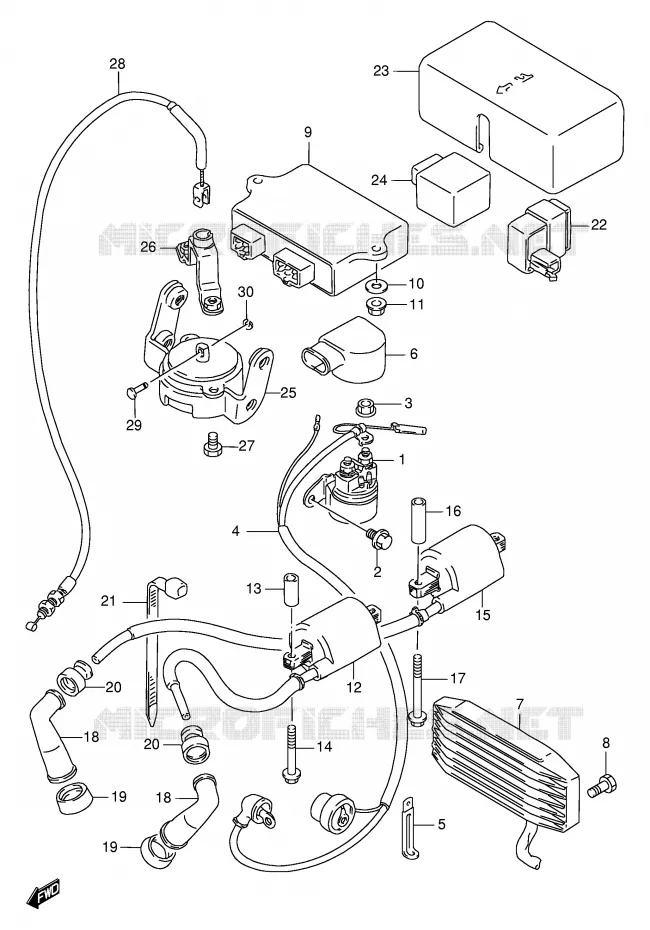

ELECTRICAL Suzuki MOTO 1400 INTRUDER 2003 VS1400GLPK3(E2)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
1
RELAY ASSY,STARTING MOTOR<br />RELAY, STARTING MOTOR
RELAY ASSY, STARTING MOTOR
RELAY, STARTING MOTOR

31800-49100-000   3180049100000

3180049100000

Unit Price

2
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

3
NUT

08361-35068-000  

08361-3506A-000
 0836135068000

Unit Price

4
DISCONTINUE
LEAD WIRE, STARTING MOTOR

33850-38B00-000   3385038B00000

3385038B00000
Not available
5
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

6
CAP, STARTER RELAY TERMINAL
CAP, TERMINAL

33624-49401-000   3362449401000

3362449401000

Unit Price

7
RECTIFIER ASSY
RECTIFIER, REGULATOR

32800-12E01-000   3280012E01000

3280012E01000

Unit Price

8
BOLT

01500-06103-000  

01500-0610B-000
 0150006103000

Unit Price

9
DISCONTINUE
IGNITER UNIT

32900-38B41-000   3290038B41000

3290038B41000
Not available
10
WASHER, 6.5X14X2.3
WASHER (6.5X13X2.3)

09160-06127-000   0916006127000

0916006127000

Unit Price

10
WASHER (6.5X16X4)

09160-06131-000   0916006131000

0916006131000

Unit Price

11
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

12
COIL ASSY, IGNITION RR

33410-38B00-000  

33410-38B01-000
 3341038B00000

Unit Price

13
SPACER (6.4X10X22)

09180-06178-000   0918006178000

0918006178000
Not available
14
BOLT

01570-05453-000   0157005453000

0157005453000
Not available
15
COIL ASSY, IGNITION

33420-38B00-000  

33420-38B01-000
 3342038B00000

Unit Price

16
SPACER (6.4X10X32)
SPACER (6.4X10X32)

09180-06179-000   0918006179000

0918006179000
Not available
17
BOLT

01570-05553-000   0157005553000

0157005553000
Not available
18
CAP, SPARK PLUG

33510-38B00-000   3351038B00000

3351038B00000

Unit Price

19
SEAL, SPARK PLUG

33541-24510-000  

33541-47D00-000
 3354124510000

Unit Price

20
SEAL, HIGHTENSION CORD
SEAL, HIGHTENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

21
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

22
RELAY ASSY, FUEL CUT
RELAY, FUEL CUT

33950-38B00-000   3395038B00000

3395038B00000

Unit Price

23
COVER, RELAY

33951-38B00-000  

33951-38B01-000
 3395138B00000

Unit Price

24
CONTROL UNIT, DECOMP

32910-24B10-000   3291024B10000

3291024B10000

Unit Price

25
SOLENOID ASSY, DECOMP

33970-38B00-000   3397038B00000

3397038B00000

Unit Price

26
DISCONTINUE
BRACKET, DECOMP SOLENOID

33971-38B00-000   3397138B00000

3397138B00000
Not available
27
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

28
CABLE ASSY, DECOMP FR

58900-38B01-000  

58900-38B20-000
 5890038B01000

Unit Price

29
PIN(4X12.5)
PIN

09209-04020-000   0920904020000

0920904020000

Unit Price

30
E RING

08332-11033-000  

08332-1103A-000
 0833211033000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
