TRANSMISSION

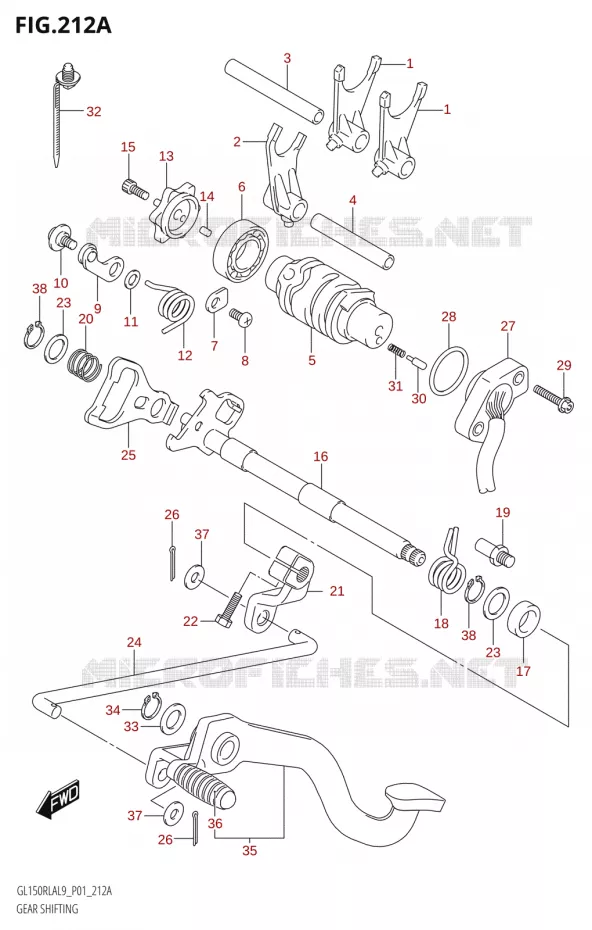

GEAR SHIFTING ASSY FOR SUZUKI INTRUDER 150 2019

STAND

Item numbers

FORK, GEAR SHIFT NO.1

25211-34J10-000 2521134J10000

Not available

FORK, GEAR SHIFT NO.3

25231-34J10-000 2523134J10000

Not available

SHAFT, GEAR SHIFT FORK NO.1

25411-34J00-000 2541134J00000

Not available

SHAFT, GEAR SHIFT FORK NO.2

25421-34J00-000 2542134J00000

Not available

CAM, GEAR SHIFT

25311-34J00-000 2531134J00000

Not available

BEARING, RH

08110-69050-000

08113-69050-000

$52,97

Unit Price

RETAINER

24741-20A10-000

24741-21A00-000

$4,97

Unit Price

SCREW

02112-0612A-000

02112-0612B-000

$2,97

Unit Price

STOPPER, GEAR SHIFT CAM

25350-34J20-000 2535034J20000

Not available

BOLT (6X14.3)

25357-34J00-000 2535734J00000

Not available

WASHER, THRUST
WASHER

08211-06121-000 0821106121000

$3,97

Unit Price

SPRING, GEAR SHIFT CAM STOPPER

25355-34J10-000 2535534J10000

Not available

PLATE, GEAR SHIFT CAM

25381-34J00-000 2538134J00000

Not available

04221-04089-000 0422104089000

$2,97

Unit Price

BOLT

07130-0616A-000

07130-0616B-000

$6,97

Unit Price

SHAFT, GEAR SHIFT

25510-34J10-000 2551034J10000

Not available

OIL SEAL (14X22X6)

09283-14011-000 0928314011000

Not available

SPRING, SHIFT SHAFT RETURN

25518-34J00-000 2551834J00000

Not available

STOPPER, GEAR SHIFT ARM

25671-28G00-000 2567128G00000

Not available

SPRING, GEAR SHIFT PLATE RETURN

25515-34J00-000 2551534J00000

Not available

ARM, GEAR SHIFT LINK

25520-27K00-000 2552027K00000

Not available

BOLT, SHIFT LEVER

25616-28G00-000 2561628G00000

Not available

WASHER, GEAR SHIFT SH
SHIM (14X22X1.0)

09181-14167-000 0918114167000

$3,97

Unit Price

ROD, GEAR SHIFT LINK

25525-27K00-000 2552527K00000

Not available

PLATE, GEAR SHIFT CAM DRIVE

25512-28G10-000 2551228G10000

Not available

04111-2015A-000 041112015A000

$2,97

Unit Price

BASE ASSY, GEAR SHIFT TERM

37720-34J00-000 3772034J00000

Not available

O RING
O RING (D:2.4, ID:26.2)

09280-26005-000 0928026005000

Not available

BOLT

07120-0520A-000 071200520A000

Not available

K S PAWL ROLLER
PIN (5X15.5)

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

CLAMP (L:170)

09407-15L01-000 0940715L01000

Not available

SEAL WASHER
WASHER (12.5X20X1.0)

09160-12011-000

Not available

CIRCLIP

08331-3112A-000 083313112A000

$2,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-27K00-000 2560027K00000

Not available

.RUBBER, GEAR SHIFT LEVER

25652-05J00-000 2565205J00000

Not available

WASHER

08322-0108A-000

Not available

CIRCLIP

08331-31149-000 0833131149000

Not available
