HANDLEBAR FAIRING

REAR FENDER FOR SUZUKI BURGMAN 150 1998

LABEL (MODEL T / V) REFER TO FIG.41A(F-8) FOR MODEL W/X/Y

Item numbers

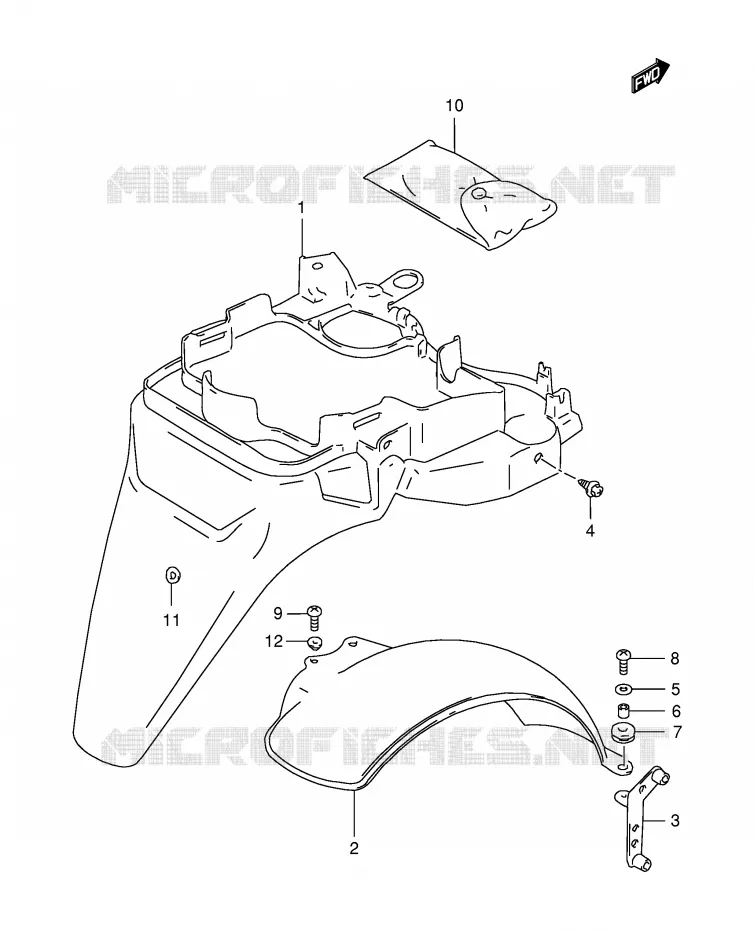

REAR FENDER Suzuki SCOOTER 150 BURGMAN 1998 AN150W(E34)
1
1
2
3
3
4
4
5
6
7
8
9
10
11
12
1
BODY, REAR FENDER UPPER (GRAY)

63111-20E00-19U   6311120E0019U

6311120E0019U
Not available
1
BODY, REAR FENDER UPPER (BLACK)

63111-20E00-291   6311120E00291

6311120E00291
Not available
2
BODY, REAR FENDER LOWER

63211-20E00-000   6321120E00000

6321120E00000
Not available
3
BRACKET, REAR FENDER LOWER

63220-20E02-000   6322020E02000

6322020E02000
Not available
3
BRACKET, REAR FENDER LOWER

63220-20E03-000   6322020E03000

6322020E03000
Not available
4
BOLT
BOLT

09111-06066-000   0911106066000

0911106066000

Unit Price

4
BOLT,6X16<br />BOLT
BOLT, 6X16
BOLT

09113-06001-000   0911306001000

0911306001000

Unit Price

5
WASHER (6.5X24X1.2)

09160-06114-000   0916006114000

0916006114000

Unit Price

6
SPACER (6.1X8X7)

09180-06247-000   0918006247000

0918006247000

Unit Price

7
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08028-000  

09320-08514-000
 0932008028000

Unit Price

8
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

9
SCREW

03541-05163-000  

03541-0516B-000
 0354105163000

Unit Price

10
DISCONTINUE
TOOL ASSY

09800-21007-000  

0980021007000
Not available
11
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

12
WASHER
WASHER

09169-05012-000   0916905012000

0916905012000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki BURGMAN 150 of BURGMAN. Let us know if you have any questions.
