COOLING FAN

STARTER MOTOR FOR SUZUKI UE 150 2001

IGNITION

Item numbers

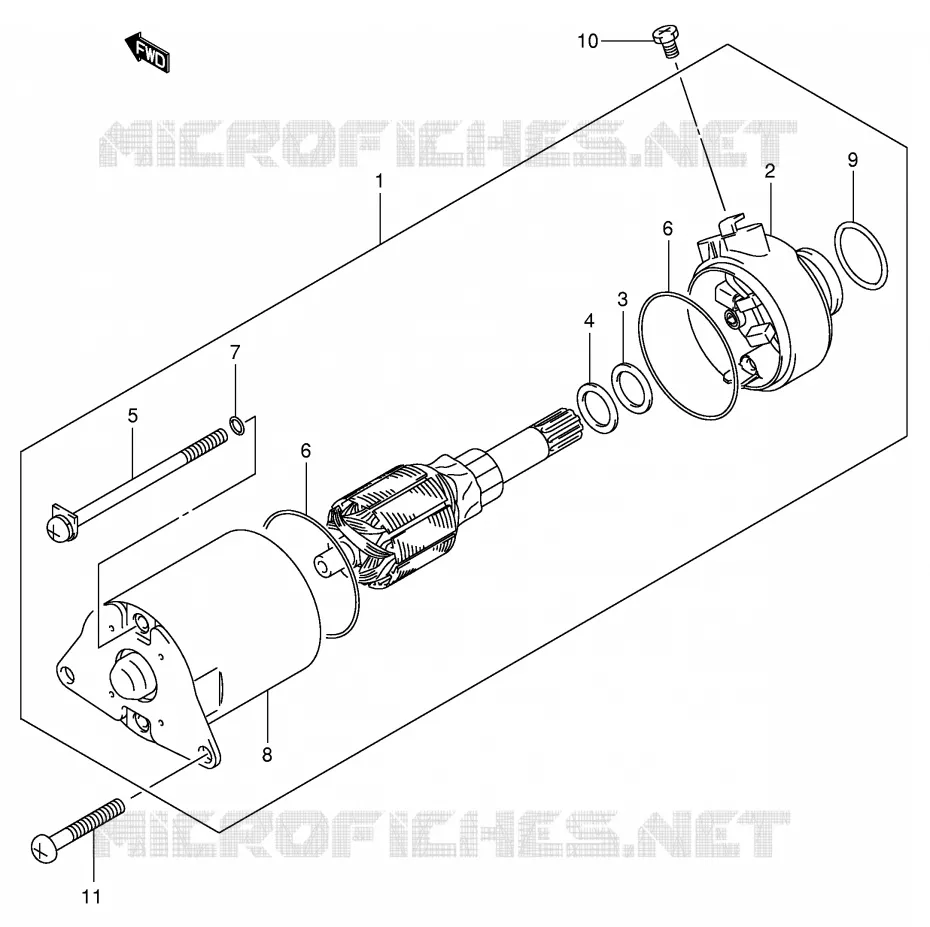

STARTER MOTOR Suzuki SCOOTER 150 UE 2001 UE150CTK1(P19)

1

STARTER ASSY

31100-34F00-000 3110034F00000

Not available

2

FRONT BRACKET ASSY

31150-34F00-000 3115034F00000

Not available

3

WASHER

31361-34F00-000 3136134F00000

Not available

4

WASHER

31361-34F10-000 3136134F10000

Not available

5

SET BOLT

31281-34F00-000 3128134F00000

Not available

6

O RING

31264-34F00-000 3126434F00000

Not available

7

O RING

31156-34F00-000 3115634F00000

Not available

8

REAR BRACKET ASSY

31175-34F00-000 3117534F00000

Not available

9

RING, STARTER MOTOR
O RING (D:3.0, ID:24.5)

09280-24003-000 0928024003000

$2,97

Unit Price

10

SCREW (5X8)

09137-05004-000 0913705004000

$3,97

Unit Price

11

SCREW

02112-06253-000

02112-0625A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Suzuki of UE. Let us know if you have any questions.
