TRANSMISSION (MODEL K5) REFER TO FIG.20A(D- 5) FOR MODEL K6/K7/K8/K9

TRANSMISSION (MODEL K6 / K7 / K8 / K9) FOR SUZUKI BOULEVARD 1500 2005

DRIVESHAFT

SHAFT, COUNTER(NT:12)
COUNTERSHAFT (NT:12)

24120-38B20-000 2412038B20000

$289,97

Unit Price

O RING (D:1.9, ID:16.6)

09280-17004-000 0928017004000

$4,97

Unit Price

GEAR, 2ND DRIVE (NT:17)

24221-10F00-000 2422110F00000

$188,97

Unit Price

GEAR, 3RD DRIVE (NT:21)

24231-10F00-000 2423110F00000

$179,97

Unit Price

BUSH(28X32X2)
BUSH, 3RD DRIVE GEAR

09301-28001-000 0930128001000

$36,97

Unit Price

GEAR, 4TH DRIVE
GEAR, 4TH DRIVE (NT:24)

24241-38B30-000 2424138B30000

$213,97

Unit Price

BUSH, 4TH DRIVE GEAR

24242-38B10-000 2424238B10000

$36,97

Unit Price

SHIM(22X32X1)
WASHER (22X32X1.0)

09181-22195-000 0918122195000

$6,97

Unit Price

GEAR, 5TH DRIVE (NT:26)

24251-38B20-000 2425138B20000

$130,97

Unit Price

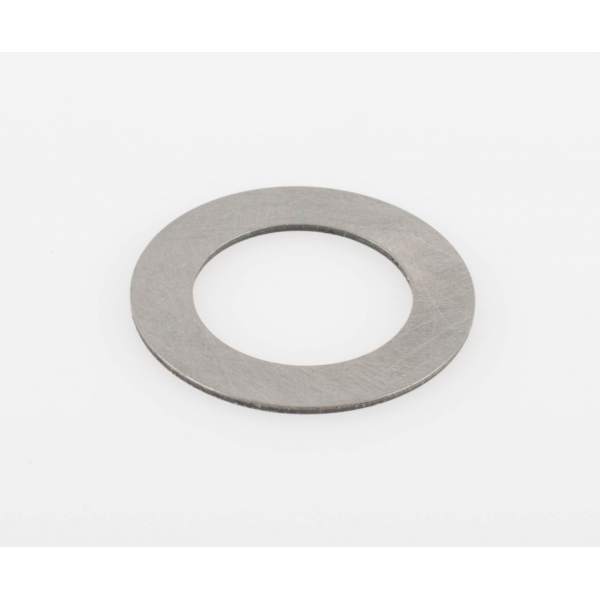

WASHER
WASHER (20X32X1.0)

09181-20223-000 0918120223000

$4,97

Unit Price

CIRCLIP

08331-3128A-000

08331-31289-000

$3,97

Unit Price

BEARING(25X62X17)
BEARING, RH (25X62X17)

09262-25080-000 0926225080000

$40,97

Unit Price

RETAINER, CNTR SHAFT BEARING
RETAINER, COUNTER

24741-38A00-000 2474138A00000

$5,97

Unit Price

SCREW
SCREW, COUNTER

02112-0612B-000 021120612B000

$2,97

Unit Price

BEARING(20X52X15)
BEARING, LH (20X52X15)

09262-20080-000 0926220080000

$40,97

Unit Price

SHAFT, DRIVE
DRIVE SHAFT

24131-38B20-000 2413138B20000

$270,97

Unit Price

BOLT (10X24)

09103-10112-000 0910310112000

$6,97

Unit Price

WASHER

08211-10305-000 0821110305000

$5,97

Unit Price

DISCONTINUE
GEAR, 1ST DRIVEN (NT:36)

24311-10F00-000 2431110F00000

Not available

DISCONTINUE
BUSH, 1ST & 5TH

24332-24A00-000 2433224A00000

Not available

WASHER, LOCK
WASHER

09167-28001-000 0916728001000

$6,97

Unit Price

CIRCLIP

08331-3128A-000

08331-31289-000

$3,97

Unit Price

DISCONTINUE
GEAR, 2ND DRIVEN (NT:31)

24321-10F00-000 2432110F00000

Not available

BUSH, 3RD DRIVEN GEAR
BUSH, 2ND DRIVEN GEAR

24332-49000-000 2433249000000

$17,97

Unit Price

DISCONTINUE
GEAR, 3RD DRIVEN (NT:28)

24331-10F00-000 2433110F00000

Not available

WASHER
LOCK WASHER, RH

09169-28001-000 0916928001000

$5,97

Unit Price

WASHER, LOCK
LOCK WASHER, RH

09167-28002-000 0916728002000

$6,97

Unit Price

DISCONTINUE
GEAR, 4TH DRIVEN (NT:25)

24341-10F00-000 2434110F00000

Not available

DISCONTINUE
GEAR, 5TH DRIVEN (NT:23)

24351-10F00-000 2435110F00000

Not available

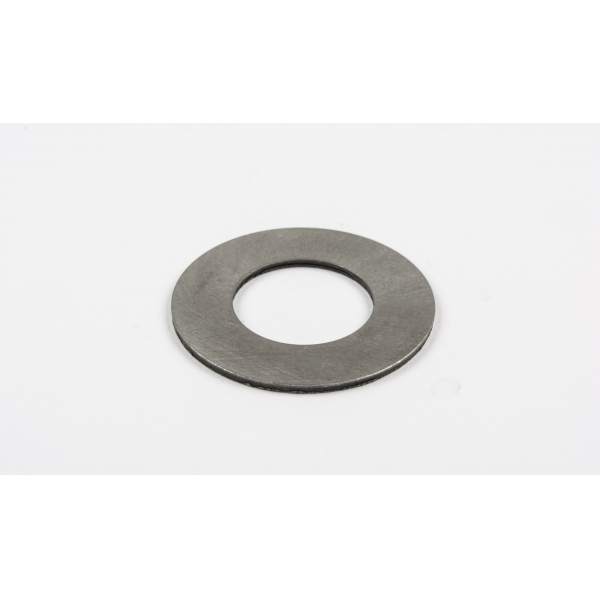

WASHER

08211-20382-000 0821120382000

$5,97

Unit Price

SPACER
WASHER (22X32X3)

09160-22032-000 0916022032000

$7,97

Unit Price

GEAR, OVER DRIVING DRIVE(NT:34)
GEAR, OVERDRIVING (NT:34)

24621-38B00-000 2462138B00000

$217,97

Unit Price

BEARING, 22X56X16
BEARING, RH (22X56X16)

09262-22029-000 0926222029000

$73,97

Unit Price

DISCONTINUE
RETAINER, DRIVE BEARING

24741-38401-000 2474138401000

Not available

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,35

Unit Price

BEARING(20X52X15)
BEARING, LH (20X52X15)

09262-20080-000 0926220080000

$40,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (MODEL K6/K7/K8/K9) of your Suzuki of BOULEVARD. Let us know if you have any questions.
