TIMING

THROTTLE BODY FOR SUZUKI BOULEVARD 1500 2007

AIR FILTER

THROTTLE BODY KIT

13401-10F00-000

13401-10F01-000

$1 666,97

Unit Price

BODY, THROTTLE

13401-10F10-000 1340110F10000

Not available

INJECTOR ASSY

15710-10G00-000 1571010G00000

$412,97

Unit Price

O RING

15721-10G00-000 1572110G00000

$13,97

Unit Price

O RING

15722-10G00-000 1572210G00000

$19,97

Unit Price

SCREW, THROTTLE COVER

13602-34F50-000 1360234F50000

$4,97

Unit Price

PIPE, FUEL

13471-10F00-000 1347110F00000

$44,97

Unit Price

PIPE, FUEL

13471-10F10-000 1347110F10000

$45,97

Unit Price

DISCONTINUE
JOINT

13473-10F00-000 1347310F00000

Not available

DISCONTINUE
PLUG

13476-10F00-000 1347610F00000

Not available

DISCONTINUE
PLATE

13428-10F00-000 1342810F00000

Not available

O RING

15721-24F00-000 1572124F00000

$11,97

Unit Price

DISCONTINUE
SCREW

13602-10F00-000 1360210F00000

Not available

SCREW

13602-10F10-000 1360210F10000

$4,97

Unit Price

DISCONTINUE
SCREW, IDLE

13605-10F00-000 1360510F00000

Not available

SPRING

13268-35F00-000 1326835F00000

$8,97

Unit Price

SCREW, ADJUST
ADJUST SCREW

13279-10G00-000 1327910G00000

$11,97

Unit Price

SPRING

13271-10G00-000 1327110G00000

$4,97

Unit Price

O RING

13295-10G00-000 1329510G00000

$3,97

Unit Price

SENSOR ASSY, THROTTLE MAIN

13580-18G00-000 1358018G00000

$196,97

Unit Price

SENSOR ASSY, THROTTLE NO.1

13580-40F30-000

13580-40F31-000

$243,97

Unit Price

O RING

13575-40F00-000 1357540F00000

$6,97

Unit Price

SCREW

13605-40F00-000 1360540F00000

$5,97

Unit Price

PIPE ASSY, FUEL

13680-10F00-000 1368010F00000

$114,97

Unit Price

13683-10F30

13683-10F30-000

Not available

JOINT

13685-36E50-000 1368536E50000

$18,97

Unit Price

HOSE

13683-10F21-000 1368310F21000

Not available

HOSE

13683-10F11-000 1368310F11000

Not available

CLIP

13693-24F00-000 1369324F00000

$2,97

Unit Price

SENSOR, PRESSURE

18591-42F00-000 1859142F00000

$380,97

Unit Price

HOLDER, SENSOR
HOLDER

18595-42F00-000 1859542F00000

$19,97

Unit Price

PLATE, STAY

13565-10F10-000 1356510F10000

Not available

SCREW, STOP
SCREW

13267-10G00-000 1326710G00000

$12,97

Unit Price

NUT

13661-10G00-000 1366110G00000

$4,97

Unit Price

SCREW

13601-10G00-000 1360110G00000

$4,97

Unit Price

DISCONTINUE
SPRING

13426-35F10-000 1342635F10000

Not available

LEVER, LINK

13413-10F10-000 1341310F10000

Not available

WASHER

13427-35F10-000 1342735F10000

$5,97

Unit Price

E CLIP
E RING

13424-35F10-000 1342435F10000

$4,97

Unit Price

DISCONTINUE
SPRING

13426-40F00-000 1342640F00000

Not available

DISCONTINUE
LEVER SET, LINK

13420-40F20-000 1342040F20000

Not available

DISCONTINUE
SCREW

13602-10F20-000 1360210F20000

Not available

SPRING

13543-24F00-000 1354324F00000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

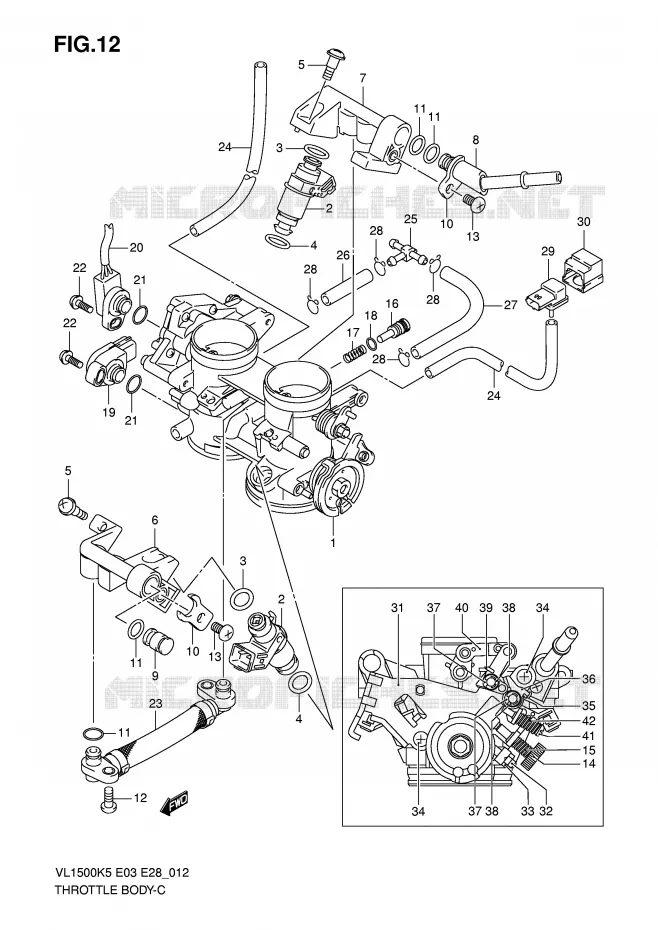

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki of BOULEVARD. Let us know if you have any questions.
