CYLINDER

CRANKCASE FOR SUZUKI BOULEVARD 1500 2007

CRANKCASE COVER

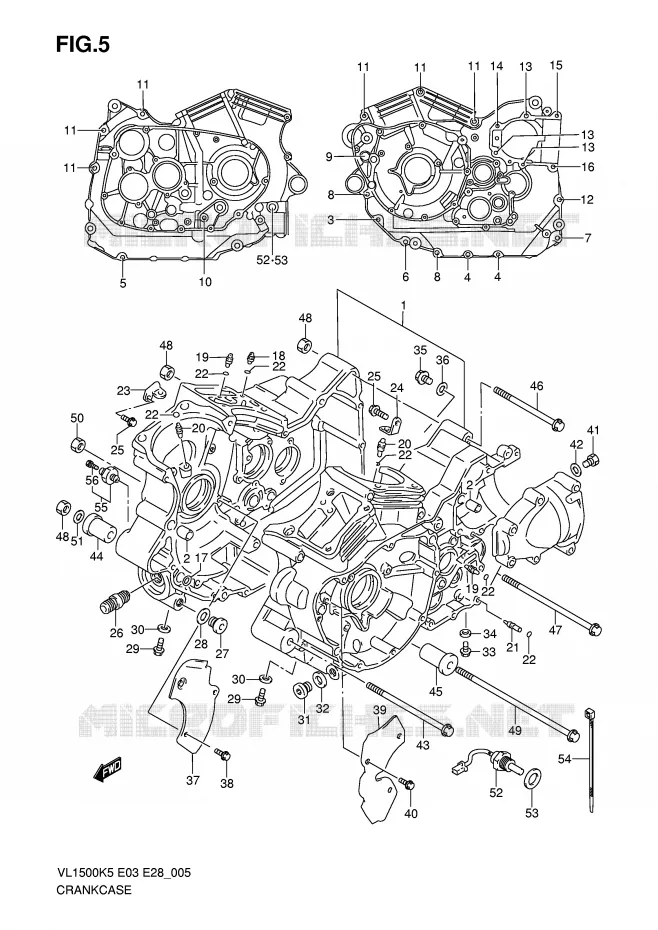

CRANKCASE Suzuki MOTO 1500 BOULEVARD 2007 VL1500TK7(E3/E28)
1
DISCONTINUE
CRANKCASE SET

11300-10872-000   1130010872000

1130010872000
Not available
2
PIN, CRANKCASE
PIN

09206-11007-000   0920611007000

0920611007000

Unit Price

3
BOLT
BOLT

01550-0655B-000   015500655B000

015500655B000

Unit Price

4
BOLT

01550-0665B-000   015500665B000

015500665B000
Not available
5
BOLT

01550-0685B-000   015500685B000

015500685B000
Not available
6
BOLT
BOLT

01550-0855B-000   015500855B000

015500855B000
Not available
7
BOLT
BOLT

01550-0865B-000   015500865B000

015500865B000

Unit Price

8
BOLT (8X70)

01550-0870B-000   015500870B000

015500870B000
Not available
9
BOLT
BOLT

01550-0890B-000   015500890B000

015500890B000

Unit Price

10
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

11
BOLT (8X95)

09103-08164-000   0910308164000

0910308164000

Unit Price

12
BOLT<br />BOLT (8X80)
BOLT
BOLT (8X80)

01550-0880B-000   015500880B000

015500880B000

Unit Price

13
BOLT
BOLT

01550-0840B-000   015500840B000

015500840B000

Unit Price

14
BOLT

01550-0850B-000   015500850B000

015500850B000

Unit Price

15
BOLT
BOLT

01550-0855B-000   015500855B000

015500855B000
Not available
16
BOLT
BOLT

01550-0865B-000   015500865B000

015500865B000

Unit Price

17
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

18
JET(2.2)
JET, HEAD COOLING

09493-44002-000   0949344002000

0949344002000

Unit Price

19
JET,OIL<br />JET, HEAD/SECONDARY
JET, OIL
JET, HEAD/SECONDARY

09493-28010-000   0949328010000

0949328010000

Unit Price

20
JET, PISTON COOLING

09493-80009-000   0949380009000

0949380009000
Not available
21
JET, MISSION

09493-24011-000   0949324011000

0949324011000
Not available
22
O RING<br />O RING, JET (D:1.2,ID:4.0)
O RING
O RING, JET (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

23
DISCONTINUE
PLATE, PISTON JET, FRONT

16438-38B00-000   1643838B00000

1643838B00000
Not available
24
PLATE, PISTON JET RR
PLATE, PISTON JET, REAR

16439-38B00-000   1643938B00000

1643938B00000

Unit Price

25
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

26
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

27
PLUG,OIL<br />PLUG, CONTROL PLUNGER (16X8)
PLUG, OIL
PLUG, CONTROL PLUNGER (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

28
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

29
BOLT<br />PLUG, OIL GALLERY
BOLT
PLUG, OIL GALLERY

01550-0812B-000   015500812B000

015500812B000

Unit Price

30
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

31
09248-14011<br />PLUG, MAIN GALLERY
09248-14011
PLUG, MAIN GALLERY

09248-14005-000  

0924814005000
Not available
32
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

33
BOLT<br />PLUG, MISSION GALLERY
BOLT
PLUG, MISSION GALLERY

01550-0610B-000   015500610B000

015500610B000

Unit Price

34
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
35
PLUG
PLUG, MAIN GALLERY END

09247-12006-000   0924712006000

0924712006000

Unit Price

36
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
37
DISCONTINUE
PLATE, OIL SEPARATOR

11521-38B01-000   1152138B01000

1152138B01000
Not available
38
BOLT, 6X12
BOLT

09125-06110-000   0912506110000

0912506110000

Unit Price

39
DISCONTINUE
PLATE, OIL SEPARATOR FRONT

11522-10F00-000   1152210F00000

1152210F00000
Not available
40
BOLT
BOLT

01547-0612B-000   015470612B000

015470612B000

Unit Price

41
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-12106-000   0924712106000

0924712106000

Unit Price

42
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
43
BOLT,L:205<br />BOLT (10X205)
BOLT, L:205
BOLT (10X205)

09103-10145-000   0910310145000

0910310145000

Unit Price

44
DISCONTINUE
SPACER

11621-10F10-000   1162110F10000

1162110F10000
Not available
45
SPACER,ENGINE MOUNT(L27)<br />SPACER (L:27)
SPACER, ENGINE MOUNT(L27)
SPACER (L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

46
BOLT (10X140)

09103-10119-000   0910310119000

0910310119000

Unit Price

47
BOLT
BOLT (10X160)

09103-10278-000   0910310278000

0910310278000

Unit Price

48
NUT
NUT

08319-3110B-000   083193110B000

083193110B000

Unit Price

49
BOLT(10X265)<br />BOLT (10X260)
BOLT(10X265)
BOLT (10X260)

09103-10226-000   0910310226000

0910310226000

Unit Price

50
NUT

09159-10047-000   0915910047000

0915910047000

Unit Price

51
WASHER(10.5X22X3.2)

09160-10502-000  

09160-10125-000
 0916010502000

Unit Price

52
SENSOR, OIL TEMP

13650-42F10-000   1365042F10000

1365042F10000

Unit Price

53
GASKET(14X20X1.5)
GASKET

09168-14015-000  

0916814015000
Not available
54
CLAMP

09407-10404-000  

09407-14407-000
 0940710404000

Unit Price

55
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

56
BOLT, OIL PRESSURE SWITCH
BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of BOULEVARD. Let us know if you have any questions.
