TRANSMISSION (MODEL K6 / K7 / K8 / K9)

DRIVESHAFT FOR SUZUKI BOULEVARD 1500 2009

GEAR SHIFTING ASSY

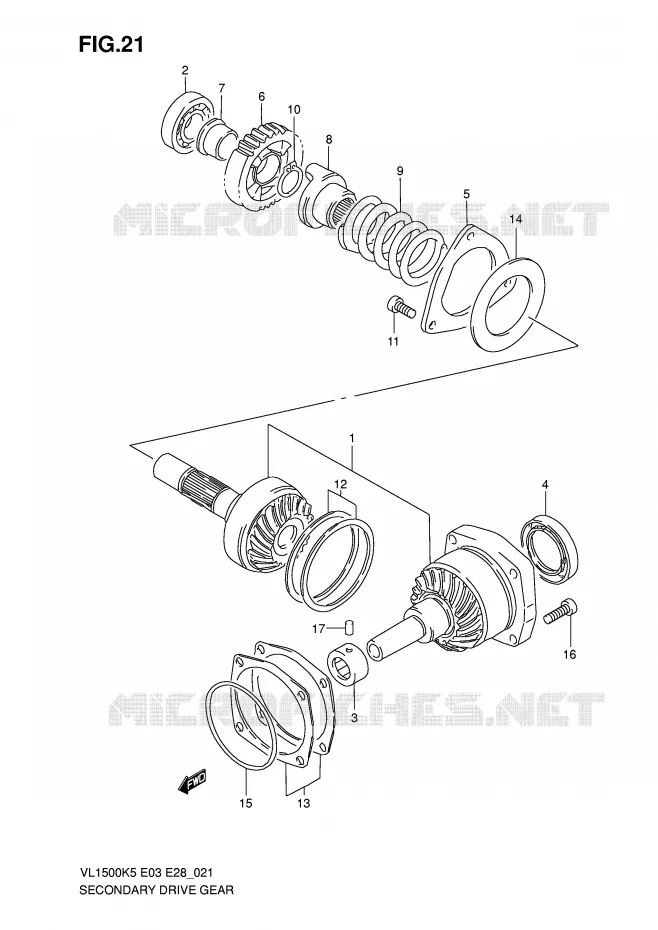

DRIVESHAFT Suzuki MOTO 1500 BOULEVARD 2009 VL1500K9(E3/E28)
1
DISCONTINUE
GEAR & HOUSING SET, SECONDARY

24900-10810-000   2490010810000

2490010810000
Not available
2
BEARING (25X62X17)

09262-25080-000   0926225080000

0926225080000

Unit Price

3
BEARING (20X34X16)

09263-20038-000   0926320038000

0926320038000

Unit Price

4
SEAL, OIL
OIL SEAL (44X68X8)

09283-44010-000   0928344010000

0928344010000

Unit Price

5
DISCONTINUE
STOPPER, BEARING

24931-38B00-000   2493138B00000

2493138B00000
Not available
6
GEAR, OVER DRIVING DRIVEN

24631-38B00-000   2463138B00000

2463138B00000

Unit Price

7
DISCONTINUE
BUSH

24632-38B01-000   2463238B01000

2463238B01000
Not available
8
DISCONTINUE
DOG, OUTPUT CAM

24922-38B01-000   2492238B01000

2492238B01000
Not available
9
DISCONTINUE
SPRING

24924-10F00-000   2492410F00000

2492410F00000
Not available
10
CIRCLIP
CIRCLIP

08331-3126A-000   083313126A000

083313126A000
Not available
11
BOLT
BOLT

07130-0820B-000   071300820B000

071300820B000

Unit Price

12
SHIM SET, SEC DRIVE

24935-38820-000   2493538820000

2493538820000

Unit Price

13
SHIM SET, SEC DRIVEN
SHIM SET, SEC DRIVE

24945-38810-000   2494538810000

2494538810000

Unit Price

14
WASHER (57X90X3)

09160-57001-000   0916057001000

0916057001000
Not available
15
O RING
O RING (D:3.7, ID:76.5)

09280-78003-000   0928078003000

0928078003000

Unit Price

16
BOLT
BOLT

07130-0825B-000   071300825B000

071300825B000

Unit Price

17
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2009
