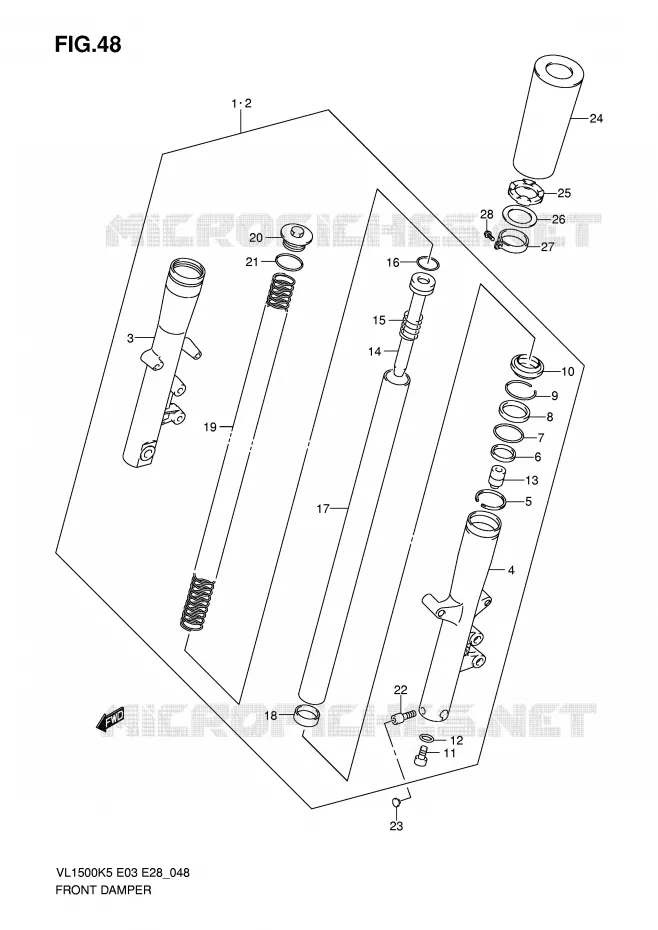

FRONT FORK FOR SUZUKI BOULEVARD 1500 2009

STEERING COLUMN

DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-10F70-000 5110310F70000

$1 492,97

Unit Price

DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-10F70-000 5110410F70000

$1 492,97

Unit Price

TUBE, OUTER, R
TUBE, OUTER RH

51131-10F50-000 5113110F50000

$752,97

Unit Price

TUBE, OUTER, L
TUBE, OUTER LH

51141-10F50-000 5114110F50000

$752,97

Unit Price

GUIDE, CASE

51469-10F00-000 5146910F00000

$19,97

Unit Price

BUSH, GUIDE

51152-11D60-000 5115211D60000

$17,97

Unit Price

SPACER, SEAL

51168-38B00-000 5116838B00000

$8,97

Unit Price

SEAL, OIL

51153-08D00-000 5115308D00000

$20,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING

51556-38B00-000 5155638B00000

$10,97

Unit Price

SEAL, DUST

51571-47D50-000 5157147D50000

$24,97

Unit Price

BOLT

51147-06F10-000 5114706F10000

$7,97

Unit Price

GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

PIECE, OIL LOCK

51195-10F00-000 5119510F00000

$29,97

Unit Price

SEAT, PIPE
PIPE, SEAT

51146-10F00-000 5114610F00000

$34,97

Unit Price

SPRING, REBOUND
SPRING

51177-10F00-000 5117710F00000

$8,97

Unit Price

RING, PISTON
RING

51196-47D00-000 5119647D00000

$11,97

Unit Price

TUBE, INNER

51110-10F70-000 5111010F70000

$610,97

Unit Price

BUSH, SLIDE

51121-42E00-000 5112142E00000

$20,97

Unit Price

DISCONTINUE
SPRING, FRONT

51171-10F70-000 5117110F70000

Not available

BOLT, FORK

51189-38C00-000 5118938C00000

$42,97

Unit Price

O RING

51117-12C00-000 5111712C00000

$6,97

Unit Price

BOLT
BOLT, LH

51166-10F00-000 5116610F00000

$15,97

Unit Price

CAP

09250-06009-000 0925006009000

$5,97

Unit Price

CASE, UNDER

51464-10F70-000 5146410F70000

$231,97

Unit Price

SEAT, RUBBER

51468-10F00-000 5146810F00000

$26,97

Unit Price

WASHER

51467-10F00-000 5146710F00000

$15,97

Unit Price

SPACER

51465-41F20-000 5146541F20000

$39,97

Unit Price

BOLT

51466-10F00-000 5146610F00000

$7,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of BOULEVARD. Let us know if you have any questions.
