TRANSMISSION

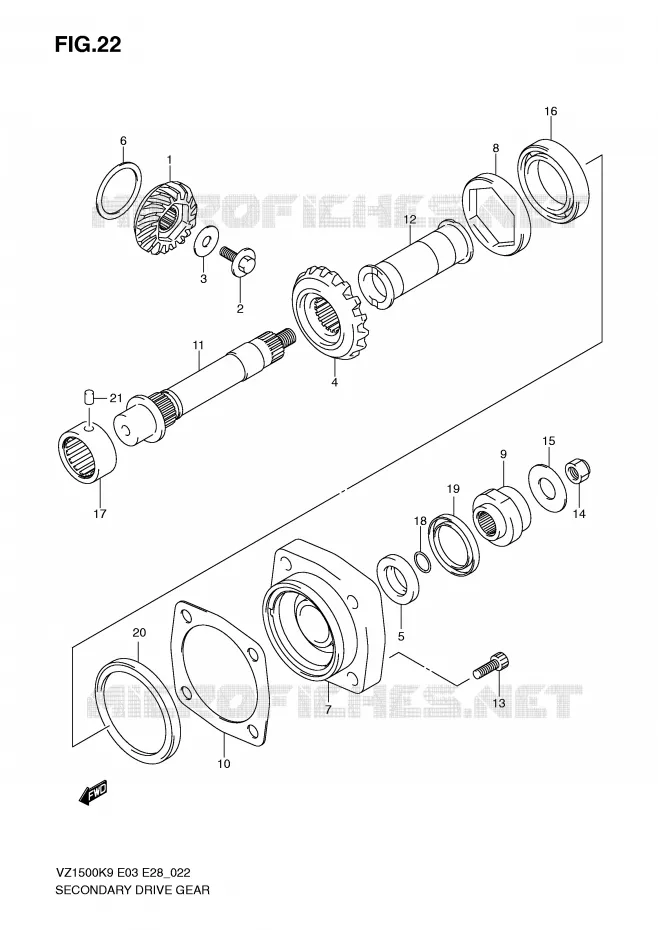

DRIVESHAFT FOR SUZUKI BOULEVARD 1500 2010

GEAR SHIFTING ASSY

Item numbers

GEAR, SECONDARY DRIVE

24911-40H00-000 2491140H00000

$304,97

Unit Price

BOLT, 12X24
BOLT, SECONDARY DRIVE GEAR

09103-12084-000 0910312084000

$12,97

Unit Price

WASHER, THRUST
WASHER, SECONDARY DRIVE

08211-12341-000 0821112341000

$4,97

Unit Price

GEAR, SECONDARY DRIVEN
GEAR, SECONDARY SHAFT

24921-40H00-000 2492140H00000

$335,97

Unit Price

SPACER, PRIMARY SHAFT
SPACER, SECONDARY SHAFT

21102-31G00-000 2110231G00000

$32,97

Unit Price

SHIM SET, SEC DRIVE
SHIM SET, DRIVE

24935-40810-000 2493540810000

$125,97

Unit Price

HOUSING, SEC DRIVEN BEARING
HOUSING, SEC DRIVEN BRG

24941-40H00-000 2494140H00000

$196,97

Unit Price

STOPPER, SEC DRIVEN BEARING
STOPPER, SEC DRIVEN

24942-26D00-000 2494226D00000

$72,97

Unit Price

COUPLING, SEC DRIVEN BEVEL
COUPLING, SEC DRIVEN

24943-40H00-000 2494340H00000

$116,97

Unit Price

SHIM SET, SEC DRIVEN
SHIM SET, SECONDARY DRIVEN

24945-40810-000 2494540810000

$45,97

Unit Price

SHAFT, SECONDARY DRIVEN BEVEL

24961-40H00-000 2496140H00000

$186,97

Unit Price

SPACER, SEC DRIVEN BEVEL
SPACER, SEC DRIVEN

24962-40H00-000 2496240H00000

$128,97

Unit Price

BOLT, 10X30
BOLT, BR HOUSING (10X30)

09106-10087-000 0910610087000

$8,97

Unit Price

NUT
NUT, SEC DRIVEN

09159-16003-000 0915916003000

$5,97

Unit Price

WASHER(16.5X36X4)
WASHER, SEC DRIVEN

09160-16040-000 0916016040000

$15,97

Unit Price

BALL BEARING
BEARING, SEC DRIVEN, R

09262-28014-000 0926228014000

$82,97

Unit Price

BEARING(32X50X22)
BEARING, SEC DRIVEN, F

09263-32021-000 0926332021000

$142,97

Unit Price

O-RING, DRIVESHAFT
O RING (D:2.4, ID:24.7)

09280-25004-000 0928025004000

$3,97

Unit Price

OIL SEAL
OIL SEAL (38X54X6)

09283-38011-000 0928338011000

$25,97

Unit Price

SEAL, OIL, 76X84X7
OIL SEAL SEC DRIVEN

09286-84001-000 0928684001000

$34,97

Unit Price

PIN(7X12)
PIN, SEC DRIVEN

09202-07005-000 0920207005000

$10,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of BOULEVARD. Let us know if you have any questions.
