Parts catalogue

Parts diagram

ELCTRICAL

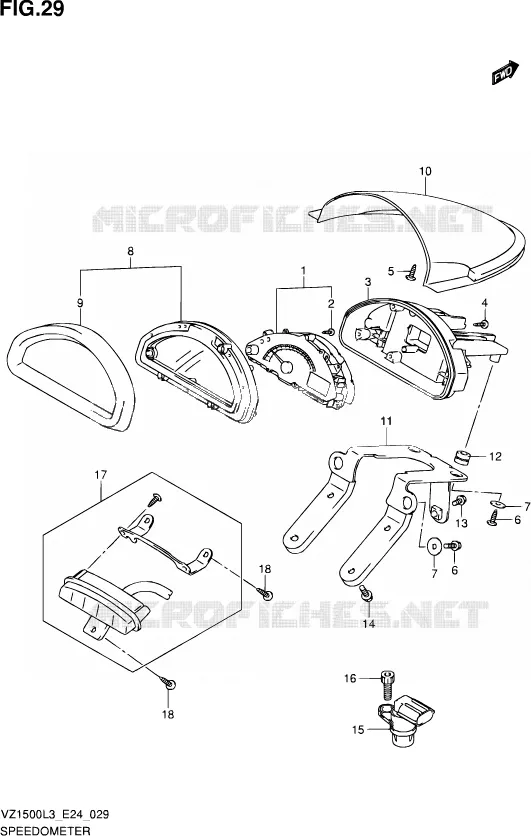

SPEEDOMETER FOR SUZUKI BOULEVARD 1500 2013

HEAD LAMP

SPEEDOMETER Suzuki MOTO 1500 BOULEVARD 2013 VZ1500 L3 (E24)
1
COMBINATION METER

34120-40H00-000   3412040H00000

3412040H00000

Unit Price

2
.SCREW (3X14)

34149-03G00-000   3414903G00000

3414903G00000

Unit Price

3
LWR CASE
COVER, CASE

34111-40H00-000   3411140H00000

3411140H00000

Unit Price

4
SCREW (3X14)

34149-03G00-000   3414903G00000

3414903G00000

Unit Price

5
SCREW (4X14)

34149-17E10-000   3414917E10000

3414917E10000

Unit Price

6
SCREW (5X16)

34149-40H00-000   3414940H00000

3414940H00000

Unit Price

7
WASHER (5.2X20X1.0)

34189-40H00-000   3418940H00000

3418940H00000

Unit Price

8
UPR CASE
UPPER CASE

34150-40H00-000   3415040H00000

3415040H00000

Unit Price

9
UPR COVER
.UPPER COVER

34256-40H00-000   3425640H00000

3425640H00000

Unit Price

10
LWR COVER
LOWER COVER

34257-40H00-000   3425740H00000

3425740H00000

Unit Price

11
BRACKET

34952-40H00-000   3495240H00000

3495240H00000

Unit Price

12
DAMPER

34955-40H00-000   3495540H00000

3495540H00000

Unit Price

13
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

14
BOLT
BOLT

07120-0612B-000   071200612B000

071200612B000

Unit Price

15
SENSOR, SPEED

34990-31G01-000   3499031G01000

3499031G01000

Unit Price

16
BOLT

07130-0616A-000  

07130-0616B-000
 071300616A000

Unit Price

17
36380-40H01
BOX ASSY, PILOT LAMP

36380-40H00-000   3638040H00000

3638040H00000
Not available
18
SCREW

03541-0512A-000   035410512A000

035410512A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2013

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD 2013

Select your Suzuki 2013 model

1500 BOULEVARD 2013 VZ1500 L3 (E24)

Suzuki BOULEVARD

Displacement: 1500 cc
Year: 2013
Model code VZ1500 L3 (E24)
