MUFFLER

OIL PUMP FOR SUZUKI BOULEVARD 1500 2014

FUEL PUMP

Item numbers

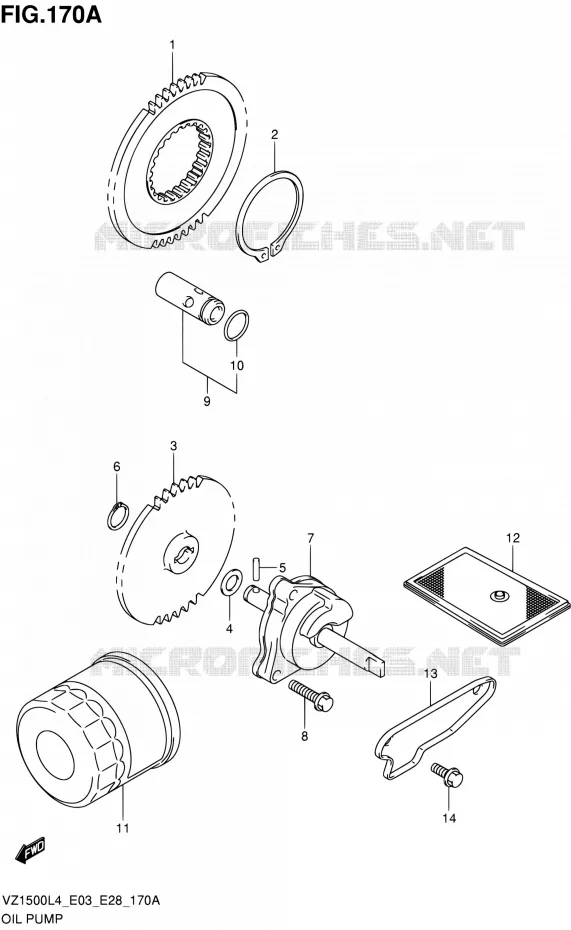

OIL PUMP Suzuki MOTO 1500 BOULEVARD 2014 VZ1500 L4 (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:55)

16321-40H00-000   1632140H00000

1632140H00000

Unit Price

2
CIRCLIP

08331-31529-000  

0833131529000
Not available
3
GEAR, OIL PUMP DRIVEN
GEAR, OIL PUMP DRIVEN (NT:40)

16331-40H00-000   1633140H00000

1633140H00000

Unit Price

4
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

5
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

6
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

7
PUMP ASSY, ENGINE OIL
PUMP ASSY, ENG OIL

16400-40H00-000   1640040H00000

1640040H00000

Unit Price

8
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

9
VALVE ASSY, OIL RELIEF

16440-24F00-000   1644024F00000

1644024F00000

Unit Price

10
ENG OIL PUMP O RING<br />.O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
.O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

11
FILTER ASSY,ENGINE OIL
FILTER ASSY, ENGINE OIL

16510-07J00-000  

16510-07J10-000
 1651007J00000

Unit Price

12
STRAINER COMP,ENG OIL
STRAINER COMP, ENG OIL

16520-32E00-000  

16520-32E01-000
 1652032E00000

Unit Price

13
CAP, OIL STRAINER

16523-17G00-000   1652317G00000

1652317G00000

Unit Price

14
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of BOULEVARD. Let us know if you have any questions.
