Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RADIATOR

RADIATOR HOSE FOR SUZUKI BOULEVARD 1500 2015

ANTI POLLUTION SYSTEM

Item numbers

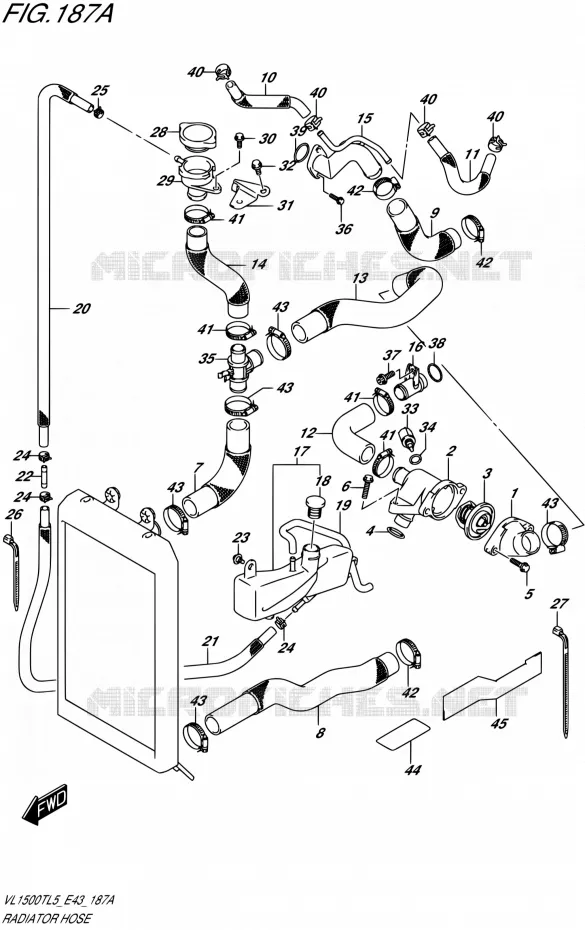

RADIATOR HOSE Suzuki MOTO 1500 BOULEVARD 2015 VL1500T L5 (E43)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
40
40
41
41
41
41
42
42
42
43
43
43
43
43
44
45
1
COVER, THERMOSTAT

17661-48G10-000   1766148G10000

1766148G10000

Unit Price

2
CONNECTOR, THERMOSTAT INLET

17662-40H00-000   1766240H00000

1766240H00000

Unit Price

3
THERMOSTAT COMP, WATER

17670-06G50-000  

17670-06G51-000
 1767006G50000

Unit Price

4
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

5
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

6
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

7
HOSE, RADIATOR INLET

17851-40H10-000   1785140H10000

1785140H10000

Unit Price

8
HOSE, RADIATOR OUTLET

17852-40H10-000   1785240H10000

1785240H10000

Unit Price

9
HOSE, CYLINDER INLET

17853-40H00-000   1785340H00000

1785340H00000

Unit Price

10
HOSE, WATER BYPASS UPR
HOSE, WATER BYPASS UPPER

17854-40H00-000   1785440H00000

1785440H00000

Unit Price

11
HOSE, WATER BYPASS LWR
HOSE, WATER BYPASS LOWER

17855-40H00-000   1785540H00000

1785540H00000

Unit Price

12
HOSE, RR CYLINDER HEAD OUTLET

17856-40H00-000   1785640H00000

1785640H00000

Unit Price

13
HOSE, THERMOSTAT OUTLET

17857-40H10-000   1785740H10000

1785740H10000

Unit Price

14
HOSE, CONDUCTION

17858-40H00-000   1785840H00000

1785840H00000

Unit Price

15
PIPE, CYLINDER WATER INLET

17860-40H00-000   1786040H00000

1786040H00000

Unit Price

16
UNION,CONNECTOR HOSE<br />UNION
UNION, CONNECTOR HOSE
UNION

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

17
TANK ASSY, RESERVOIR

17910-40H00-000   1791040H00000

1791040H00000

Unit Price

18
CAP,RESERVOIR TANK<br />.CAP
CAP, RESERVOIR TANK
.CAP

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

19
HOSE, RESERVOIR TANK OVFL
HOSE, TANK OVERFLOW

17982-40H00-000   1798240H00000

1798240H00000

Unit Price

20
HOSE, RESERVOIR TANK INLET
HOSE, TANK INLET NO.1

17981-40H00-000   1798140H00000

1798140H00000

Unit Price

21
HOSE<br />HOSE (5X9X600)
HOSE
HOSE (5X9X600)

09352-50901-600   0935250901600

0935250901600

Unit Price

22
UNION
UNION

09364-06005-000   0936406005000

0936406005000

Unit Price

23
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

24
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
25
CLIP

09401-10411-000   0940110411000

0940110411000

Unit Price

26
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

27
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

28
CAP, RADIATOR (1.1)

17730-14G00-000   1773014G00000

1773014G00000

Unit Price

29
CONDUCTION, RADIATOR

17791-14G00-000   1779114G00000

1779114G00000

Unit Price

30
BOLT

01547-0512A-000  

01547-0512B-000
 015470512A000

Unit Price

31
BRACKET, CONDUCTION

17792-40H00-000   1779240H00000

1779240H00000

Unit Price

32
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

33
SENSOR, TEMP
SENSOR, WATER TEMP

13650-49X00-000   1365049X00000

1365049X00000

Unit Price

34
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

35
JOINT, 3 WAY

17891-48G00-000   1789148G00000

1789148G00000

Unit Price

36
SCREW, 6X16
BOLT (6X16)

09103-06274-000   0910306274000

0910306274000

Unit Price

37
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

38
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

39
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
40
CLIP<br />CLAMP
CLIP
CLAMP

09401-12414-000   0940112414000

0940112414000

Unit Price

41
CLAMP

09402-32512-000   0940232512000

0940232512000

Unit Price

42
CLAMP

09402-38512-000   0940238512000

0940238512000

Unit Price

43
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

44
TAPE, RR FENDER
TAPE

63131-10F00-000   6313110F00000

6313110F00000

Unit Price

45
CUSHION, RESERVOIR TANK HOSE

17912-06J00-000   1791206J00000

1791206J00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE of your Suzuki of BOULEVARD. Let us know if you have any questions.

Genuine parts for Suzuki 1500 BOULEVARD 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1500 BOULEVARD 2015

Select your Suzuki 2015 model

1500 BOULEVARD 2015 VL1500T L5 (E43)

Suzuki BOULEVARD

Displacement: 1500 cc
Year: 2015
Model code VL1500T L5 (E43)
