SPEEDOMETER (VL1500TL7 E43)

HEADLIGHT FOR SUZUKI BOULEVARD 1500 2017

FRONT INDICATORS (VL1500BTL7 E43)

Item numbers

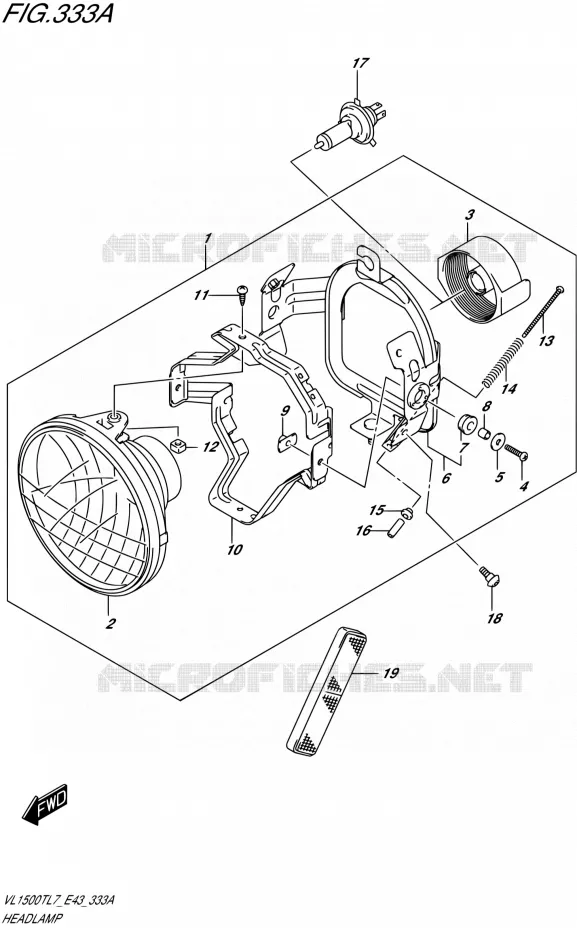

HEADLIGHT Suzuki MOTO 1500 BOULEVARD 2017 VL1500T L7 (E43)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
35100-06J32-999
HEADLAMP ASSY

35100-06J31-999   3510006J31999

3510006J31999
Not available
2
.UNIT

35121-10FB0-000  

3512110FB0000
Not available
3
.COVER, SOCKET
.COVER, SOCKET

35174-19F00-000   3517419F00000

3517419F00000

Unit Price

4
.SCREW

02122-0520A-000   021220520A000

021220520A000

Unit Price

5
.WASHER (5.5X18X1)
.WASHER (5.5X18X1)

09160-05045-000   0916005045000

0916005045000

Unit Price

6
.BRACKET

35140-06J02-000   3514006J02000

3514006J02000

Unit Price

7
..CUSHION

35139-38A60-000   3513938A60000

3513938A60000

Unit Price

8
.SPACER

35133-45230-000   3513345230000

3513345230000

Unit Price

9
.NUT

35155-10FA0-000   3515510FA0000

3515510FA0000

Unit Price

10
.BRACKET

35130-10FA0-000   3513010FA0000

3513010FA0000

Unit Price

11
.SCREW (5X16)
.SCREW (5X16)

35181-19F00-000   3518119F00000

3518119F00000

Unit Price

12
.NUT
.NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

13
.SCREW, ADJUSTER

35151-10FA0-000   3515110FA0000

3515110FA0000
Not available
14
.SPRING, ADJUSTER

35154-10FA0-000   3515410FA0000

3515410FA0000

Unit Price

15
NUT

35152-45600-000  

35135-45600-000
 3515245600000

Unit Price

16
.COVER

35158-10FA0-000   3515810FA0000

3515810FA0000

Unit Price

17
BULB(12V, 5W)
BULB (12V, 60/55W)

09471-12060-000  

0947112060000
Not available
18
BOLT (6X12)
BOLT (6X12)

09111-06107-000   0911106107000

0911106107000

Unit Price

19
REFLEX REFLECTOR ASSY, FR SIDE

35950-22H20-000   3595022H20000

3595022H20000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki BOULEVARD C90T of BOULEVARD. Let us know if you have any questions.
