REAR FAIRING (MODEL W) COLOR : E6M = 33J(BLACK), Y98(GREEN)

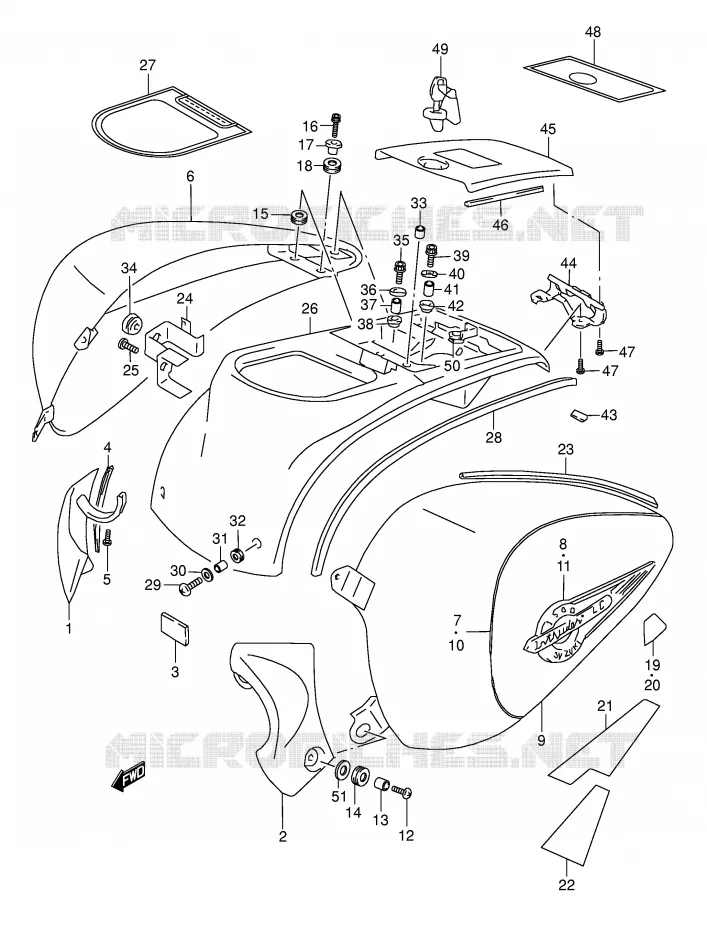

REAR FAIRING (MODEL X) FOR SUZUKI INTRUDER 1500 2000

REAR FAIRING (MODEL Y) COLOR : K7E = 14L(WHITE), Y4L(YELLOW)

Item numbers

COVER, FRAME HEAD, R

47510-10F00-000

47510-10F01-000

$190,97

Unit Price

COVER, FRAME HEAD, L

47520-10F01-000

47520-10F02-000

$265,97

Unit Price

CUSHION(25X35X4)

47829-10F00-000

44612-13600-000

$5,97

Unit Price

MOLDING, FRAME HEAD COVER
MOLDING

47514-10F00-000 4751410F00000

$15,97

Unit Price

SCREW, 6X20
SCREW

09139-06028-000 0913906028000

$5,97

Unit Price

COVER ASSY, SIDE UPPER RH

47800-10F00-E6M 4780010F00E6M

Not available

DISCONTINUE
COVER ASSY, SIDE UPPER RH

47800-10F00-K7E 4780010F00K7E

Not available

DISCONTINUE
COVER ASSY, SIDE UPPER RH

47800-10F00-M4P 4780010F00M4P

Not available

DISCONTINUE
COVER ASSY, SIDE UPPER RH

47800-10F00-M4R 4780010F00M4R

Not available

DISCONTINUE
TAPE, RH

68135-10F00-K7W 6813510F00K7W

Not available

DISCONTINUE
TAPE, RH

68135-10F00-K8A 6813510F00K8A

Not available

TAPE, RH

68135-10F00-M5M 6813510F00M5M

Not available

DISCONTINUE
TAPE, RH

68135-10F00-M5N 6813510F00M5N

Not available

EMBLEM, TANK COVER, R
EMBLEM, RH

68111-10F00-000 6811110F00000

$102,97

Unit Price

DISCONTINUE
COVER ASSY, SIDE UPPER LH

47900-10F00-E6M 4790010F00E6M

Not available

DISCONTINUE
COVER ASSY, SIDE UPPER LH

47900-10F00-K7E 4790010F00K7E

Not available

COVER ASSY, SIDE UPPER LH

47900-10F00-M4P 4790010F00M4P

Not available

DISCONTINUE
COVER ASSY, SIDE UPPER LH

47900-10F00-M4R 4790010F00M4R

Not available

TAPE, LH

68145-10F00-K7W 6814510F00K7W

Not available

DISCONTINUE
TAPE, LH

68145-10F00-K8A 6814510F00K8A

Not available

TAPE, LH

68145-10F00-M5M 6814510F00M5M

Not available

DISCONTINUE
TAPE, LH

68145-10F00-M5N 6814510F00M5N

Not available

EMBLEM, TANK COVER, L
EMBLEM, LH

68121-10F00-000 6812110F00000

$95,97

Unit Price

SCREW

09139-06030-000 0913906030000

$5,97

Unit Price

SPACER, 6.5X9X7.2
SPACER

09180-06260-000 0918006260000

$5,97

Unit Price

CUSHION (8.5X20X8)

09320-08021-000

09320-08510-000

$4,97

Unit Price

CUSHION, SIDE UP METER & FRAME

47822-10F00-000

47822-10F01-000

$16,97

Unit Price

BOLT

07120-06203-000

07120-0620B-000

$5,97

Unit Price

WASHER, SIDE UPR COVER
WASHER

47827-10F00-000 4782710F00000

$12,97

Unit Price

CUSHION, SIDE UPR COVER

47826-10F00-000

47826-10F01-000

$20,97

Unit Price

DISCONTINUE
TAPE, SIDE COVER UPPER RH

47838-10F00-000 4783810F00000

Not available

DISCONTINUE
TAPE, SIDE COVER UPPER LH

47848-10F00-000 4784810F00000

Not available

DISCONTINUE
CUSHION, SIDE UPPER RH NO.1

47835-10F00-000 4783510F00000

Not available

DISCONTINUE
CUSHION, SIDE UPPER RH NO.2

47836-10F00-000 4783610F00000

Not available

MOLDING, SIDE UPR COVER UNDER

47837-10F00-000

47837-10FA0-000

$20,97

Unit Price

BRACKET, SIDE COVER RH

47850-10F00-000 4785010F00000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

DISCONTINUE
COVER, METER

47821-10F00-000 4782110F00000

Not available

DISCONTINUE
TAPE, METER COVER

68897-10F10-000 6889710F10000

Not available

MOLDING, METER COVER
MOLDING

47824-10F00-000 4782410F00000

$18,97

Unit Price

SCREW
SCREW, FRONT

09139-06030-000 0913906030000

$5,97

Unit Price

CLUTCH REL WASHER

09160-06036-000

09160-06019-000

$2,97

Unit Price

SPACER, 6.5X9X5.7
SPACER

09180-06256-000 0918006256000

$3,97

Unit Price

CUSHION, MUF COV

09320-08051-000

09320-08066-000

$14,97

Unit Price

CUSHION, LICENCE PLAT

09321-06013-000

09321-06036-000

$3,97

Unit Price

MUFF STOPPER CUSHION
CUSHION, SIDE

09321-10007-000 0932110007000

$5,97

Unit Price

BOLT

07120-06253-000

07120-0625A-000

$4,97

Unit Price

WASHER(6.5X18X1.6)
WASHER

09160-06084-000 0916006084000

$3,97

Unit Price

SPACER, 6.5X9X11
SPACER

09180-06265-000 0918006265000

$7,97

Unit Price

CUSHION, METER COVER

47825-10F00-000

47825-10F01-000

$20,97

Unit Price

BOLT

07120-06163-000

07120-06167-000

$4,97

Unit Price

WASHER(6.5X18X1.6)
WASHER

09160-06084-000 0916006084000

$3,97

Unit Price

SPACER, 6.5X9X5.7
SPACER

09180-06256-000 0918006256000

$3,97

Unit Price

CUSHION, MUF COV

09320-08051-000

09320-08066-000

$14,97

Unit Price

CUSHION(25X35X4)

47829-10F00-000

44612-13600-000

$5,97

Unit Price

HINGE, FUEL LID

47380-10F00-000 4738010F00000

Not available

DISCONTINUE
LID, FUEL INLET

47811-10F00-000 4781110F00000

Not available

CUSHION, FUEL LID
CUSHION, LID

47812-10F00-000 4781210F00000

$9,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

DISCONTINUE
TAPE, FUEL LID

68898-10F10-000 6889810F10000

Not available

LOCK SET, COVER

95700-07860-000

95700-07861-000

$155,97

Unit Price

47828-10F00

47828-10F00-000

Not available

WASHER

08322-01063-000

08322-0106A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
