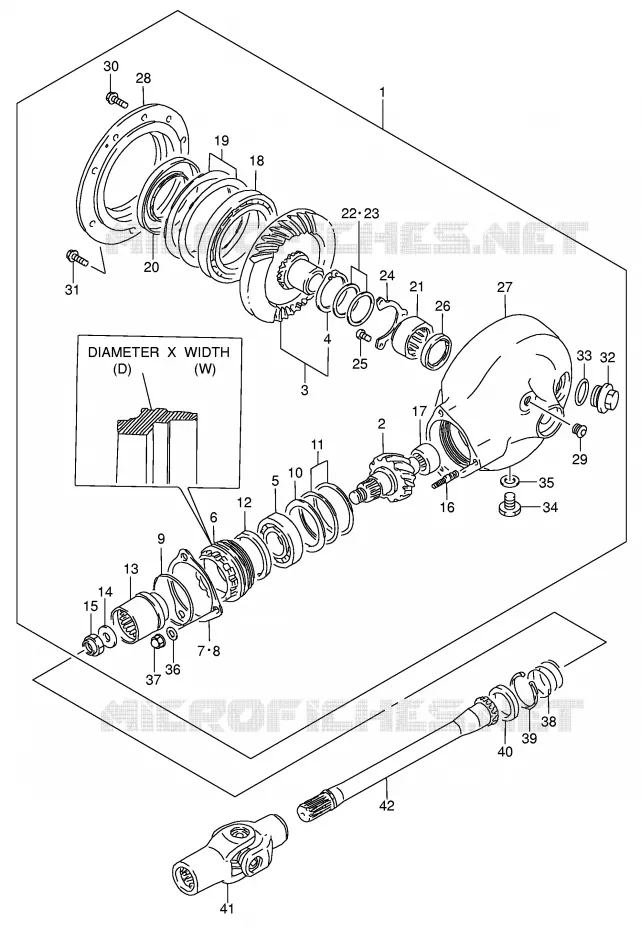

DRIVESHAFT FOR SUZUKI INTRUDER 1500 2005

FUEL TANK FILLER HOSE & CAP

Item numbers

27300-10813
GEAR & CASE SET, FINAL BEVEL

27300-10812-000 2730010812000

Not available

GEAR, FINAL DRIVE BEVEL

27311-24A03-000 2731124A03000

$206,97

Unit Price

DISCONTINUE
GEAR, FINAL DRIVEN BEVEL

27320-38B00-000 2732038B00000

Not available

CIRCLIP

08331-31526-000 0833131526000

Not available

BEARING
BEARING (28X68X18)

09262-28023-000 0926228023000

$150,97

Unit Price

STOPPER, FINAL DRIVE BEARING
STOPPER, BEARING

27312-24A02-000 2731224A02000

$55,97

Unit Price

PLATE, BEARING STOPPER
PLATE, STOPPER

27313-38B00-000 2731338B00000

$8,97

Unit Price

PLATE, BEARING STOPPER
PLATE, STOPPER

27313-38B10-000 2731338B10000

$8,97

Unit Price

O RING
O RING (D:3.1, ID:63.9)

09280-64003-000 0928064003000

$10,97

Unit Price

WASHER (54X68X1.5)

09160-54001-000 0916054001000

$14,97

Unit Price

SHIM SET, FINAL DRIVE GEAR

27445-24810-000 2744524810000

$19,97

Unit Price

OIL SEAL
OIL SEAL (47X58X7)

09283-47002-000 0928347002000

$25,97

Unit Price

COUPLING, FINAL DRIVE GEAR

27172-24A00-000 2717224A00000

$59,97

Unit Price

WASHER
WASHER (16X29X4)

09160-16029-000 0916016029000

$8,97

Unit Price

NUT

09159-16003-000 0915916003000

$6,97

Unit Price

BOLT, STUD
STUD BOLT

09108-10095-000 0910810095000

$6,97

Unit Price

01421-1025B
STUD BOLT

01421-10253-000

Not available

BEARING
BEARING (20X34X18)

09263-20062-000 0926320062000

$54,97

Unit Price

BEARING
BEARING, RH (85X130X14)

09262-85001-000 0926285001000

$211,97

Unit Price

SHIM SET, FINAL DRIVEN GEAR

27327-38810-000 2732738810000

$107,97

Unit Price

SEAL, OIL
OIL SEAL (70X110X14.7)

09289-70002-000 0928970002000

$96,97

Unit Price

DRVN GEAR LH BEA****
BEARING, LH (35X48X23.7)

09263-35004-000 0926335004000

$113,97

Unit Price

WASHER(35X46X0.95)
SHIM (35X46X0.95)

09160-35008-000 0916035008000

$6,97

Unit Price

DISCONTINUE
SHIM SET, FINAL DRIVE GEAR

27326-45811-000 2732645811000

Not available

DISCONTINUE
RETAINER, FINAL BEARING

27329-45100-000 2732945100000

Not available

SCREW

02112-0612B-000 021120612B000

$2,97

Unit Price

SEAL, OIL
OIL SEAL (35X43X5)

09283-35033-000 0928335033000

$23,97

Unit Price

DISCONTINUE
CASE, FINAL GEAR

27450-38B10-000 2745038B10000

Not available

CASE, FINAL GEAR BEARING

27461-38B00-000 2746138B00000

$156,97

Unit Price

PLUG, OIL
PLUG

09248-16012-000 0924816012000

$8,97

Unit Price

BOLT

01550-0825B-000 015500825B000

$4,97

Unit Price

BOLT

01550-1025B-000 015501025B000

$5,97

Unit Price

PLUG
PLUG, OIL FILLER

09259-30007-000 0925930007000

$30,97

Unit Price

O RING
O RING (D:3.1, ID:26.4)

09280-26006-000 0928026006000

$4,97

Unit Price

PLUG
PLUG, OIL DRAIN

09247-14002-000 0924714002000

$8,97

Unit Price

GASKET (13.8X18.8X0.4)

09168-14002-000 0916814002000

$3,97

Unit Price

WASHER

09164-10008-000 0916410008000

$2,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

SPRING

09440-30008-000 0944030008000

$4,97

Unit Price

DR CUP RING CIRCLIP
CIRCLIP

09381-40003-000 0938140003000

$7,97

Unit Price

PR CUP RING OIL SEAL
OIL SEAL (30X40.5X5.5)

09283-30026-000 0928330026000

$17,97

Unit Price

YOKE, UNIVERSAL JOINT

27100-38B00-000

27100-38B01-000

$477,97

Unit Price

SHAFT, PROPELLER

27151-10F00-000 2715110F00000

$273,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
