WIRING HARNESS (MODEL Y / K1 / K2) REFER TO FIG.32B(G- 9) FOR MODEL K3

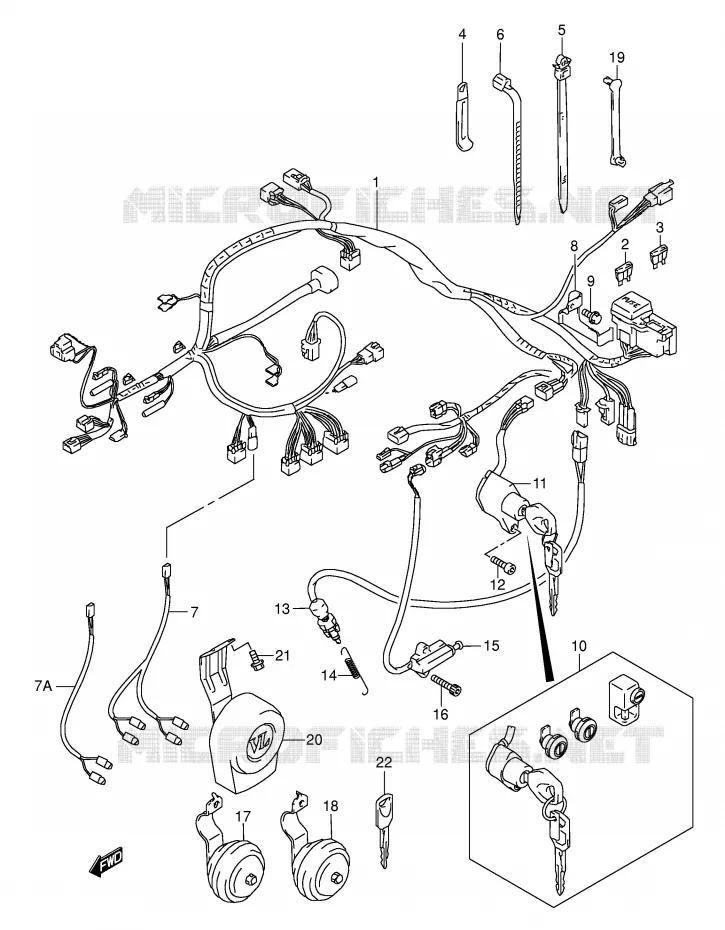

WIRING HARNESS (MODEL K3) FOR SUZUKI INTRUDER 1500 2014

WIRING HARNESS (MODEL K4)

Item numbers

DISCONTINUE
HARNESS, WIRING

36610-10F90-000 3661010F90000

Not available

HARNESS, WIRING

36610-10FA0-000 3661010FA0000

Not available

FUSE (10A)

09481-10501-000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

CLAMP(L:80)

09404-06433-000

09404-06036-000

$3,97

Unit Price

CLAMP
CLAMP (L:90)

09407-11402-000 0940711402000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

WIRE, HORN LEAD

36854-10F00-000 3685410F00000

Not available

DISCONTINUE
WIRE, HORN LEAD

36852-21E10-000 3685221E10000

Not available

DISCONTINUE
BRACKET, FUSE

36744-10F00-000 3674410F00000

Not available

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

LOCK SET

37000-26841-000 3700026841000

Not available

DISCONTINUE

37100-26880-000

Not available

SWITCH ASSY, IGNITION

37110-26F11-000 3711026F11000

Not available

37110-26F03

37110-26F20-000

Not available

BOLT

07130-06163-000

07130-0616B-000

$6,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-10F00-000 3774010F00000

$52,97

Unit Price

SPRING, STOP LAMP SWITCH
SPRING, STOP LAMP

43139-10F00-000 4313910F00000

$10,97

Unit Price

SWITCH ASSY, SIDE STAND

37840-10F00-000

37840-10F01-000

$164,97

Unit Price

SCREW

02142-06203-000

02142-0620B-000

$2,97

Unit Price

HORN ASSY, RH

38501-10F00-000 3850110F00000

Not available

HORN ASSY, LH

38502-10F00-000 3850210F00000

Not available

CLAMP
CLAMP (L:33)

09407-03401-000 0940703401000

$5,97

Unit Price

DISCONTINUE
HORN ASSY

38500-10F00-000 3850010F00000

Not available

01550-0616A
BOLT, HORN

01550-06163-000

Not available

KEY, BLANK

37146-48E00-000

37146-48E10-000

$45,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
