CRANKCASE FOR SUZUKI BOULEVARD 1800 2008

CRANKCASE COVER

Item numbers

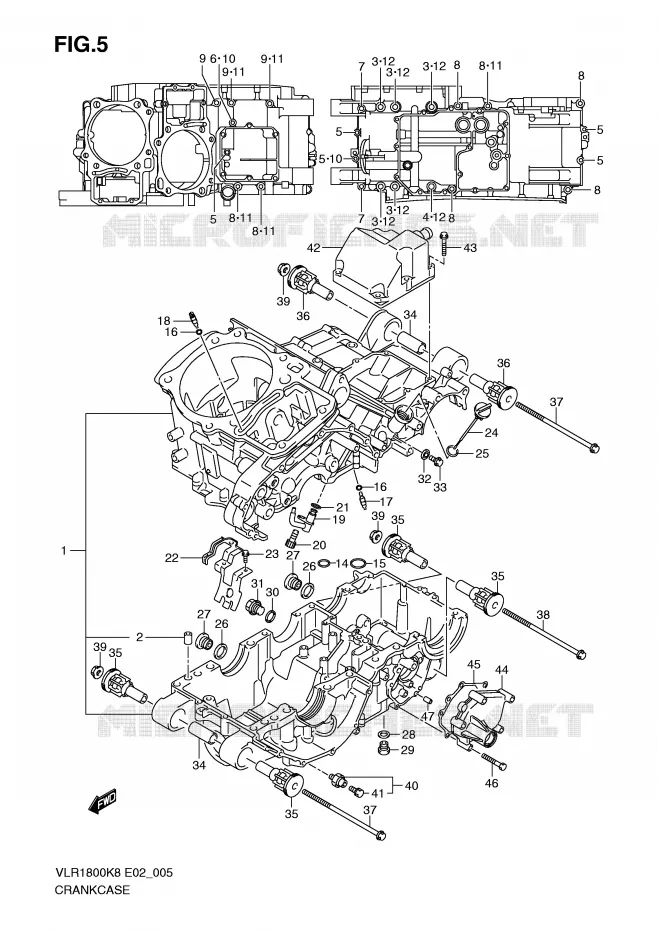

CRANKCASE Suzuki MOTO 1800 BOULEVARD 2008 VLR1800U2K8(E2)
1
1
2
3
3
3
3
3
4
5
5
5
5
5
6
7
7
8
8
8
8
8
8
8
9
9
9
10
10
11
11
11
11
11
12
12
12
12
12
12
14
15
16
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
34
34
35
35
35
35
36
36
37
37
38
39
39
39
40
41
42
43
44
45
46
47
1
CRANKCASE SET

11300-48862-000  

11300-48881-000
 1130048862000

Unit Price

1
CRANKCASE SET

11300-48863-000   1130048863000

1130048863000
Not available
2
PIN, CRANKCASE
PIN, CRANKCASE

11319-33E50-000   1131933E50000

1131933E50000

Unit Price

3
BOLT (10X100)

09103-10408-000   0910310408000

0910310408000

Unit Price

4
BOLT (10X115)

09103-10406-000   0910310406000

0910310406000

Unit Price

5
BOLT
BOLT

01547-0645B-000   015470645B000

015470645B000

Unit Price

6
BOLT
BOLT

01547-0670B-000   015470670B000

015470670B000

Unit Price

7
BOLT
BOLT

07130-0850B-000   071300850B000

071300850B000
Not available
8
BOLT
BOLT

07130-0865B-000   071300865B000

071300865B000

Unit Price

9
BOLT

07130-0885B-000   071300885B000

071300885B000

Unit Price

10
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
11
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

12
GASKET 10.2X20X2.3<br />GASKET
GASKET 10.2X20X2.3
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price

13
WASHER, CRANK THRUST
WASHER, CRANK THRUST (RED)

12228-48G00-0A0   1222848G000A0

1222848G000A0

Unit Price

13
WASHER, CRANK THRUST
WASHER, CRANK THRUST (BLACK)

12228-48G00-0B0   1222848G000B0

1222848G000B0

Unit Price

13
WASHER, CRANK THRUST
WASHER, CRANK THRUST (BLUE)

12228-48G00-0C0   1222848G000C0

1222848G000C0

Unit Price

13
WASHER, CRANK THRUST
WASHER, CRANK THRUST (GREEN)

12228-48G00-0D0   1222848G000D0

1222848G000D0

Unit Price

13
WASHER, CRANK THRUST
WASHER, CRANK THRUST (YELLOW)

12228-48G00-0E0   1222848G000E0

1222848G000E0

Unit Price

13
WASHER, CRANK THRUST
WASHER, CRANK THRUST (WHITE)

12228-48G00-0F0   1222848G000F0

1222848G000F0

Unit Price

14
O RING D:1.9 ID:7.8<br />O RING, CRANKCASE (ID:7.8)
O RING D:1.9 ID:7.8
O RING, CRANKCASE (ID:7.8)

09280-08012-000   0928008012000

0928008012000

Unit Price

15
O RING(D:1.9,ID:12.6)<br />O RING, CRANKCASE (ID:12.6)
O RING(D:1.9, ID:12.6)
O RING, CRANKCASE (ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

16
O RING<br />O RING, OIL GALLERY JET
O RING
O RING, OIL GALLERY JET

09280-04004-000   0928004004000

0928004004000

Unit Price

17
JET, OIL GALLERY
JET, OIL GALLERY MISSION

09493-80005-000   0949380005000

0949380005000

Unit Price

18
JET, OIL GALLERY
JET, OIL GALLERY CYLINDER

09493-80005-000   0949380005000

0949380005000

Unit Price

19
JET, PISTON COOLING

11390-48G00-000   1139048G00000

1139048G00000

Unit Price

20
BOLT (6X12)
BOLT (6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

21
O-RING D:1.2 ID:4.7<br />O RING
O-RING D:1.2 ID:4.7
O RING

09280-05007-000   0928005007000

0928005007000

Unit Price

22
PLATE, OIL SEPARATOR

11521-48G00-000   1152148G00000

1152148G00000

Unit Price

23
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

24
GAUGE, OIL LEVEL

11971-48G01-000   1197148G01000

1197148G01000

Unit Price

25
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

26
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

27
PLUG,OIL<br />PLUG, OIL GALLERY
PLUG, OIL
PLUG, OIL GALLERY

09248-16012-000   0924816012000

0924816012000

Unit Price

28
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

29
09248-14011
PLUG, OIL GALLERY

09248-14012-000  

0924814012000
Not available
30
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
31
PLUG
PLUG, OIL GALLERY

09247-12006-000   0924712006000

0924712006000

Unit Price

32
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
33
BOLT
PLUG, OIL GALLERY

01547-0612A-000   015470612A000

015470612A000

Unit Price

34
SPACER, ENG MTG
SPACER

11611-48G00-000   1161148G00000

1161148G00000

Unit Price

35
BUSH, ENGINE MOUNTING
BUSH

11652-10G50-000   1165210G50000

1165210G50000

Unit Price

36
BUSH, ENGINE MOUNTING
BUSH

11652-10G40-000   1165210G40000

1165210G40000

Unit Price

37
BOLT

09103-10041-000  

09103-10041-A05
 0910310041000

Unit Price

38
BOLT, ENG MTG, L195
BOLT (10X195)

09103-10118-000   0910310118000

0910310118000

Unit Price

39
NUT
NUT

08319-3110A-000   083193110A000

083193110A000

Unit Price

40
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

41
BOLT, OIL PRESSURE SWITCH
BOLT

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

42
COVER, BREATHER

11330-48G00-000   1133048G00000

1133048G00000

Unit Price

43
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

44
COVER, GEAR SHIFT

11371-48G00-000   1137148G00000

1137148G00000

Unit Price

45
GASKET, GEAR SHIFT COVER(NA)
GASKET

11485-48G00-000   1148548G00000

1148548G00000

Unit Price

46
BOLT

01547-0645A-000   015470645A000

015470645A000

Unit Price

47
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
