Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

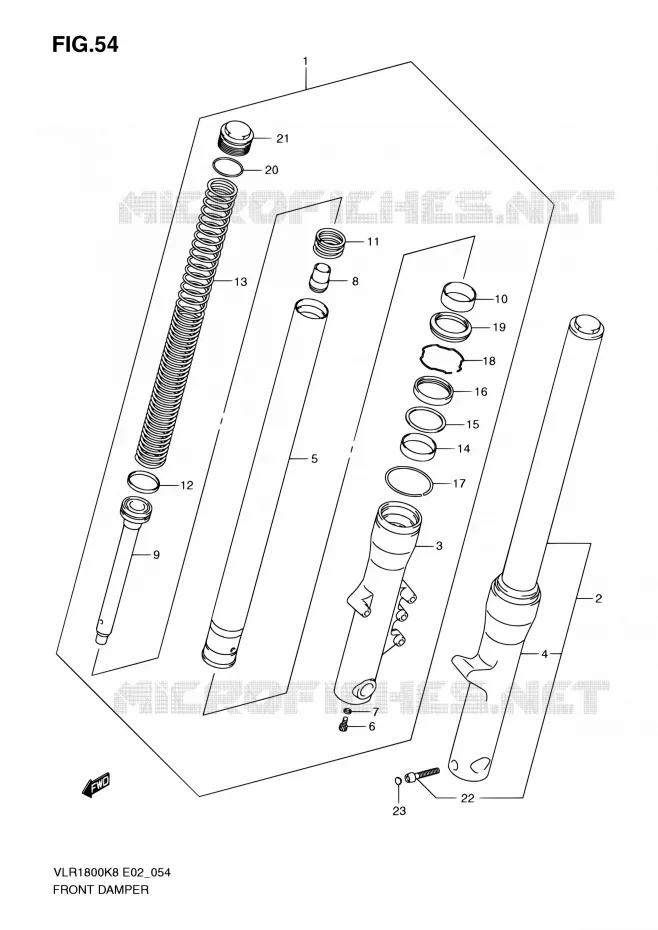

FRONT FORK FOR SUZUKI BOULEVARD 1800 2008

STEERING COLUMN

Item numbers

DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-22H00-000 5110322H00000

$1 170,97

Unit Price

DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-22H00-000 5110422H00000

$1 704,97

Unit Price

TUBE, OUTER, R
.TUBE, OUTER RH

51131-22H00-000 5113122H00000

$849,97

Unit Price

TUBE, OUTER, L
.TUBE, OUTER LH

51141-22H00-000 5114122H00000

$849,97

Unit Price

.TUBE, INNER

51110-22H00-000 5111022H00000

$549,97

Unit Price

.BOLT

51147-06F10-000 5114706F10000

$7,97

Unit Price

.GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

.PIECE, OIL LOCK

51195-22H00-000 5119522H00000

$16,97

Unit Price

.CYLINDER

51146-22H00-000 5114622H00000

$70,97

Unit Price

.BUSH, SLIDE

51121-36E80-000 5112136E80000

$44,97

Unit Price

.SPRING, REBOUND

51177-22H00-000 5117722H00000

$11,97

Unit Price

.RING, PISTON

51196-29F20-000 5119629F20000

$21,97

Unit Price

.SPRING

51171-22H00-000 5117122H00000

$183,97

Unit Price

.BUSH, GUIDE

51167-36E80-000 5116736E80000

$27,97

Unit Price

.SPACER, SEAL

51158-36E00-000 5115836E00000

$11,97

Unit Price

.SEAL, OIL

51153-36E60-000 5115336E60000

$44,97

Unit Price

.GUIDE, CASE

51469-22H00-000 5146922H00000

$19,97

Unit Price

.RING, STOPPER

51165-36E00-000 5116536E00000

$13,97

Unit Price

.DUST SEAL

51571-22H00-000 5157122H00000

$49,97

Unit Price

.O RING

51117-36E00-000 5111736E00000

$8,97

Unit Price

.CAP

51121-22H00-000 5112122H00000

$110,97

Unit Price

BOLT
.BOLT, L

07130-1040B-000 071301040B000

$6,97

Unit Price

CAP
CAP, OUTER TUBE, L

09250-08014-000 0925008014000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
