Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FENDER (VLR1800TL1 E33)

REAR FEDNER (VLR1800L1 E03) FOR SUZUKI BOULEVARD 1800 2011

REAR FEDNER (VLR1800L1 E28)

Item numbers

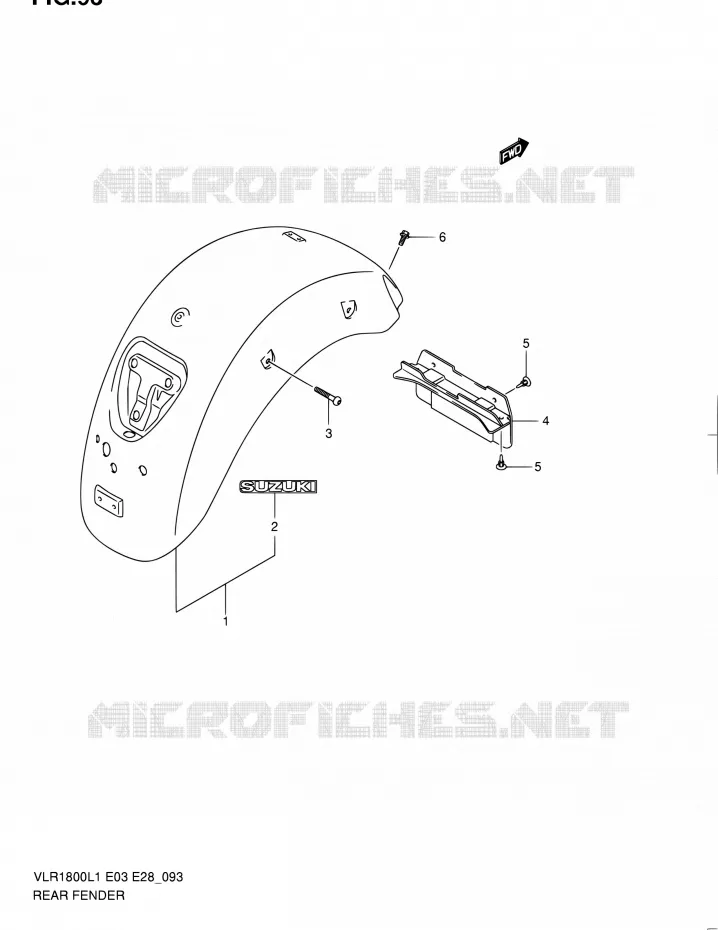

REAR FEDNER (VLR1800L1 E03) Suzuki MOTO 1800 BOULEVARD 2011 VLR1800 L1/VLR1800T L1 (E03,E28,E33)
1
1
2
2
3
4
5
5
6
1
DISCONTINUE
FENDER ASSY, REAR (BLACK)

63100-22H31-YAY   6310022H31YAY

6310022H31YAY
Not available
1
FENDER ASSY, REAR (GRAY)

63100-22H31-YHG   6310022H31YHG

6310022H31YHG
Not available
2
DISCONTINUE
.EMBLEM

68171-22H00-FFP   6817122H00FFP

6817122H00FFP
Not available
2
.EMBLEM

68171-22H00-GMJ   6817122H00GMJ

6817122H00GMJ
Not available
3
BOLT (10X50)

09106-10085-000   0910610085000

0910610085000

Unit Price

4
MUDGUARD, RR FENDER FR
MUDGUARD, FRONT

63411-22H00-000   6341122H00000

6341122H00000

Unit Price

5
CLIP (BLACK)

09409-08308-5ES   09409083085ES

09409083085ES

Unit Price

6
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FEDNER (VLR1800L1 E03) of your Suzuki BOULEVARD M109R of BOULEVARD. Let us know if you have any questions.
