FUEL EVAP SYSTEM

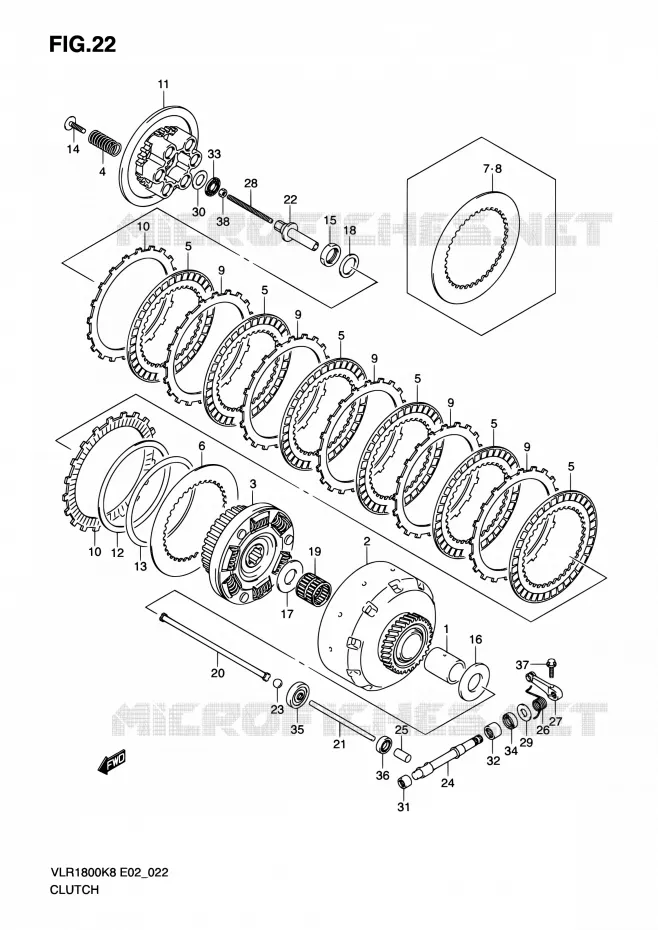

CLUTCH FOR SUZUKI INTRUDER 1800 2009

TRANSMISSION

Item numbers

SPACER, PRIMARY DRIVE GEAR

21151-48G00-000 2115148G00000

$42,97

Unit Price

GEAR ASSY, PRIMARY DRIVE

21100-48G10-000 2110048G10000

HUB, CLUTCH SLEEVE
HUB, CLUTCH

21410-48G00-000 2141048G00000

$538,97

Unit Price

SPRING, CLUTCH

21413-35F10-000 2141335F10000

$10,97

Unit Price

PLATE, CLUTCH DRIVE NO.1

21441-22H00-000 2144122H00000

$45,97

Unit Price

PLATE, CLUTCH DRIVE NO.2

21441-48G10-000

21441-48G40-000

$19,97

Unit Price

PLATE, CLUTCH DRIVE NO.3

21441-48G20-000

21441-48G50-000

$23,97

Unit Price

PLATE, CLUTCH DRIVE NO.4

21441-48G30-000

21441-48G60-000

$24,97

Unit Price

PLATE, CLUTCH DRIVEN NO.1

21451-22H00-000 2145122H00000

$18,97

Unit Price

PLATE, CLUTCH DRIVEN NO.2

21451-48G10-000 2145148G10000

$33,97

Unit Price

DISC, CLUTCH PRESSURE

21462-48G00-000 2146248G00000

$67,97

Unit Price

SEAT, WAVE WASHER

21471-48G00-000 2147148G00000

$17,97

Unit Price

WASHER, CLUTCH PLATE WAVE

21472-48G00-000

21472-48G10-000

$29,97

Unit Price

BOLT, CLUTCH SPRING

21482-41G00-000 2148241G00000

$4,97

Unit Price

NUT
NUT, CLUTCH SLEEVE HUB

09159-24010-000 0915924010000

$22,97

Unit Price

WASHER SLEEVE HUB
WASHER, CLUTCH SLEEVE HUB THR

09160-25056-000 0916025056000

$20,97

Unit Price

WASHER SLEEVE HUB
WASHER, PRIMARY DRIVE

09160-25056-000 0916025056000

$20,97

Unit Price

WASHER
WASHER, CLUTCH SLEEVE HUB WAVE

09164-24008-000 0916424008000

$6,97

Unit Price

BEARING
BEARING, PRIMARY DRIVE

09263-32020-000 0926332020000

$45,97

Unit Price

ROD, CLUTCH

23110-24F00-000 2311024F00000

$24,97

Unit Price

ROD, CLUTCH PUSH, L

23111-48G00-000 2311148G00000

$19,97

Unit Price

PIECE, CLUTCH PUSH

23121-41G00-000 2312141G00000

$46,97

Unit Price

BALL, CLUTCH PUSH PIECE
BALL, CLUTCH PUSH

23122-02FR0-000 2312202FR0000

$88,97

Unit Price

CAMSHAFT, CLUTCH RELEASE

23122-48G00-000 2312248G00000

$52,97

Unit Price

CAP, CLUTCH PUSH ROD

23123-41G00-000 2312341G00000

$16,97

Unit Price

SPRING, CLUTCH RELEASE RETURN

23125-48G00-000 2312548G00000

$4,97

Unit Price

ARM, CLUTCH RELEASE

23271-48G00-000 2327148G00000

$74,97

Unit Price

SCREW, CLUTCH PUSH RO
SCREW, CLUTCH PUSH ROD

09134-06015-000 0913406015000

$11,97

Unit Price

WASHER(10.5X24X1)
WASHER, CLUTCH RELEASE

09160-10020-000 0916010020000

$3,97

Unit Price

WASHER
WASHER, CLUTCH PUSH PIECE

09160-15045-000 0916015045000

$6,97

Unit Price

BEARING 10 X 14 X 10
BEARING, CL RLSE CAM LOWER

09263-10014-000 0926310014000

$20,97

Unit Price

BEARING, CL RLSE
BEARING, CL RLSE CAM UPPER

09263-12027-000 0926312027000

$10,97

Unit Price

BEARING(15X28X2)
BEARING, CLUTCH PUSH PIECE

09263-15003-000 0926315003000

$12,97

Unit Price

OIL SEAL 10X20X6
SEAL, CL RLSE CAMSHAFT OIL

09282-10012-000 0928210012000

$12,97

Unit Price

SEAL, OIL
SEAL, CLUTCH PUSH ROD OIL

09283-06010-000 0928306010000

$26,97

Unit Price

OIL SEAL
SEAL, CLUTCH PUSH ROD CAP

09285-10004-000 0928510004000

$5,97

Unit Price

BOLT
BOLT, CL RELEASE ARM

01550-0620A-000 015500620A000

$3,97

Unit Price

NUT
NUT, CLUTCH RELEASE ADJ

08310-0006A-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
