Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT

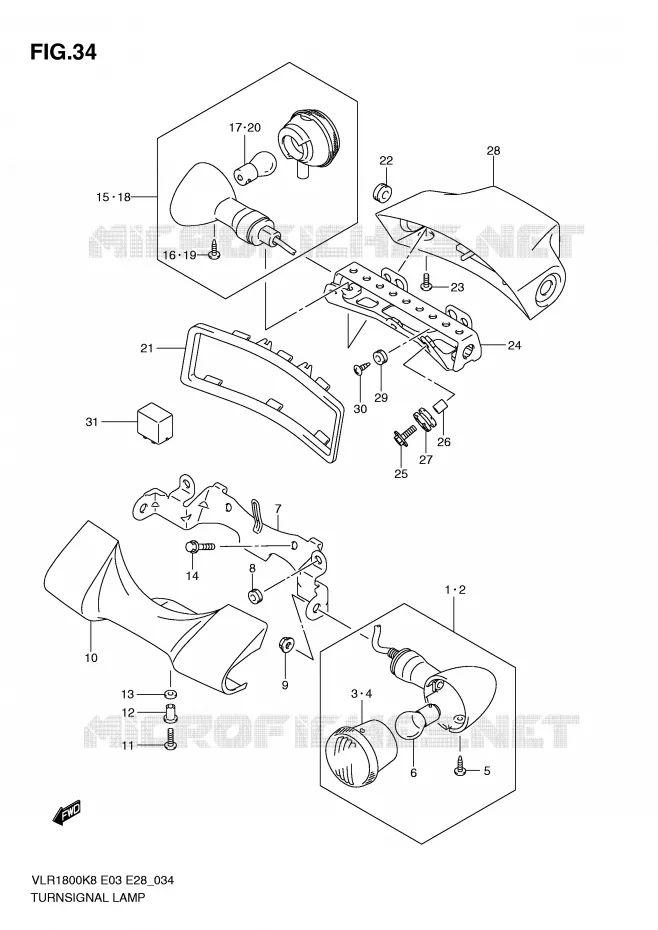

INDICATORS FOR SUZUKI INTRUDER 1800 2010

TAIL LIGHT

Item numbers

LAMP ASSY, FR TURN SIGNAL, R
LAMP ASSY, FR TURNSIGNAL, RH

35601-41FC0-000 3560141FC0000

$133,97

Unit Price

LAMP ASSY, FR TURN SIGNAL, L
LAMP ASSY, FR TURNSIGNAL, LH

35602-41FC0-000 3560241FC0000

$149,97

Unit Price

LENS
LENS, R

35610-38AA0-000 3561038AA0000

$39,97

Unit Price

LENS
LENS, L

35630-38AA0-000 3563038AA0000

$35,97

Unit Price

SCREW(4X10)
SCREW (4X40)

35623-38AA0-000 3562338AA0000

$7,97

Unit Price

BULB(12V1.4W G30)
BULB (12V21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

BRACKET, FR
BRACKET, FRONT

35616-41FD0-000

Not available

CUSHION(6.5X14X6)

09320-06016-000

09320-06027-000

$4,97

Unit Price

NUT

08310-0010B-000 083100010B000

$3,97

Unit Price

COVER, FR TURNSIGNAL
COVER, FR

35641-41F02-000 3564141F02000

$90,97

Unit Price

SCREW, 5 X 16
SCREW, FR (5X16)

09139-05042-000 0913905042000

$4,97

Unit Price

NUT, WINDSCREEN

09159-05019-000

94618-48H10-000

$7,97

Unit Price

WASHER, 5.5X14X1.20
WASHER, FR (5.5X14X1.2)

09160-05048-000 0916005048000

$2,97

Unit Price

BOLT
BOLT, FR TURN

01550-0816B-000 015500816B000

$4,97

Unit Price

LAMP ASSY, TURNSIGNAL RH

35603-38AB3-000

35603-38AB4-000

$166,97

Unit Price

SCREW(4X10)
SCREW

35623-38AA0-000 3562338AA0000

$7,97

Unit Price

BULB(12V60/55W, H4)
BULB (12V21W)

09471-12045-000 0947112045000

$5,97

Unit Price

LAMP ASSY, TURNSIGNAL LH

35604-38AB3-000

35604-38AB4-000

$161,97

Unit Price

SCREW(4X10)
SCREW

35623-38AA0-000 3562338AA0000

$7,97

Unit Price

BULB(12V60/55W, H4)
BULB (12V21W)

09471-12045-000 0947112045000

$5,97

Unit Price

GASKET, RR TURNSIGNAL COVER
GASKET, RR TURNSIGNAL

35657-22H00-000 3565722H00000

$38,97

Unit Price

GROMMET
GROMMET, RR LEAD

09308-10005-000 0930810005000

$3,97

Unit Price

BOLT(6X14)
BOLT, RR TURNSIGNAL (6X14)

09103-06507-000 0910306507000

$5,97

Unit Price

BRACKET, RR TURNSIGNAL

35620-22H00-000 3562022H00000

$64,97

Unit Price

BOLT (6X25)

09116-06131-000 0911606131000

$3,97

Unit Price

SPACER (6.5X10X12)

09180-06290-000 0918006290000

$3,97

Unit Price

CUSHION, RADIATOR UPP
CUSHION

09320-10051-000 0932010051000

$5,97

Unit Price

COVER, RR TURNSIGNAL

35621-22H00-000 3562122H00000

$188,97

Unit Price

CUSHION(6.5X14X6)

09320-06016-000

09320-06027-000

$4,97

Unit Price

SCREW
SCREW, RR COVER

03541-0510A-000 035410510A000

$2,97

Unit Price

RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000

38610-03F01-000

$105,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
