DRIVESHAFT FOR SUZUKI INTRUDER 1800 2013

STAND

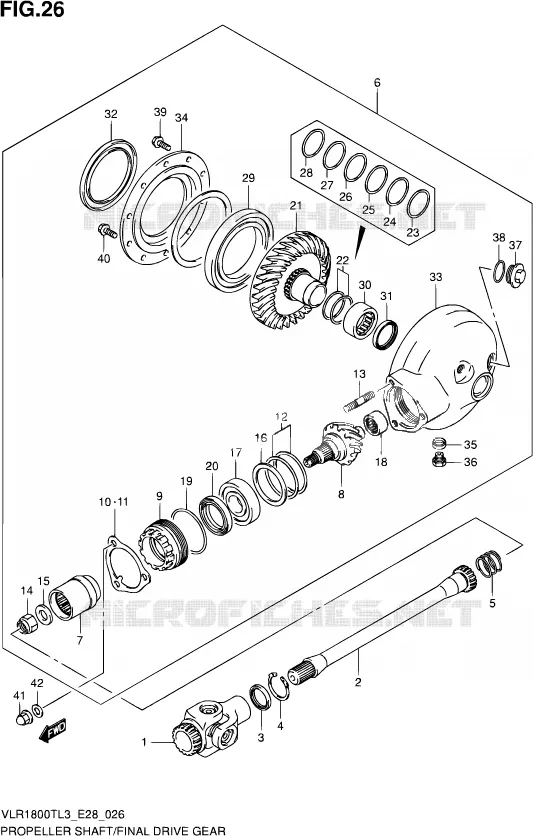

DRIVESHAFT Suzuki MOTO 1800 INTRUDER 2013 VLR1800T L3 (E28)
1
YOKE, UNIVERSAL JOINT

27100-48G20-000   2710048G20000

2710048G20000

Unit Price

2
SHAFT, PROPELLER
SHAFT, PROPELLER (L:416.5)

27151-22H00-000   2715122H00000

2715122H00000

Unit Price

3
PR CUP RING OIL SEAL
SEAL, COUPLING OIL

09283-30026-000   0928330026000

0928330026000

Unit Price

4
DR CUP RING CIRCLIP
CIRCLIP, COUPLING

09381-40003-000   0938140003000

0938140003000

Unit Price

5
SPRING
SPRING, PROPELLER SHAFT

09440-30008-000   0944030008000

0944030008000

Unit Price

6
DISCONTINUE
GEAR & CASE SET, FINAL BEVEL (SILVER)

27300-48850-13L  

273004885013L
Not available
7
.COUPLING, FINAL DRIVE GEAR

27172-24A00-000   2717224A00000

2717224A00000

Unit Price

8
.GEAR, FINAL DRIVE BEVEL

27311-24A03-000   2731124A03000

2731124A03000

Unit Price

9
STOPPER, FINAL DRIVE BEARING
.STOPPER, FINAL DRIVE BE

27312-24A02-000   2731224A02000

2731224A02000

Unit Price

10
.PLATE, BEARING STOPPER

27313-38B00-000   2731338B00000

2731338B00000

Unit Price

11
.PLATE, BEARING STOPPER

27313-38B10-000   2731338B10000

2731338B10000

Unit Price

12
.SHIM SET, FINAL DRIVE GEAR

27445-24810-000   2744524810000

2744524810000

Unit Price

13
BOLT, STUD
.STUD BOLT

09108-10106-000  

0910810106000
Not available
14
.NUT

09159-16003-000   0915916003000

0915916003000

Unit Price

15
WASHER
.WASHER (16X29X4)

09160-16029-000   0916016029000

0916016029000

Unit Price

16
.WASHER (54X68X1.5)

09160-54001-000   0916054001000

0916054001000

Unit Price

17
BEARING
.BEARING (28X68X18)

09262-28023-000   0926228023000

0926228023000

Unit Price

18
BEARING
.BEARING (20X34X18)

09263-20062-000   0926320062000

0926320062000

Unit Price

19
O RING<br />.O RING (D:3.1,ID:63.9)
O RING
.O RING (D:3.1, ID:63.9)

09280-64003-000   0928064003000

0928064003000

Unit Price

20
OIL SEAL
.OIL SEAL (45.5X58X7)

09283-47002-000   0928347002000

0928347002000

Unit Price

21
GEAR, FINAL DRIVEN BEVEL
.GEAR, FINAL DRIVEN

27320-48G00-000   2732048G00000

2732048G00000

Unit Price

22
SHIM SET, FINAL DRIVEN GEAR, R
.SHIM SET, FINAL DRIVEN

27326-48811-000   2732648811000

2732648811000

Unit Price

23
..SHIM (40X46.8X0.95)

09181-40011-000   0918140011000

0918140011000

Unit Price

24
..SHIM (40X46.8X1.05)

09181-40013-000   0918140013000

0918140013000

Unit Price

25
..SHIM (40X46.8X1.1)

09181-40014-000   0918140014000

0918140014000

Unit Price

26
..SHIM (40X50X1.2)

09181-40176-000   0918140176000

0918140176000

Unit Price

27
..SHIM (40X50X1.4)

09181-40182-000   0918140182000

0918140182000

Unit Price

28
..SHIM (40X50X1.5)

09181-40212-000   0918140212000

0918140212000

Unit Price

29
BEARING
.BEARING (85X130X14)

09262-85001-000   0926285001000

0926285001000

Unit Price

30
BEARING
.BEARING (40X50X20)

09263-40016-000   0926340016000

0926340016000

Unit Price

31
SEAL, OIL
.OIL SEAL (38X46X6)

09283-38026-000   0928338026000

0928338026000

Unit Price

32
SEAL, OIL
.OIL SEAL (85X110X11)

09289-85001-000   0928985001000

0928985001000

Unit Price

33
DISCONTINUE
.CASE, FINAL GEAR

27450-48G70-13L   2745048G7013L

2745048G7013L
Not available
34
.CASE, FINAL GEAR BEARING

27461-38B00-000   2746138B00000

2746138B00000

Unit Price

35
GASKET,13.8X18.8X0.4<br />.GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
.GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

36
.PLUG
.PLUG

09247-14002-000   0924714002000

0924714002000

Unit Price

37
.PLUG

09259-30007-000   0925930007000

0925930007000

Unit Price

38
O RING
.O RING (D:3.1, ID:26.4)

09280-26006-000   0928026006000

0928026006000

Unit Price

39
.BOLT
.BOLT

01550-0825A-000   015500825A000

015500825A000

Unit Price

40
.BOLT

01550-1025A-000   015501025A000

015501025A000

Unit Price

41
CYLINDER HEAD NUT
NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

42
WASHER
WASHER

09164-10008-000   0916410008000

0916410008000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
