STEERING COLUMN (MODEL K1 E71)

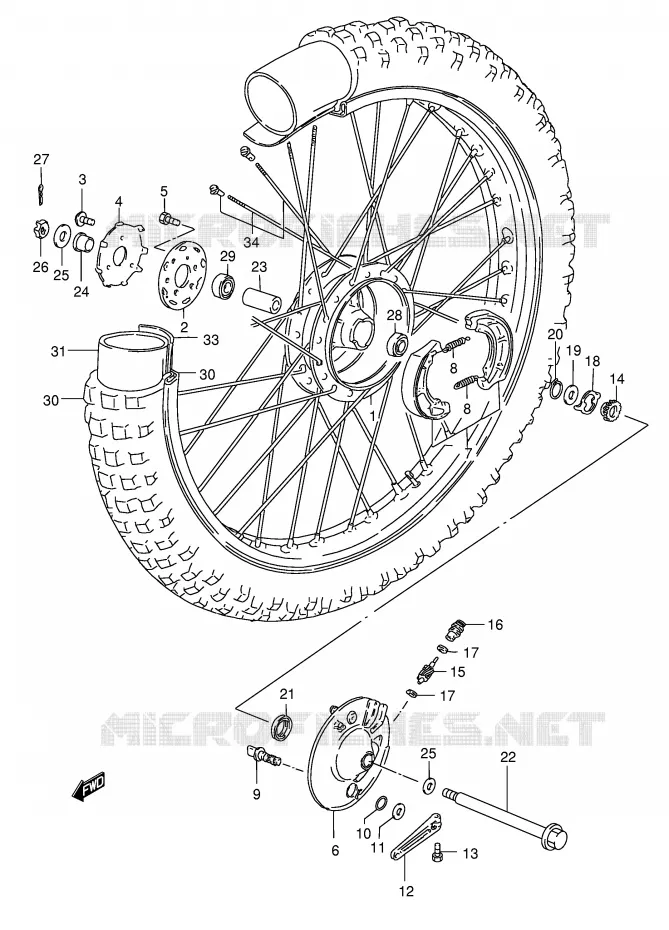

FRONT WHEEL FOR SUZUKI TS-ER 185 2000

SWINGARM (MODEL T / V / W / Y) REFER TO FIG.38A(J-4) FOR MODEL K1 E71

Item numbers

HUB, FR WHEEL
HUB, FRONT WHEEL

54110-29300-000 5411029300000

$218,97

Unit Price

FLANGE, FRONT HUB RH

54112-30500-000 5411230500000

Not available

SCREW

02122-06163-000

02122-0616B-000

$3,97

Unit Price

RETAINER, FR HUB BEARING, R
RETAINER, HUB BEARING RH

54151-30500-000 5415130500000

$13,97

Unit Price

BOLT

01570-06163-000

01570-0616A-000

$3,97

Unit Price

PANEL, FRONT BRAKE ANCHOR

54210-48502-000 5421048502000

Not available

SHOE SET, BRAKE

54400-07880-000 5440007880000

$59,97

Unit Price

SPRING

09443-07001-000 0944307001000

$3,97

Unit Price

CAM, BRAKE

54441-48502-000 5444148502000

Not available

O RING, 02.5, ID:13.8
DUST SEAL (ID:13.8, D:2.50)

09280-14011-000 0928014011000

$7,97

Unit Price

WASHER

09160-14055-000 0916014055000

$3,97

Unit Price

LEVER, FR BRAKE CAM
LEVER, BRACK CAM

54451-32401-000 5445132401000

$113,97

Unit Price

BOLT

01500-06253-000

01500-0625B-000

$3,97

Unit Price

GEAR, SPEEDOMETER
GEAR, SPEEDOMETER (NT:27)

54611-28402-000 5461128402000

$41,97

Unit Price

PINION, SPEEDOMETER
PINION, SPEEDOMETER (NT:9)

54621-28401-000 5462128401000

$25,97

Unit Price

BUSH, SPEEDOMETER PINION OUTER
BUSH, PINION OUTER

54632-02201-000 5463202201000

$18,97

Unit Price

WASHER, 5.1X9X0.4

09160-05001-000

09160-05001-A05

$2,97

Unit Price

DRIVER, SPEEDOMETER GEAR
DRIVER, METER GEAR

54661-29300-000 5466129300000

$6,97

Unit Price

WASHER(18.5X24X1)
THRUST WASHER (18.5X24X1)

09160-18002-000 0916018002000

$2,97

Unit Price

CIRCLIP

08331-31186-000

08331-3118A-000

$3,97

Unit Price

SEAL, OIL(43X58X7)

09285-43001-000

09283-43004-000

$19,97

Unit Price

AXLE, FR
AXLE, FRONT

54711-16504-000 5471116504000

$53,97

Unit Price

SPACER (12.5X19X52)

09180-12144-000 0918012144000

$16,97

Unit Price

SPACER, FR AXLE, R
SPACER, RH (12.2X19X18.5)

54741-41100-000 5474141100000

$20,97

Unit Price

WASHER

08322-01123-000

08322-0112B-000

$3,97

Unit Price

NUT

09141-12004-000 0914112004000

$7,97

Unit Price

04111-30308-000

04111-3030A-000

$2,97

Unit Price

BEARING

08143-62017-000

08143-6201B-000

$19,97

Unit Price

B. BEARING 12X32X10
BEARING, RH

08133-62017-000 0813362017000

$26,97

Unit Price

DISCONTINUE
TIRE, FRONT (2.75-21) IRC

55100-48500-000 5510048500000

Not available

TUBE

55200-16510-000

55200-16511-000

$76,97

Unit Price

PROTECTOR, WHEEL INNER
PROTECTOR, INNER TUBE

55261-14540-000 5526114540000

$6,97

Unit Price

RIM, FR WHEEL(1.60X21)
RIM, FRONT WHEEL (1.60X21)

55311-48020-000 5531148020000

$291,97

Unit Price

SPOKE SET, FR
SPOKE SET, FRONT WHEEL

55320-29300-000 5532029300000

$87,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
