OIL PUMP

CLUTCH FOR SUZUKI DR 200 1988

TRANSMISSION

GEAR ASSY, PRIMARY DRIVEN

21200-42A02-000 2120042A02000

Not available

DISCONTINUED

09180-20010-000 0918020010000

Not available

WASHER

08211-20353-000 0821120353000

$5,97

Unit Price

HUB, CLUTCH SLEEVE

21411-42A01-000

21411-42A02-000

$80,97

Unit Price

SPR MOUNT DRUM NUT

09140-16014-000

09140-16005-000

$5,97

Unit Price

WASHER, CL SLEEVE HU
LOCK WASHER

09169-16003-000 0916916003000

$3,97

Unit Price

WASHER

08211-20352-000 0821120352000

$4,97

Unit Price

PLATE, CLUTCH DRIVE

21441-19A00-000

21441-25C01-000

$24,97

Unit Price

PLATE, CLUTCH DRIVE(T:3.0)

21441-13A00-000

21441-13A01-000

$20,97

Unit Price

PLATE, CLUTCH DRIVEN
PLATE, DRIVEN

21451-19A00-000 2145119A00000

$11,97

Unit Price

DISC, CL PRESSURE

21462-14102-000

21462-14130-000

$30,97

Unit Price

SPRING

09440-15021-000

Not available

BOLT, 5X16

09116-05003-000

09116-05020-000

$3,97

Unit Price

ROD, PUSH

23110-05202-000 2311005202000

Not available

DISCONTINUED

23121-42A00-000 2312142A00000

Not available

CAMSHAFT, CLUTCH RELEASE
CAM SHAFT

23122-05200-000 2312205200000

$50,97

Unit Price

WASHER, CL RLSE CAM S

08211-10201-000

09181-10195-000

$3,97

Unit Price

WASHER

09160-15015-000

09160-15045-000

$6,97

Unit Price

BEARING(15X28X2)
THRUST BEARING (15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

OIL SEAL 10X20X6

09282-10007-000

09282-10012-000

$12,97

Unit Price

SCREW

09134-06010-000 0913406010000

$5,97

Unit Price

NUT

08310-22067-000

08310-00067-000

$2,97

Unit Price

ARM, CLUTCH RELEASE

23271-46000-000

23271-46010-000

$29,97

Unit Price

BOLT

01107-06167-000

01500-06167-000

$3,97

Unit Price

SCREW

02142-06108-000

02142-06107-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

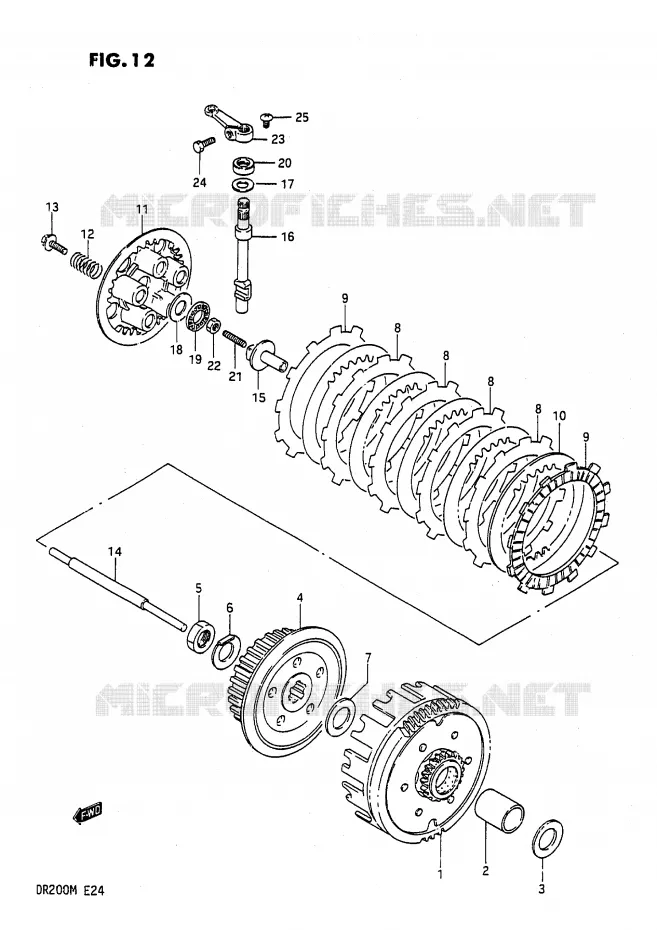

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of DR. Let us know if you have any questions.
