HEADLIGHT COVER

REAR FENDER FOR SUZUKI DR 200 1997

LABEL

Item numbers

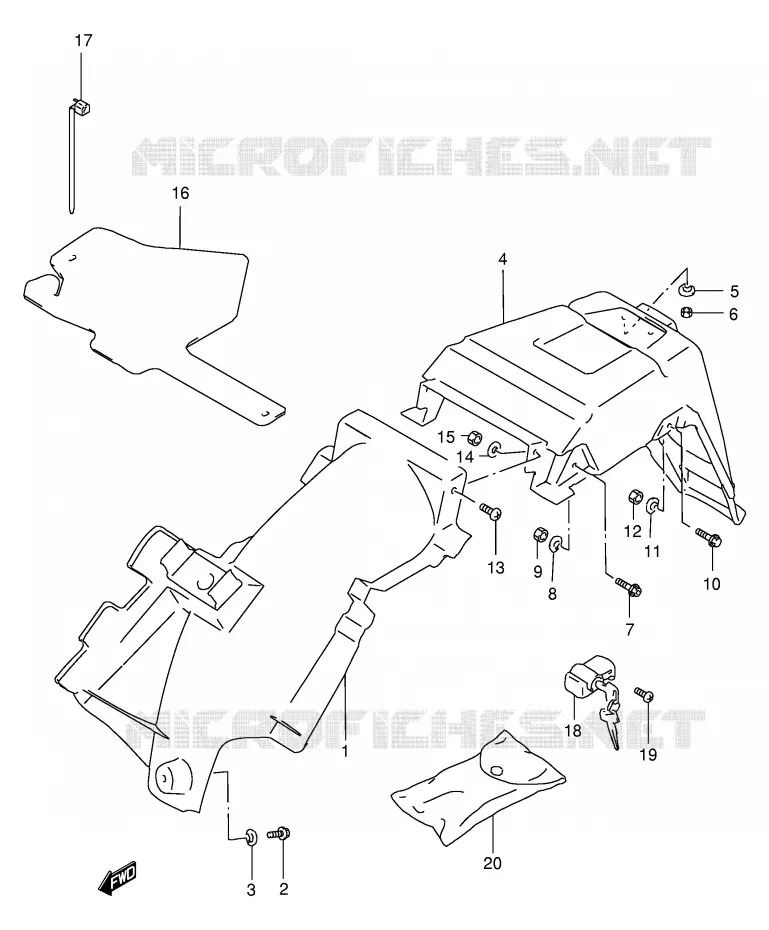

REAR FENDER Suzuki MOTO 200 DR 1997 DR200SEV(E24)

1

BODY, REAR FENDER FR

63110-44AA0-000 6311044AA0000

Not available

2

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

3

CHAIN CASE WASHER
WASHER

09169-06010-000 0916906010000

$4,97

Unit Price

4

BODY ASSY, REAR FENDER RR (WHITE)

63100-44AB0-30H 6310044AB030H

Not available

4

63100-44AG0-30H
BODY ASSY, REAR FENDER RR (WHITE)

63100-44AC0-30H 6310044AC030H

Not available

5

WASHER

09169-06045-000 0916906045000

$2,97

Unit Price

6

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

7

BOLT

09106-08120-000

09106-08151-000

$4,97

Unit Price

8

WASHER

09169-08037-000

Not available

9

NUT

08310-00083-000

08310-0008B-000

$3,97

Unit Price

10

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

11

WASHER

09169-06045-000 0916906045000

$2,97

Unit Price

12

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

13

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

14

WASHER(6.5X18X1.6)

09160-06006-000

09160-06084-000

$2,97

Unit Price

15

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

16

MUDFLAP, RR FENDER FR
MUD FLAP, REAR FENDER FR

63411-44AA0-000 6341144AA0000

$47,97

Unit Price

17

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

18

LOCK SET, HELMET

95700-44810-000 9570044810000

Not available

19

SCREW

09139-06089-000 0913906089000

$4,97

Unit Price

20

TOOL ASSY

09800-21022-000

09800-21104-000

$58,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FENDER of your Suzuki of DR. Let us know if you have any questions.
