Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI DR 200 2001

FOOTREST

Item numbers

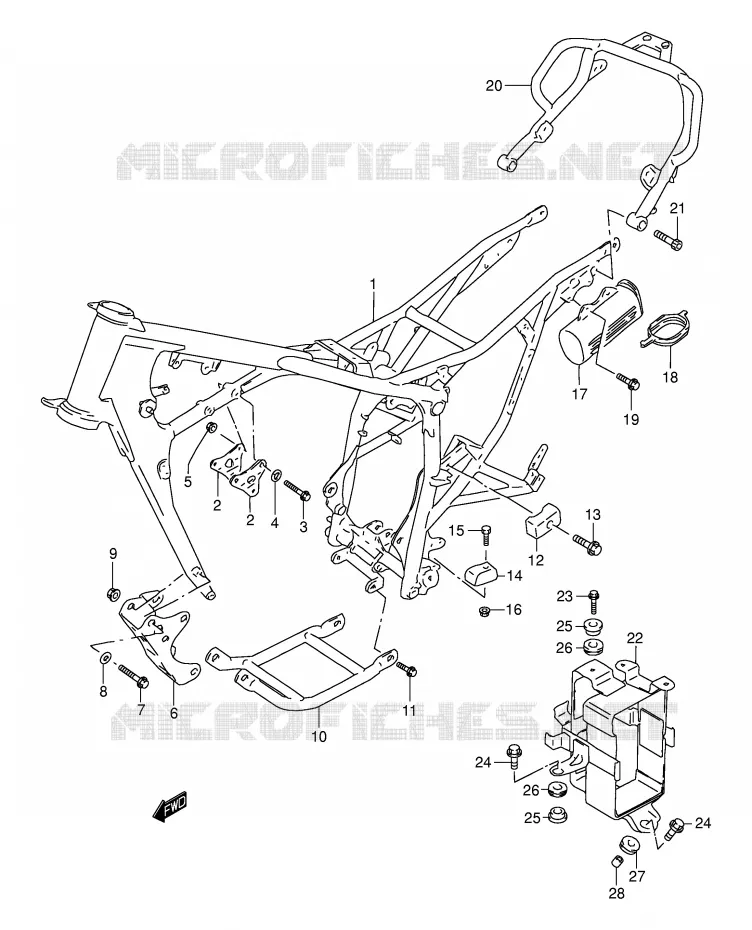

FRAME Suzuki MOTO 200 DR 2001 DR200SEK1(E3/E28)
1
1
1
1
1
1
1
1
2
2
3
4
5
6
6
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
20
20
21
22
23
24
24
25
25
26
26
27
28
1
DISCONTINUE
FRAME (GRAY)

41100-44AB0-17U   4110044AB017U

4110044AB017U
Not available
1
DISCONTINUE
FRAME (CHARCOAL)

41100-44AB0-24K   4110044AB024K

4110044AB024K
Not available
1
FRAME (GRAY)

41100-44AB0-YU8   4110044AB0YU8

4110044AB0YU8
Not available
1
DISCONTINUE
FRAME (GRAY)

41100-44AB1-YU8   4110044AB1YU8

4110044AB1YU8
Not available
1
FRAME (GRAY)

41100-44AD0-17U   4110044AD017U

4110044AD017U
Not available
1
FRAME (CHARCOAL)

41100-44AD0-24K   4110044AD024K

4110044AD024K
Not available
1
FRAME (GRAY)

41100-44AD0-YU8   4110044AD0YU8

4110044AD0YU8
Not available
1
FRAME (GRAY)

41100-44AD1-YU8   4110044AD1YU8

4110044AD1YU8
Not available
2
PLATE, ENGINE MOUNT UPR
PLATE, MOUNT, UPPER (BLACK)

41991-42A00-291   4199142A00291

4199142A00291

Unit Price

3
BOLT
BOLT (8X53)

09103-08332-000   0910308332000

0910308332000

Unit Price

4
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

5
NUT

08319-31083-000  

08319-3108A-000
 0831931083000

Unit Price

6
PLATE, ENG MTG LWR
PLATE, MOUNT LOWER (GRAY)

41992-44AA1-YU8   4199244AA1YU8

4199244AA1YU8

Unit Price

6
DISCONTINUE
PLATE, MOUNT LOWER (GRAY)

41992-44AA1-17U   4199244AA117U

4199244AA117U
Not available
6
DISCONTINUE
PLATE, MOUNT LOWER (CHARCOAL)

41992-44AA1-24K   4199244AA124K

4199244AA124K
Not available
7
BOLT (8X65)

09103-08328-000   0910308328000

0910308328000
Not available
8
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

9
NUT

08319-31083-000  

08319-3108A-000
 0831931083000

Unit Price

10
42510-44AA1-17U
PROTECTOR, ENGINE (GRAY)

42510-44AA0-17U   4251044AA017U

4251044AA017U
Not available
10
DISCONTINUE
PROTECTOR, ENGINE (CHARCOAL)

42510-44AA0-24K   4251044AA024K

4251044AA024K
Not available
10
DISCONTINUE
PROTECTOR, ENGINE (GRAY)

42510-44AA0-YU8   4251044AA0YU8

4251044AA0YU8
Not available
11
BOLT

01551-10163-000   0155110163000

0155110163000
Not available
12
GUIDE, CH CONTROL UPR

43911-44A00-000  

43911-44A01-000
 4391144A00000

Unit Price

13
BOLT

01580-06353-000  

01580-0635B-000
 0158006353000

Unit Price

14
GUIDE, CHAIN CONTROL LWR
GUIDE, CHAIN LOWER

43912-42AA0-000   4391242AA0000

4391242AA0000

Unit Price

15
BOLT,6X20<br />BOLT, STARTING MOTOR (6X20)
BOLT, 6X20
BOLT, STARTING MOTOR (6X20)

09128-06006-000   0912806006000

0912806006000

Unit Price

16
NUT

08319-31063-000  

08319-3106A-000
 0831931063000

Unit Price

17
HOLDER, TOOL

41551-38200-000   4155138200000

4155138200000
Not available
18
CAP, HOLDER
CAP, TOOL HOLDER

41552-37210-000   4155237210000

4155237210000

Unit Price

19
BOLT
BOLT (6X16)

09116-06165-000   0911606165000

0911606165000

Unit Price

20
DISCONTINUE
GRIP, REAR (GRAY)

43980-44AB2-17U   4398044AB217U

4398044AB217U
Not available
20
DISCONTINUE
GRIP, REAR (CHARCOAL)

43980-44AB2-24K   4398044AB224K

4398044AB224K
Not available
20
DISCONTINUE
GRIP, REAR (GRAY)

43980-44AB2-YU8   4398044AB2YU8

4398044AB2YU8
Not available
21
BOLT
BOLT (8X30)

09106-08105-000   0910608105000

0910608105000

Unit Price

22
HOLDER, BATTERY

41540-44AA0-000   4154044AA0000

4154044AA0000

Unit Price

23
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

24
BOLT(6X25)<br />BOLT, LOWER
BOLT(6X25)
BOLT, LOWER

09116-06131-000   0911606131000

0911606131000

Unit Price

25
WASHER
SPACER

09169-06065-000   0916906065000

0916906065000

Unit Price

26
CUSHION (8.5X20X8)
CUSHION (8.5X20X8)

09320-08021-000  

09320-08510-000
 0932008021000

Unit Price

27
CUSHION<br />CUSHION, LOWER LH
CUSHION
CUSHION, LOWER LH

09320-10501-000   0932010501000

0932010501000

Unit Price

28
SPACER(6.5X10X9)<br />SPACER, LOWER LH
SPACER(6.5X10X9)
SPACER, LOWER LH

09180-06285-000   0918006285000

0918006285000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 2001

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 200 DR 2001

Select your Suzuki 2001 model

200 DR 2001 DR200SEK1(E3/E28)
200 DR 2001 DR200SEK1(E3/E28)

Suzuki DR

Displacement: 200 cc
Year: 2001
Model code DR200SEK1(E3 / E28)
