KNUCKLE COVERS (OPTION) COLOR : N9J = YC2(BLUE),30H(WHITE)

SEAT (MODEL K1) FOR SUZUKI DR 200 2002

SEAT (MODEL K2 / K3 / K4) REFER TO FIG.39B(F- 7) FOR MODEL K5

Item numbers

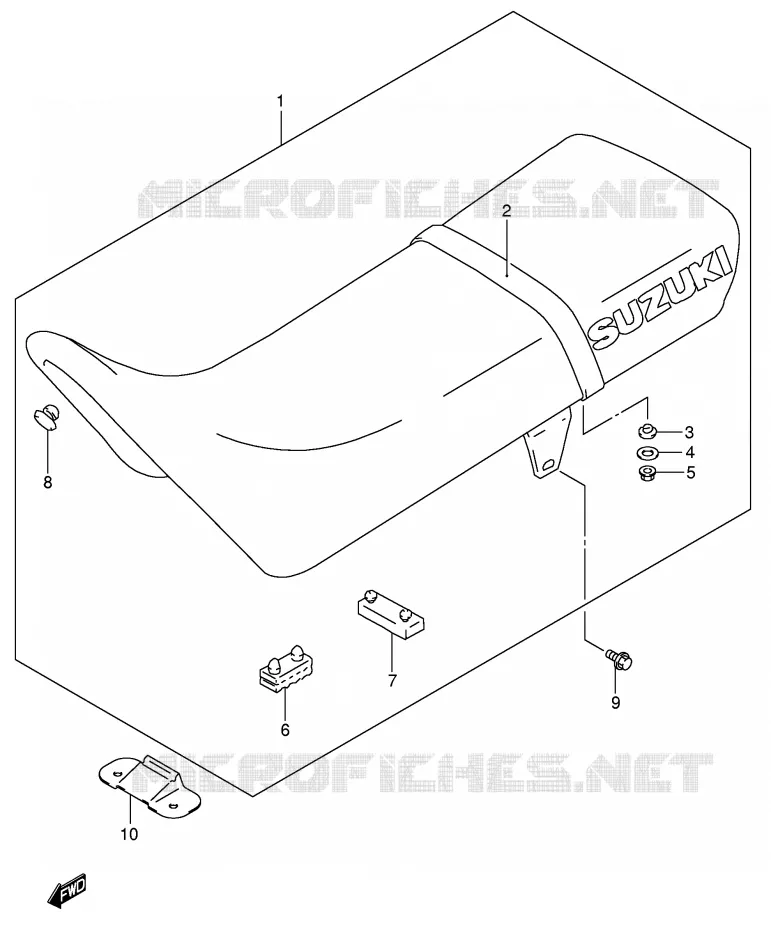

SEAT (MODEL K1) Suzuki MOTO 200 DR 2002 DR200SEK2(E3/E28)
1
2
3
4
5
6
7
8
9
10
1
DISCONTINUE
SEAT SET (SEAT BLACK/BLUE)

45100-42AC0-N9K   4510042AC0N9K

4510042AC0N9K
Not available
2
DISCONTINUE
BAND, SEAT (BLACK)

45180-42AA0-P21   4518042AA0P21

4518042AA0P21
Not available
3
WASHER
WASHER

09169-06071-000   0916906071000

0916906071000

Unit Price

4
WASHER,THRUST<br />THRUST WASHER
WASHER, THRUST
THRUST WASHER

08212-06201-000   0821206201000

0821206201000

Unit Price

5
NUT

08316-20063-000  

08316-10067-000
 0831620063000

Unit Price

6
CUSHION,SEAT(40X20X15)<br />CUSHION
CUSHION, SEAT(40X20X15)
CUSHION

45149-31300-000   4514931300000

4514931300000

Unit Price

7
CUSHION, SEAT
CUSHION

45149-43500-000   4514943500000

4514943500000

Unit Price

8
CUSHION
CUSHION

09329-10001-000   0932910001000

0932910001000

Unit Price

9
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

10
PLATE, SEAT FR HOOK
PLATE, SEAT FRONT HOOK

45119-42A00-000   4511942A00000

4511942A00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT (MODEL K1) of your Suzuki of DR. Let us know if you have any questions.
