STEERING COLUMN (MODEL K2 / K3 / K4 / K5 E06,E24)

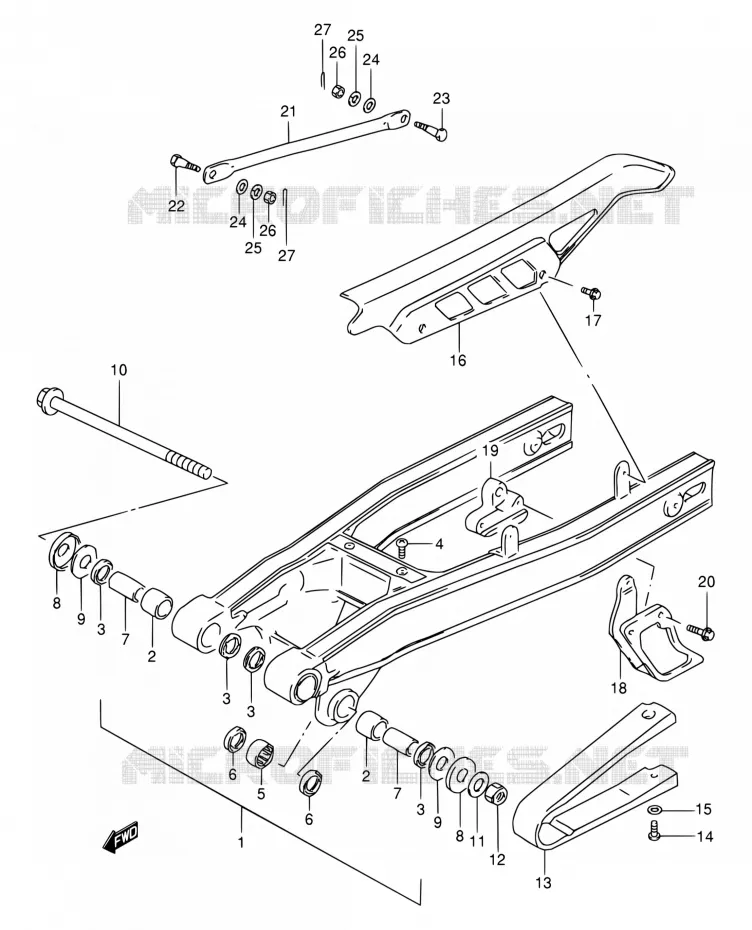

REAR SWINGARM (MODEL K1 / MODEL K2 P09) FOR SUZUKI DR 200 2003

REAR SWINGARM (MODEL K2 / K3 / K4 / K5 E06,E24)

Item numbers

DISCONTINUE
SWINGING ARM SET, REAR

61100-42840-000 6110042840000

Not available

BUSHING, RR SWGARM PIVOT
.BUSHING, PIVOT

61261-13700-000 6126113700000

$18,97

Unit Price

KK SHAFT OIL SEAL
.OIL SEAL (20X27X5)

09283-20031-000 0928320031000

$8,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

BEARING
.BEARING (20X27X25)

09263-20053-000 0926320053000

$31,97

Unit Price

SEAL, CUSHION LEVER OUT DUST
.SEAL, DUST (20X27X4)

62647-44A00-000 6264744A00000

$8,97

Unit Price

SPACER, RR SWGARM PVT
SPACER, PIVOT

61251-42A00-000 6125142A00000

$22,97

Unit Price

SEAL, DUST

61262-40400-000

61262-40401-000

$12,97

Unit Price

WASHER
THRUST WASHER

08211-14322-000 0821114322000

$4,97

Unit Price

SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-26B01-000 6121126B01000

$39,97

Unit Price

WASHER (14.5X24X2.3)

09160-14057-000 0916014057000

$4,97

Unit Price

NUT 14MM
NUT

09159-14019-000 0915914019000

$19,97

Unit Price

BUFFER, CHAIN TOUCH DEFENSE

61273-42A01-000 6127342A01000

$37,97

Unit Price

SCREW

02142-06203-000

02142-0620B-000

$2,97

Unit Price

LOCK WASHER

09169-06037-000

09169-06011-000

$9,97

Unit Price

CASE, CHAIN

61311-01A03-000 6131101A03000

$63,97

Unit Price

BOLT
BOLT (6X10)

09116-06096-000 0911606096000

$3,97

Unit Price

GUIDE, CHAIN

61341-13A00-000

61341-13A10-000

$39,97

Unit Price

RUBBER, CHAIN GUIDE

61345-42A00-000

61345-42A01-000

$19,97

Unit Price

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

TORQUE LINK, REAR

64311-42A00-000 6431142A00000

Not available

09119-08088
BOLT, TORQUE LINK FRONT

64321-42A00-000 6432142A00000

Not available

R TORQUE LINK BOLT
BOLT (8X26.5)

09111-08013-000 0911108013000

$4,97

Unit Price

08322-0108A
WASHER

08322-01083-000

Not available

WASHER, CHAIN ADJUSTE
WASHER

09162-08008-000 0916208008000

$3,97

Unit Price

NUT 8MM
NUT

09140-08008-000 0914008008000

$2,97

Unit Price

04111-20208-000

04111-2020A-000

$1,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR SWINGARM (MODEL K1/MODEL K2 P09) of your Suzuki of DR. Let us know if you have any questions.
